Product Details:
Payment & Shipping Terms:
|
| Output Signals: | 4~20mA, I2C, SPI, 0.5-4.5V And Others | Pressure Range: | 0-60MPa |
|---|---|---|---|
| Accuracy: | ±0.5%FS, ±1%FS, ±2%FS | Pressure Type: | Gauge, Absolute, Negative Pressure |
| Overload: | 2 Times Full Span | Proof Pressure: | 3 Times Full Span |
| Housing: | SS304, SS316, Brass | Waterproof: | IP67 |
| Respond Time: | ≥1ms | OEM: | OEM, ODM, Customization |
| Operation Temperature: | -40~150 Deg C | ||
| High Light: | piezoresistive pressure sensor,mini pressure sensor |
||

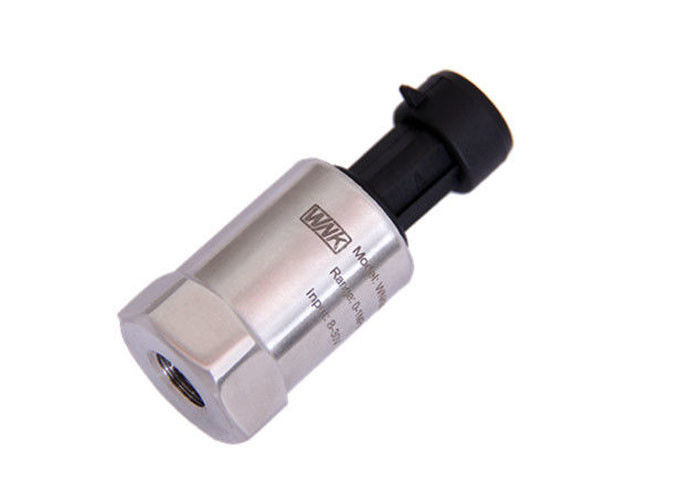

4~20mA Air Pressure Sensor with 7/16-20UNF deflector For Refregeration
WNK80MA is a high quality ceramic capacitive pressure sensor. Its operation temperature is -40~150℃, with various outputs of I2C, SPI, 0.2-2.9v, 4~20mA, 0.5-4.5V. To ensure sealing of Freon and other media, WNK80MA is designed with 7/16-20UNF deflector. WNK80MA supports housing material of SS304, SS316 or brass. It has accuracy options of 0.5%FS and 1%FS.
It can be widely applied to domestic drinking water system, air-conditioning, machinery and refrigeration plant engineering, hydraulic and pneumatic systems, process industries and environmental technology.
Features :
Detailed Technical Info:
| High Performance Miniature Pressure Sensor | ||||
| Pressure range | 0~600BAR | |||
| Pressure type | Gauge, Absolute, Sealing gauge | |||
| Overpressure | 300%F.S. (≤70kPa) 200%F.S.(≤25MPa) | |||
| Output signals | 4~20mA, SPI, I2C, 0.5-4.5V, 1-5V, 0-5V and others | |||
| Accuracy | ±0.5%FS (Typical value) | |||
| Compensation Temp. | -20~85℃ | |||
| Operation Temp. | -40~125℃ | |||
| Storage Temp. | -40~125℃ | |||
| Zero Temp. Drift | ±1.5%FS Max (-20~85℃) | |||
| Full Scale Temp. Drift | ±1.5%FS Max (-20~85℃) | |||
| Pressure Connection | 7/16-20UNF deflector and others | |||
| Ingress Protection | IP65 | |||
| Housing | SS316, SS304, brass | |||
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
