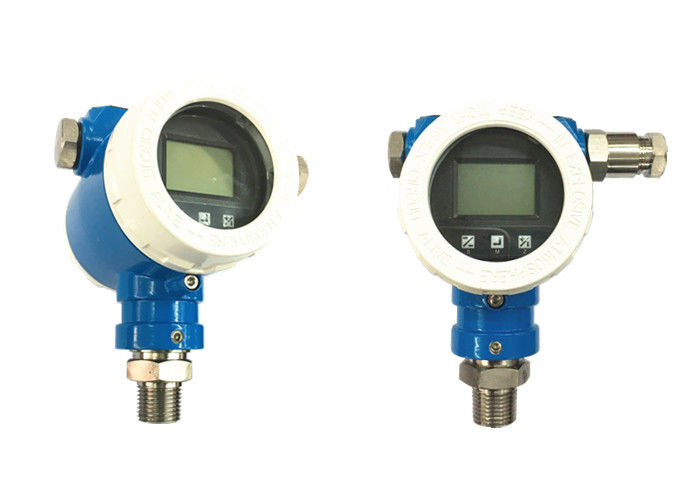

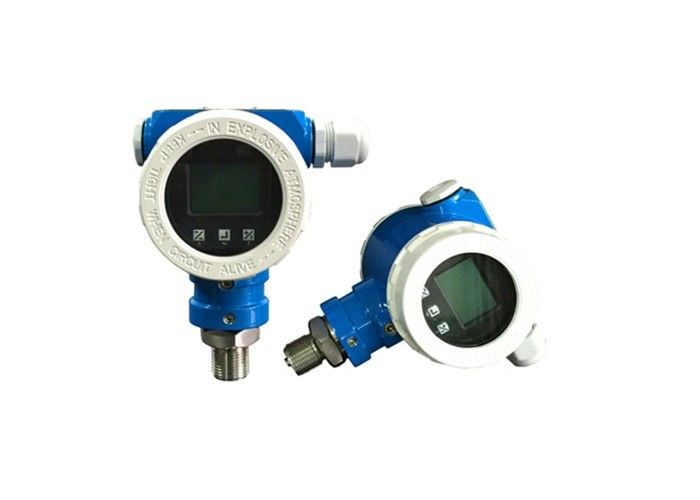

WNK4S Smart Pressure Transmitter with 4-20mA RS485 Output , Liquid Level Sensor

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

WNK4S Smart Pressure Transmitter with 4-20mA RS485 Output , Liquid Level Sensor

WNK4S Smart Pressure Transmitter with 4-20mA RS485 Output , Liquid Level Sensor
WNK4S Smart Pressure Transmitter with 4-20mA RS485 Output , Liquid Level Sensor WNK4S Smart Pressure Transmitter with 4-20mA RS485 Output , Liquid Level Sensor WNK4S Smart Pressure Transmitter with 4-20mA RS485 Output , Liquid Level Sensor WNK4S Smart Pressure Transmitter with 4-20mA RS485 Output , Liquid Level Sensor

Large Image :  WNK4S Smart Pressure Transmitter with 4-20mA RS485 Output , Liquid Level Sensor

Product Details:
Place of Origin: ANHUI, CHINA
Brand Name: WNK
Certification: CE, ISO
Model Number: WNK4S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: standard export carton packing
Delivery Time: 3~5 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200 set/day
Detailed Product Description
Measure Media: Liquid, Gas And Steam Output Signals: 4~20mA, Modbus-RS485
Accuracy: 0.2% Pressure Range: -100KPa~70MPa
Protection Class: IP66/67 Housing Material: Aluminium
Power Supply: 10.5~30V DC Exoplosion Proof: ExiaIICT4, ExiaIICT6, ExdIICT6
Application: Pressure Measurement Sensor Adopted: Oil Filled Diffused Silicon Pressure Sensor
High Light:

smart type pressure transmitter

,

digital pressure transmitter

Intelligent 4-20mA Diffused Silicon Smart Pressure Transmitter with 2" Mounting Bracket for Industrial Filed





WNK4 series pressure transmitter is the cost effective pressure transmitters provided by Hefei WNK Smart Technology  Co., Ltd. It transforms the physical signal of pressure, differential pressure and level etc into standard signal, by collecting cell sensor and digital processing circuit.



WNK4 series has the best precision and signal uniformity by applying advanced specified integrated circuit digital technology. Each set of transmitter is ambient temperature compensated in our factory, to ensure max precision and mini drift in wide working temperature range.



Product application
1. Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement.

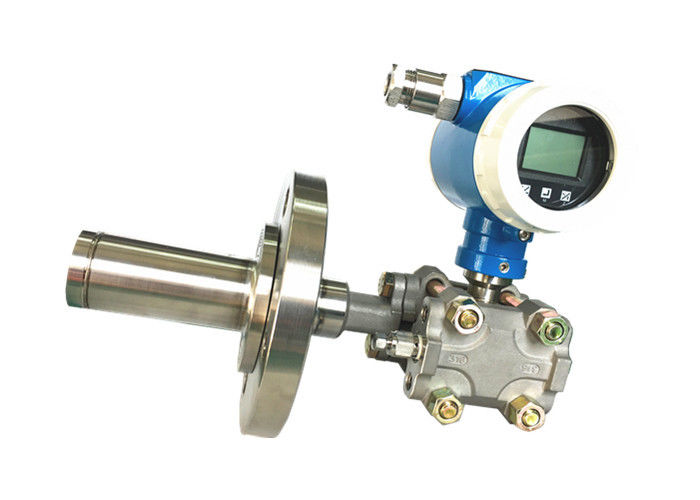

2. Level, volume or mass measurement in liquids.
3. Working with detecting element, measure the flow of gases, steam and liquid flow.( volume and mass flow)

4. High pressure up to 700bar.



Product feature
1. reference accuracy up to 0.2%.
2. Long-term stability
3. Intrinsically safe and flameproof explosion proof
4. Range down ratio 100:1
5. With Modbus communication protocol



Technical data

Measured media liquid, gas and steam
Pressure range -100KPa~70MPa
Output signals 4~20mA, Modbus-RS485, 1-5V
Accuracy 0.2%
Stability ±0.3% of URL for 5 years
Temperature drift ±0.05% of URL/10ºC
Display LCD, or pointer optional
Housing material Aluminum14
Process connection M20×1.5;G1/2;1/2NPT; flush diaphragm
Protection class IP66/67
Power Supply 10.5-55V DC 10.5-30V DC
Ambient temperature -40 to 85ºC,-40 to 80ºCfor LCD header
Storage temperature -45 to 85ºC,-40 to 80ºC for LCD header ;

Dimension

with display: 84*1110*52 (mm)
Net Weight 1.1kg (without bracket or process connection)





Installation diagram

WNK4S Smart Pressure Transmitter with 4-20mA RS485 Output , Liquid Level Sensor 0

WNK4S Smart Pressure Transmitter with 4-20mA RS485 Output , Liquid Level Sensor 1

Ordering sheet

WNK4S Smart Pressure Transmitter with 4-20mA RS485 Output , Liquid Level Sensor 2

WNK4S Smart Pressure Transmitter with 4-20mA RS485 Output , Liquid Level Sensor 3
