IP67 Protection Air Pressure Sensor I2C Output For Industrial Control

IP67 Protection Air Pressure Sensor I2C Output For Industrial Control
IP67 Protection Air Pressure Sensor I2C Output For Industrial Control IP67 Protection Air Pressure Sensor I2C Output For Industrial Control IP67 Protection Air Pressure Sensor I2C Output For Industrial Control

Large Image :  IP67 Protection Air Pressure Sensor I2C Output For Industrial Control

Product Details:
Place of Origin: Hefei, China
Brand Name: WNK
Certification: CE, SGS, ISO9001
Model Number: WNK80MA WNK811
Payment & Shipping Terms:
Minimum Order Quantity: 4 piece
Price: Negotiation
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pcs per month
Detailed Product Description
Pressure Range: -1bar - 60Mpa Output: I2C, SPI, 0.5-4.5V, 4-20ma And Custom
Respond Time: ≥1ms Overload Pressure: 3-5 Times
Sensor Material: 316SS Medium Temperature: -40 -70C
Warranty: 1 Year Accuracy: 0.25%FS, 0.5%FS 1.0%FS
IP Protection: IP65 IP67 Pressure Type: Gauge, Absolute, Vacuum, Seal
High Light:

piezoresistive pressure sensor

,

mini pressure sensor

IP67 Protection Air Pressure Sensor Pressure Transducer For Industrial Control

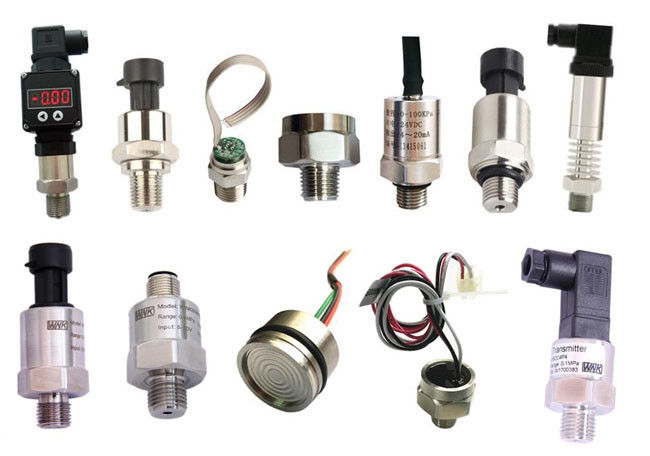

IP67 Protection Air Pressure Sensor I2C Output For Industrial Control 0
Description
WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.


Applications

- Automobile, Compressor and Refrigeration Industry

- Engineering machinery

- Pressure control and monitor

- Water treatment system

- Hydraulic and Pneumatics

- HAVC and BAS Control

- Pump, fitness equipment, household appliances

- Factory Automation

- Fluid Control and Instrumentation Systems



Features :

1. Temperature range: -20 to 85℃
2. Wide operation temperature range -40~125℃
3. High performance ceramic capacitive pressure sensor
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available
5. Small dimensions, dimension customizble
6. Optional packard, M12, Small Hirschman connectors
7. OEM, ODM, customization service available
8. Process connector: G1/4, M12*1.5, 1/4NPT, 7/16-20UNF female


Technical Data

Input
Pressure TypeGauge Pressure , Absolute Pressure, Sealing Pressure
Pressure Range-100Kpa - 60Mpa
Accuracy0.2%, 0.5%
Power Supply5VDC, 12-32VDC
Measuring MediaGas, Steam, Liquid, Oil
Output
Analog4-20mA, 0.5-4.5V / 1-5V / 0-5V
DigitalI2C, SPI
Operation Condition and Temperature
Compensation Temperature-20...75℃
Storage Temperature-45 ... 85℃
Ambient Temperature-45 ... 85℃
Medium Temperature-40 ... 125℃
Material and Protection
Ingress ProtectionIP65, IP67
Housing Material304SS, 316L



0-10Bar 100Psi Arduino Air Water Pressure Sensor


Certifications
0-10Bar 100Psi Arduino Air Water Pressure Sensor
Ordering Code
IP67 Protection Air Pressure Sensor I2C Output For Industrial Control 3


Our company
WNK has 13-year experience of research, development, production and sales of sensors. With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.
After two years of research, development and repeatedly testings, our ceramic capacitive sensors have entered big quantity production stage. For different applications and installation methods, we offer OEM, ODM and customization services.
