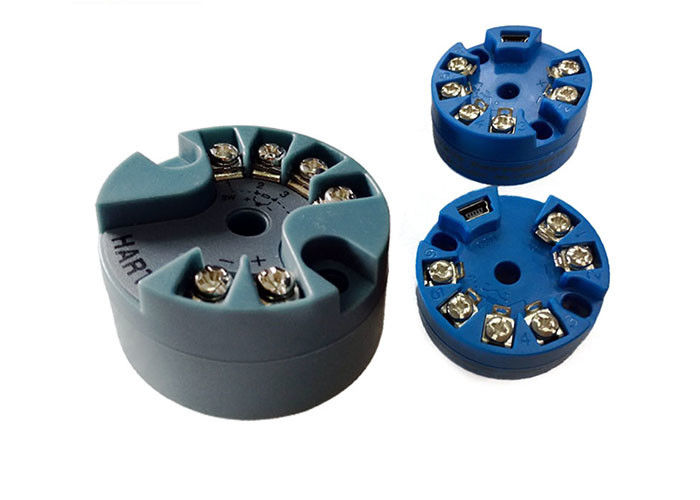

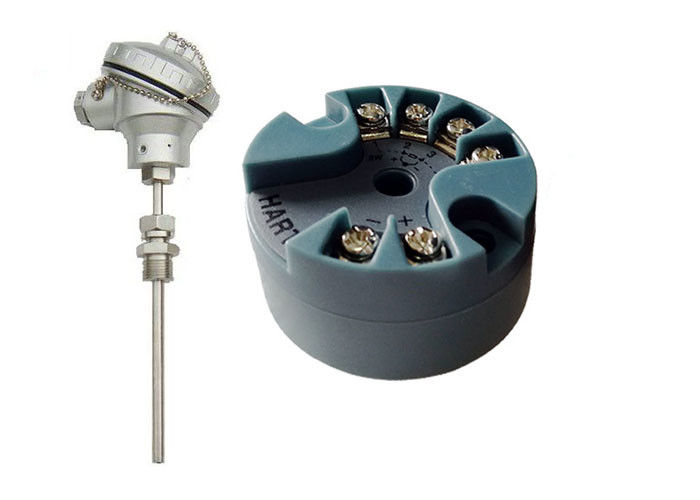

Programmable Pt100 Temperature Sensor 4~20ma Output 12-32 V Power

Programmable Pt100 Temperature Sensor 4~20ma Output 12-32 V Power
Programmable Pt100 Temperature Sensor 4~20ma Output 12-32 V Power Programmable Pt100 Temperature Sensor 4~20ma Output 12-32 V Power

Large Image :  Programmable Pt100 Temperature Sensor 4~20ma Output 12-32 V Power

Product Details:
Place of Origin: Anhui, China
Brand Name: WNK
Certification: ISO
Model Number: WNK-621
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: Standard expoort carton packing
Payment Terms: T/T, Western Union, MoneyGram
Detailed Product Description
Temperature: -40~600C Accuracy: 0.1C
Output: 4-20mA 2-wire Input: Pt100 Pt1000 RTD
Power: 12-32V Type: Head Mounted
High Light:

high accuracy temperature transmitter

,

industrial temperature transmitter

Programmable Pt100 Head Mounted Temperature Transmitter 4~20ma Output





Description

Head Mounted Temperature Transmitter 4 20ma is rigid designed for economic use. For example with saving of the galvanic insulation, which is not need for PT100. Therefore the TH100 offers economic plant operation and reliable measurements. It is an ideal substitute for over aged analogue PT100 transmitters. Setup is quick and easy with the transmitter-modem and SIPROM T. This configuration tool can be downloaded for free.




Features

Two-wire work mode
Pt100,Cu50,Cu100, Pt1000 Four thermal resistance full measurement range
K, S, R, B, N, E, J, T Eight thermocouples full range measurement
Cold end automatic compensation
Thermal resistance three-wire measurement automatically eliminating the lead resistance
Thermal resistance/ Thermocouple disconnection fault prompts and output processing;
Independent setting for temperature transmission output range
High accuracy, low temperature drift



Main Sensors Accuracy Parameters



Sensors type Sensor range Minimum range Digit accuracy D/A accuracy
2,3,4- wire thermal resistor
Cu50 -50~150 ºC 10 ºC ±0.15 ºC 0.01%
Cu100 -50~150 ºC 10 ºC ±0.15 ºC 0.01%
PT100 -200~850 ºC 10 ºC ±0.15 ºC 0.01%
PT1000 -200~850 ºC 10ºC ±0.1 ºC 0.01%
2,3,4- wire resistor
400Ω 0~400Ω 10Ω 0.01Ω 0.01%
4000Ω -0~4000Ω 10Ω 0.01Ω 0.01%
Voltage
100mV -10~100 mV 10 mV 0.01 mV 0.01%
1000mV -100~1000mV 10 mV 0.01 mV 0.01%
Thermocouple
B type 150~1820ºC 25ºC ±1.0 ºC 0.01%
E type -200~1000ºC 25ºC ±0.4 ºC 0.01%
J type - 210~1200ºC 25ºC ±0.4ºC 0.01%
K type -200~1372ºC 25ºC ±0.4ºC 0.01%
N type -200~1300ºC 25ºC ±0.4ºC 0.01%
R type 0~1768ºC 25ºC ±0.8ºC 0.01%
S type 0~1768ºC 25ºC ±0.8ºC 0.01%
T type -200~400ºC 25ºC ±0.4 ºC 0.01%





Sensor connection ports



Programmable Pt100 Temperature Sensor 4~20ma Output 12-32 V Power 0
