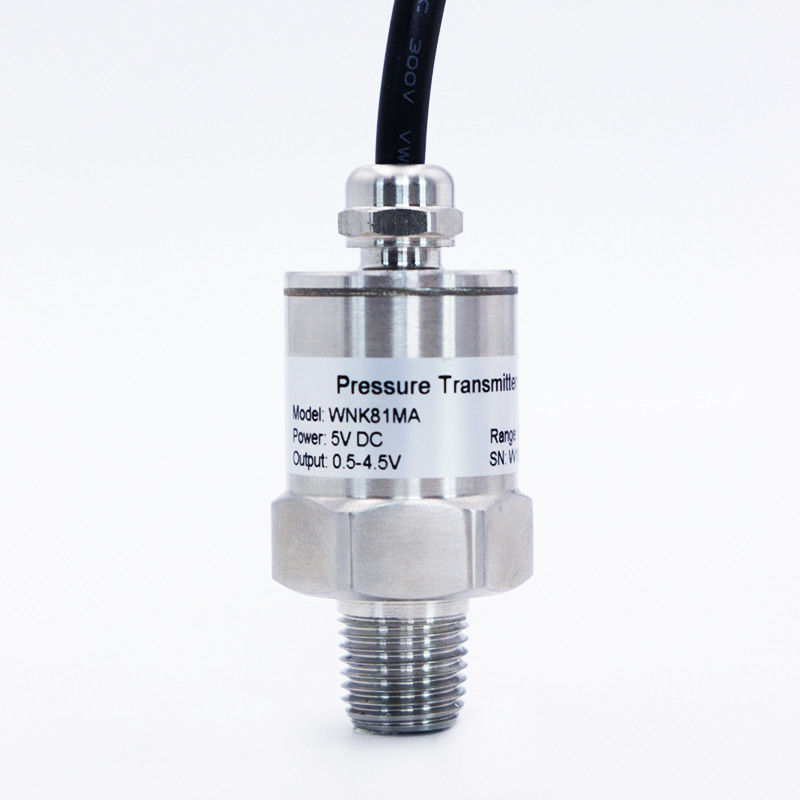

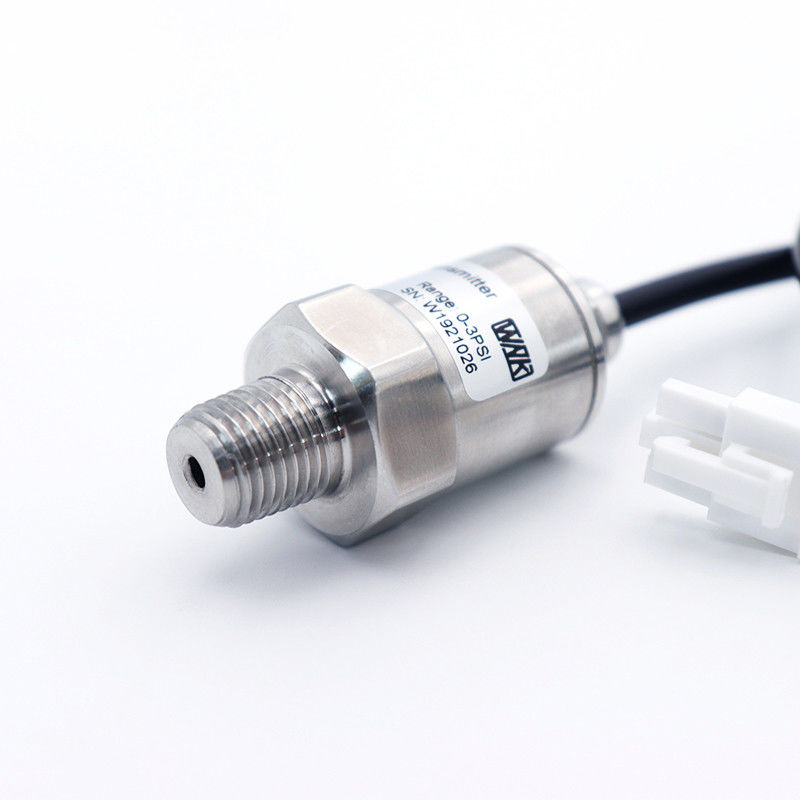

Air Compressor Water Pressure Sensor With SS304 Housing M12 Connector
WNK81MA pressure transmitter is a high stable pressure transmitter by using specific ASIC signal conditioning chip and high performance SS316L diaphragm diffused silicon pressure sensor. The internal specific ASIC integrated circuit transforms milivolt signal to standard voltage, current or frequancy signal. It can easily connect with PC interface card, controlling instruments, smart gauges or PLC. It is compact designed, light and stainless steel sealing structure, which enable it capability of working in corrosive environment.
WNK also provides high cost-effective ceramic capacitive pressure sensor. It can be applied to domestic drinking water system, air-conditioning, machinery and refrigeration plant engineering, hydraulic and pneumatic systems, process industries, environmental technology, IIOT and IOT system.
Features:
Applications:
• Pressure measurement of gas, vapor or liquid in various areas;
• Liquid level, volume or mass measurement;
• Integrated in a variety of user-defined solutions;
• Smart water and gas management system, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and etc;
Performances:
| Input | |
| Pressure type | Gauge pressure, sealing pressure, absolute pressure |
| Measuring range | -0.1~60MPa |
| Output | |
| Analog | 0.5…4.5V, 4…20mA, 1...5V, 0...10V |
| Analog | I2C, SPI |
| Accuracy | |
| 0.2% | Linearity, hysteresis, repetitiveness:＜0.2% sensor full range |
| 0.5% | Linearity, hysteresis, repetitiveness:＜0.5% sensor full range |
| Overload | |
| 2.5X pressure sensor full scale | |
| Housing Info. | |
| Housing Material | SS 304, Cu, Al |
| Wetting Material | SS316L |
| Ingress Protection | IP67 |
Power Supply
| Supply voltage | 5V 24VDCregulated power supply, |
| Supply voltage effect | 5V supply voltage effect: min.3V/max.5.5V |
Ordering info:
| Model | Product description | ||
| WNK81MA | Pressure Transmitter | ||
| CODE | Pressure Type | ||
| A | Absolute Pressure | ||
| G | Gauge pressure | ||
| S | Sealing pressure | ||
| CODE | Accuracy | ||
| 2 | 0.2%FS | ||
| 5 | 0.5%FS | ||
| CODE | Sensor range | ||
| A | 0.1bar | E | 10 bar |
| B | 0.5 bar | F | 50 bar |
| C | 1 bar | G | 100 bar |
| D | 5bar | H | 600 bar |
| Other ranges are in developing | |||
| CODE | Output | ||
| 1 | 0.5…4.5V DC | ||
| 2 | 4…20mA | ||
| 3 | I2C | ||
| 4 | SPI | ||
| 5 | 0...10V DC | ||
| 6 | 1...5V DC | ||
| X | Customization | ||
| CODE | Electrical connector | ||
| C1 | Packard | ||
| C2 | M12 | ||
| C3 | Cable outlet(pls put down cable length, such as 01 for 1 meters) | ||
| C4 | Mini DIN43650 | ||
| C5 | GX12-3 | ||
| CX | Customization | ||
| CODE | Process connector | ||
| P1 | G1/4 | P5 | M12×1.5 |
| P2 | 1/4-18NPT | P6 | 1/4-19PT |
| P3 | 1/8-27NPT | P7 | 7/16-20UF(female) |
| P4 | M14×1.5 | PX | Customization |
| Pls contact WNK for other process connectors | |||
Typical ordering code:WNK81MA GC2 C1 P1 | |||
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
