IP68 Stainless steel Dirty Water Submersible Level Sensor

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

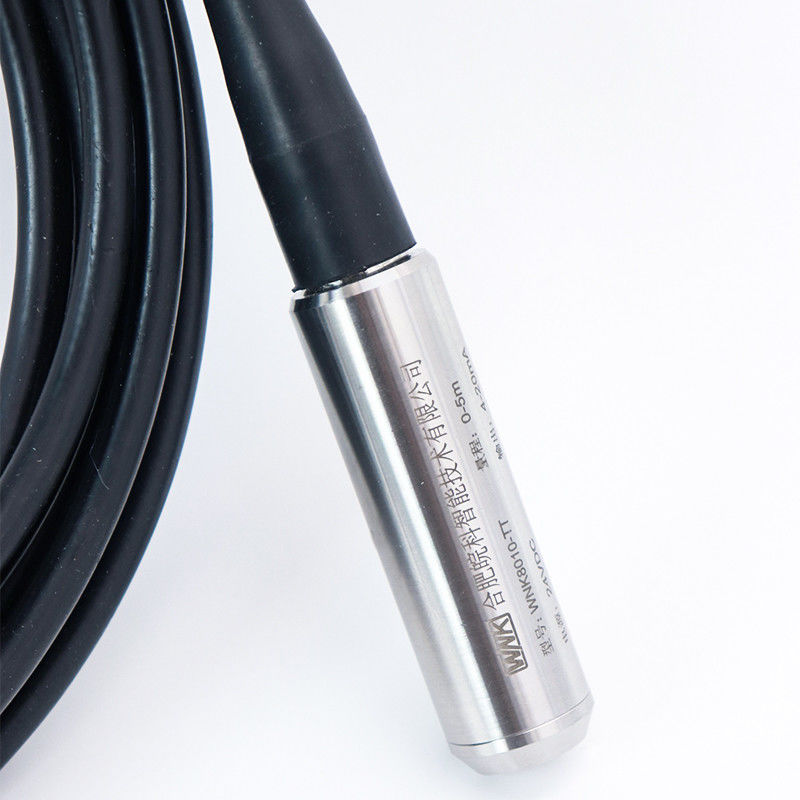

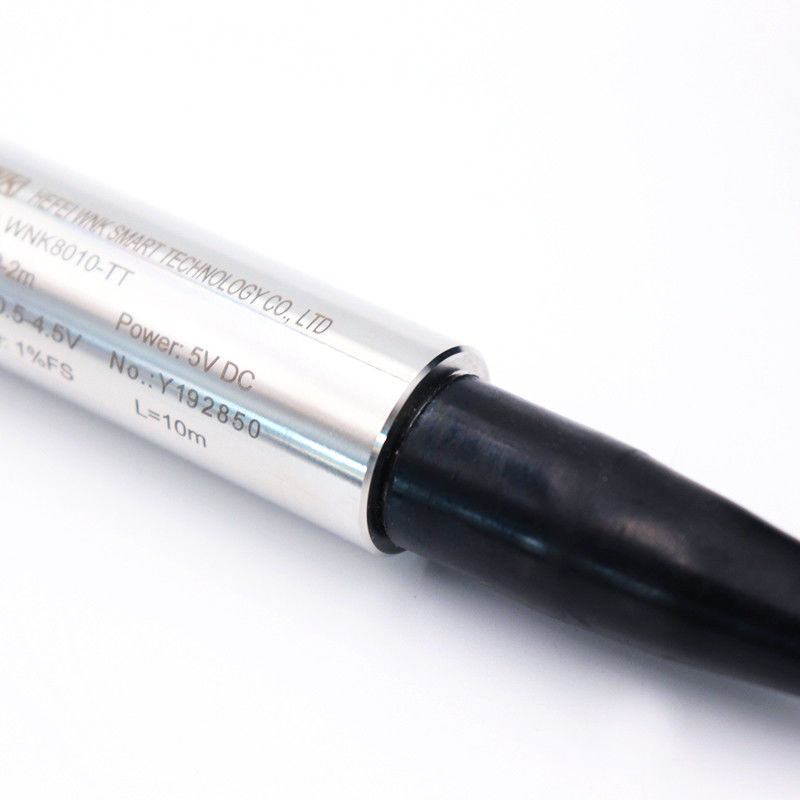

IP68 Stainless steel Dirty Water Submersible Level Sensor

IP68 Stainless steel Dirty Water Submersible Level Sensor
IP68 Stainless steel Dirty Water Submersible Level Sensor IP68 Stainless steel Dirty Water Submersible Level Sensor IP68 Stainless steel Dirty Water Submersible Level Sensor

Large Image :  IP68 Stainless steel Dirty Water Submersible Level Sensor

Product Details:
Place of Origin: China
Brand Name: WNK
Certification: CE
Model Number: WNK8010-TT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: standard export package
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 3000 pieces per month.
Detailed Product Description
Analog: 4-20mA, 1-5V, 0.5-4.5, 0-5V, 0-10V, I2C Digital: Hart, RS485 Etc
Measure Range: 0-1~200mH2O Media: Liquid, Water
Accuracy: ±0.5% FS/year, ±1% FS/year Housing Material: Stainless Steel
Power Supply: 24V/12V/5V/3.3V Protection: IP68
High Light:

Dirty Water Submersible Level Sensor

,

IP68 Submersible Level Sensor

,

Stainless steel Submersible Level Sensor

Dirty Water Level Sensor Level Measurement Level Sensor For Liquid

Product Description
1. Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element.
2. This product comes with compact profile, easy to install,it can measure the level height directly when through into the liquor.


Output signals
Output 4-20mA, 0-10mA, 0-5V, 1-5V,Customization
Measured range
Measured range 0-0.5~200mH2O
Max overload 150% of sensor range
Parameters
Applicable media Liquid, Water
Accuracy ±1% FS/year, ±0.5% FS/year
Stability ±0.25% FS/year
Housing material Stainless steel
Cable material Polyvinyl Fluoride, PTFE
Power supply 24V DC
Ambient temperature -20~85
Process temperature -20~85
Compensation temperature -20~85℃
Protection class IP68

IP68 Stainless steel Dirty Water Submersible Level Sensor 0IP68 Stainless steel Dirty Water Submersible Level Sensor 1




Packaging & Shipping

4-20mA Industrial Liquid Water Piezo Hydraulic Pressure Sensor


Company Information
IP68 Stainless steel Dirty Water Submersible Level Sensor 3






FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: What is yor MOQ?
A: We have no MOQ limits,1 pc for testing is acceptable.
