1000kPa Electronic 1/4G Cable 15mA Atmospheric Air Pressure Sensor

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

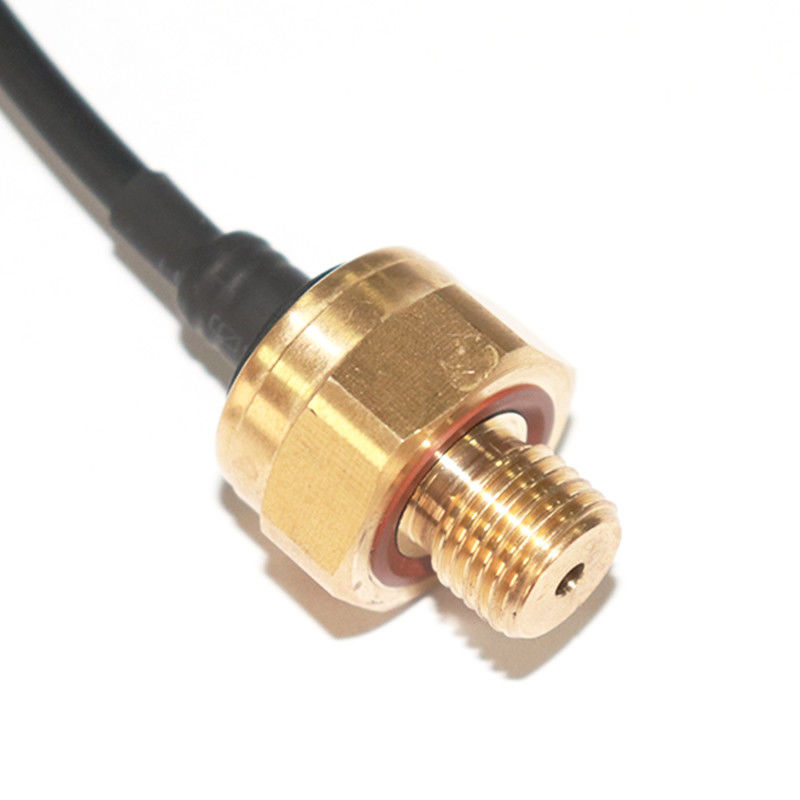

1000kPa Electronic 1/4G Cable 15mA Atmospheric Air Pressure Sensor

1000kPa Electronic 1/4G Cable 15mA Atmospheric Air Pressure Sensor
1000kPa Electronic 1/4G Cable 15mA Atmospheric Air Pressure Sensor 1000kPa Electronic 1/4G Cable 15mA Atmospheric Air Pressure Sensor

Large Image :  1000kPa Electronic 1/4G Cable 15mA Atmospheric Air Pressure Sensor

Product Details:
Place of Origin: China (Mainland)
Brand Name: WNK
Certification: CE
Model Number: WNK83MA
Payment & Shipping Terms:
Minimum Order Quantity: 1Piece
Price: Negotiation
Packaging Details: standard export carton box
Delivery Time: 5-8 work day
Payment Terms: T/T, Western Union
Supply Ability: 5000+Piece+perMonth
Detailed Product Description
Accuracy: 1% Measured Media: Liquid, Gas And Steam
Pressure Range: 0-1000kPa Output Signal: 0.5-4.5 VDC
Power Supply: 4.75-5.25 VDC Material: Brass
Process Connection: 1/4 NPT, G1/4 Electrical Connection: Parkard, Cable Outlet
Max Current: 15mA
High Light:

1000kPa Air Pressure Sensor

,

1000kPa atmospheric pressure sensor

,

15mA electronic air pressure sensor



0.5-4.5V Output Water Air Steam Pressure Sensor For Air Condition

Product Description

What we are showing now is WNK83mA quarter NPT pressure tranmitter.As a practical pressure transmitter made of brass, it has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its supply voltage is 4.75-5.25v DC and the maximum supply current is 15mA. It can withstand strong working pressures up to 2000kpa. It can act on gas, water or liquid and has strong stability.



Product Parameter

Applicable media Liquid, Gas, Steam
Pressure range 0-10bar 0-20bar
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~70ºC
Ambient temperature -40~110ºC
Working temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Parkard And Cable
Mechanical connection 1/4 NPT 1/4 G
Housing material Brass




NPT .jpg




Product Show

1000kPa Electronic 1/4G Cable 15mA Atmospheric Air Pressure Sensor 11000kPa Electronic 1/4G Cable 15mA Atmospheric Air Pressure Sensor 2

Company Information


pressure transducer 4-20 ma

Factory


pressure transducer 4-20 ma

Exhibition


pressure transducer 4-20 ma

Our Certificate


pressure transducer 4-20 ma

FAQ


Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
