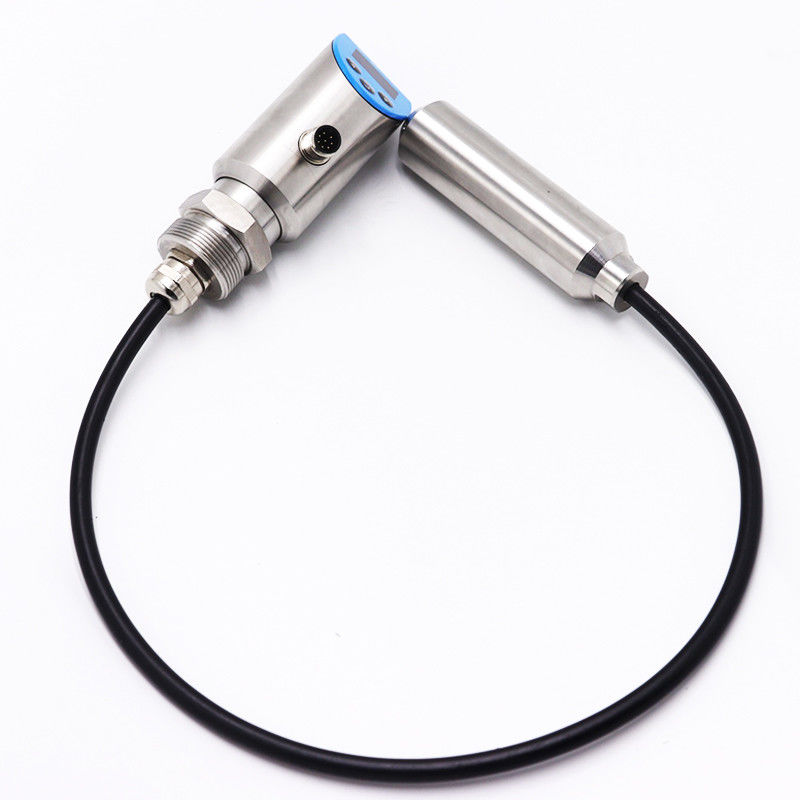

OLED Display Self Luminous RS485 Water Tank Switch Level Float Switch

OLED Display Self Luminous RS485 Water Tank Switch Level Float Switch
OLED Display Self Luminous RS485 Water Tank Switch Level Float Switch OLED Display Self Luminous RS485 Water Tank Switch Level Float Switch

Large Image :  OLED Display Self Luminous RS485 Water Tank Switch Level Float Switch

Product Details:
Place of Origin: China
Brand Name: WNK
Certification: CE
Model Number: WNKSLS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: standard export packaging
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2000 pieces per week
Detailed Product Description
Pressure Range: 0-1 To 100m H2O Analog: 0-5V,0-10V,4-20mA
Digital: RS485 Switching Type: Normally Open,normally Closed
Switching Current: MAX. 1.0A Respond Time: <10ms
Motion Model: Delay Or Windows Model
High Light:

RS485 water level float switch

,

RS485 water level sensor switch

,

OLED water tank level switch

4-20MA 0-5v 0-10v Output Water Level Switch For Water Pump And Deep Well



Product Description



1. Liquid and oil media level measurement
2. Switching points settable
3. Switching can be set normally open / normally closed
4. Analog output span settable
5. High light switch indicating
6. OLED self-luminous display
7. Display turnable 180°
8. Housing with electrical connection against process connection rotatable 330°
9. Media density settable

Product Spec

Measuring range 0…1mH2O to 100mH2O
Accuracy ≤0.5%FS
Supply power 12-30v DC
Switching type Normally closed, Normally Open
Analog output accuracy ±0.2%FS
Switching respond time <10ms
Screen display OLED
Working temperature -30-80C
Media temperature -30-80C
Storage temperature -40-80C
Protection calss IP65
Switching indicator 2x red led
Switching motion mode delay or window mode
Displaying pressure units psi, bar, mbar, pa, Kpa, Mpa


Product Show

OLED Display Self Luminous RS485 Water Tank Switch Level Float Switch 0OLED Display Self Luminous RS485 Water Tank Switch Level Float Switch 1




OLED Display Self Luminous RS485 Water Tank Switch Level Float Switch 2
OLED Display Self Luminous RS485 Water Tank Switch Level Float Switch 3
OLED Display Self Luminous RS485 Water Tank Switch Level Float Switch 4
