15Mpa I2C 4-20MA Ceramic Capacitive Pressure Sensor Switch

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

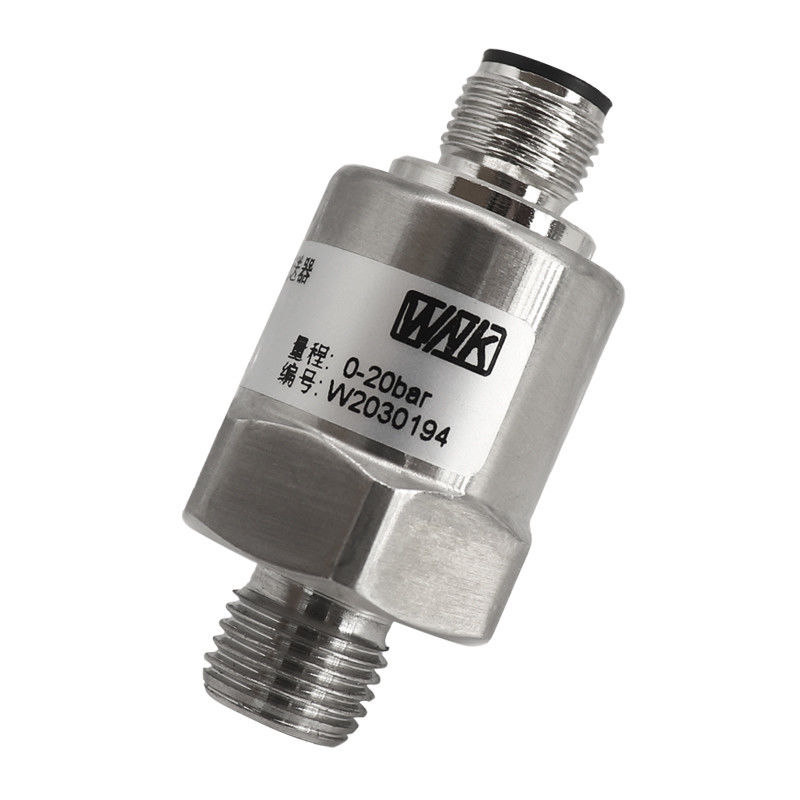

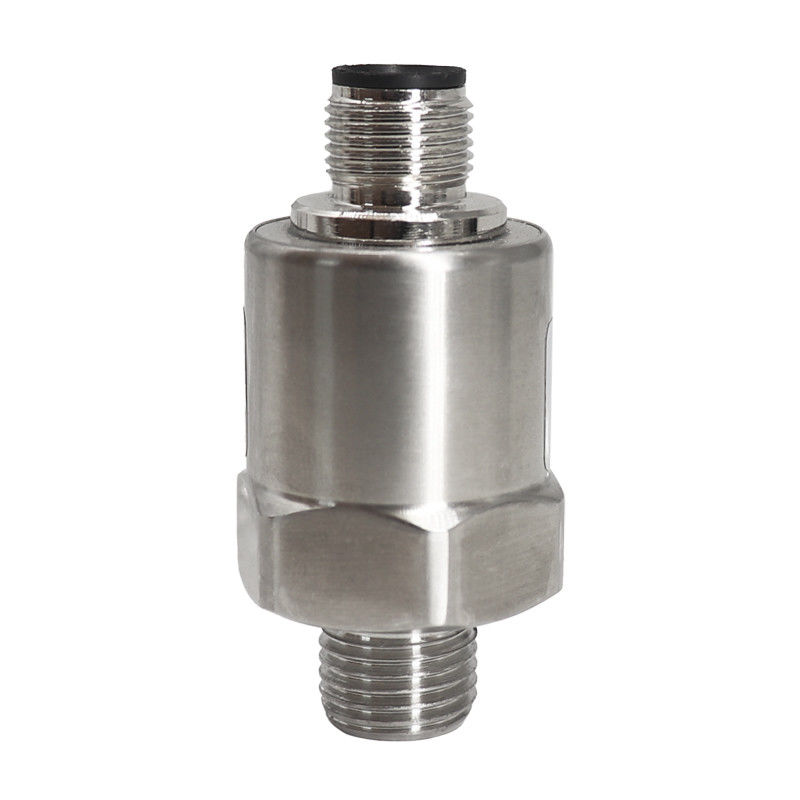

15Mpa I2C 4-20MA Ceramic Capacitive Pressure Sensor Switch

15Mpa I2C 4-20MA Ceramic Capacitive Pressure Sensor  Switch
15Mpa I2C 4-20MA Ceramic Capacitive Pressure Sensor  Switch 15Mpa I2C 4-20MA Ceramic Capacitive Pressure Sensor  Switch

Large Image :  15Mpa I2C 4-20MA Ceramic Capacitive Pressure Sensor Switch

Product Details:
Place of Origin: Anhui, China
Brand Name: WNK
Certification: CE, SGS, ISO9001
Model Number: WNK80MA
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Payment Terms: D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 Piece/Pieces per Month
Detailed Product Description
Pressure Range: 0-15Mpa Output: I2C, SPI, 0.5-4.5V, 4-20ma And Customization
Respond Time: ≥1ms Overload Pressure: 3-5 Times
Working Temperature: -40 -135°C Warranty: 12 Months
Ingress Protection: IP65 Accuracy: 1%
Compensation Temperature: -20 -70°C Housing Material: Stainless Steel 304
High Light:

I2C ceramic capacitive pressure sensor

,

15Mpa ceramic capacitive pressure sensor

,

I2C water pressure sensor switch

Cable Outlet 4-20MA 0.5-4.5v I2C Output Pressure Sensor For Air Water Liquid

Product Description

The features of WNK80MA is anti-corrosion, anti-wear, shock resistance and vibration resistance. WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement, because of high output and wide range.

Applications:

Pressure measurement of gas, vapor or liquid in various areas;

Liquid level, volume or mass measurement;

Integrated in a variety of user-defined solutions;

Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;



Product Spec



Applicable media Liquid, Gas, Steam
Pressure range 0-15Mpa
Cell Ceramic Capacitive Pressure Sensor
Pressure measurement Gauge Pressure, AbsolutePressure, Sealing Pressure
Output 4-20ma/0.5-4.5v/1-5v/0-5v/0-10v/I2C
Power supply 24VDC/12VDC/5VDC/3.3V
Accuracy 1%F.S.
Compensation temperature -20-85C
Working temperature -40-125C
Ambient temperature -40-125C
Temperature drift(zero) ±0.15% F.S. (-20~85ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Parkard
Mechanical connection G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Protection IP65





Product Show



15Mpa I2C 4-20MA Ceramic Capacitive Pressure Sensor  Switch 015Mpa I2C 4-20MA Ceramic Capacitive Pressure Sensor  Switch 115Mpa I2C 4-20MA Ceramic Capacitive Pressure Sensor  Switch 2







About Us

15Mpa I2C 4-20MA Ceramic Capacitive Pressure Sensor  Switch 3



FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
