Product Details:
Payment & Shipping Terms:
|
| Pressure Range: | -100-60Mpa | Accuracy: | ≤0.5%FS |
|---|---|---|---|
| Measure Medium: | Gas, Liquid, Water | Output: | PNP, NPN, 4-20ma |
| Display: | OLED | IP Protection: | IP65 |
| Switching Type: | NO/NC | Housing: | 304, 316SS |
| High Light: | 20ma digital pressure switch for well pump,PNP digital pressure switch for well pump,NPN Electronic Digital Pressure Switch |
||
Description

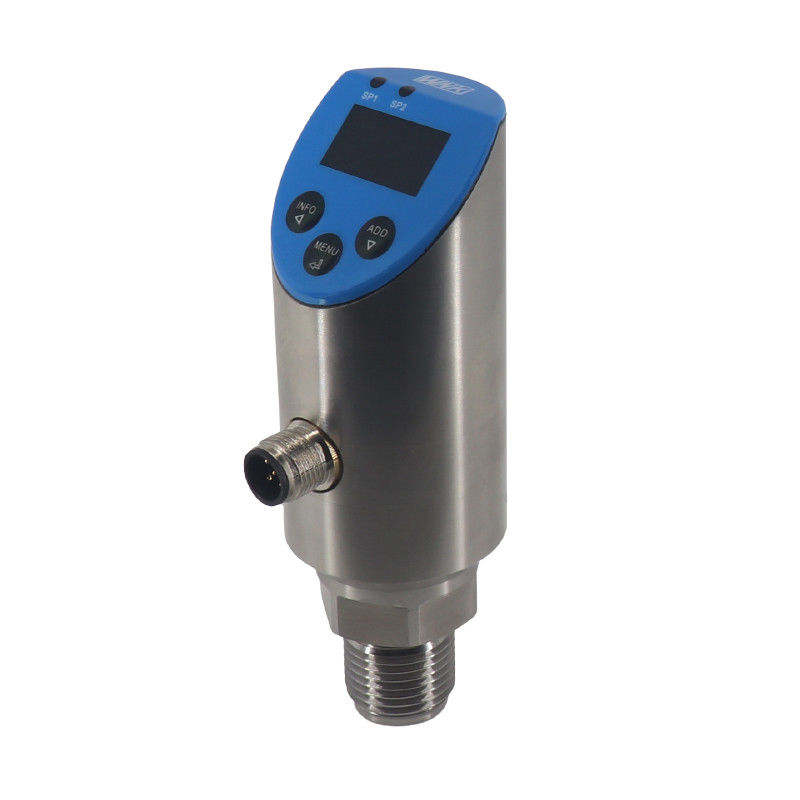

WNK-SPS OLED display pressure control switch Can provide a continuous pressure monitoring and set the pressure switching point without supercharging. User can easily set the switching point and back-to-switching point without supercharging equipment. And can define the switch type(normal open/close), damping time,the relay and NPN / PNP switch. The product can transfer the collected pressure signal into standard current and pressure signal output. The display and connection can rotate freely within 180 degrees so that it can be easily installed.
Applications
Gas-liquid dual-capable can be used in : pump control, storage tank monitor, liquid level control, filter blocking and monitor, leakage surveillance.
Industrial process testing and control
Self-controlled and constant-pressured water supply in building
Petrochemical, environmental protection, water conservancy, light industry, machinery, metallurgy
Measuring and control in other systems
Datasheet
|
Applicable media
|
Liquid, Gas, Steam
|
|
Pressure range
|
-100kPa~60MPa
|
|
Output Signal
|
2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
|
|
2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
|
|
|
Accuracy
|
0.5% FS
|
|
Stability
|
±0.3% FS/year
|
|
Switch current
|
1.0A(Max.)
|
|
Switching type
|
Normally open / closed (settable)
|
|
Display
|
OLED (Optional)
|
|
Housing material
|
304 stainless steel
|
|
Mechanical connection
|
M20×1.5; 1/2-18NPT, 1/4NPT, Customize
|
|
Storge temperature
|
－40～80℃
|
|
Process temperature
|
－30～80℃
|
|
Protection class
|
IP65
|
FAQ
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: What is yor MOQ?
A: We have no MOQ limits,1 pc for testing is acceptable.
