Product Details:
Payment & Shipping Terms:
|
| Analog: | 4-20mA, 1-5V, 0.5-4.5, 0-5V, 0-10V, I2C | Digital: | Hart, RS485 Etc |
|---|---|---|---|
| Measure Range: | 0-1~200mH2O | Media: | Liquid, Water |
| Accuracy: | ±0.25% FS/year, ±0.5% FS/year | Housing Material: | Stainless Steel |
| Power Supply: | 24V/12V/5V/3.3V | Protection: | IP68 |
| High Light: | I2C Submersible Level Sensor,200mH2O submersible pressure sensor,200mH2O submersible level transmitters |
||

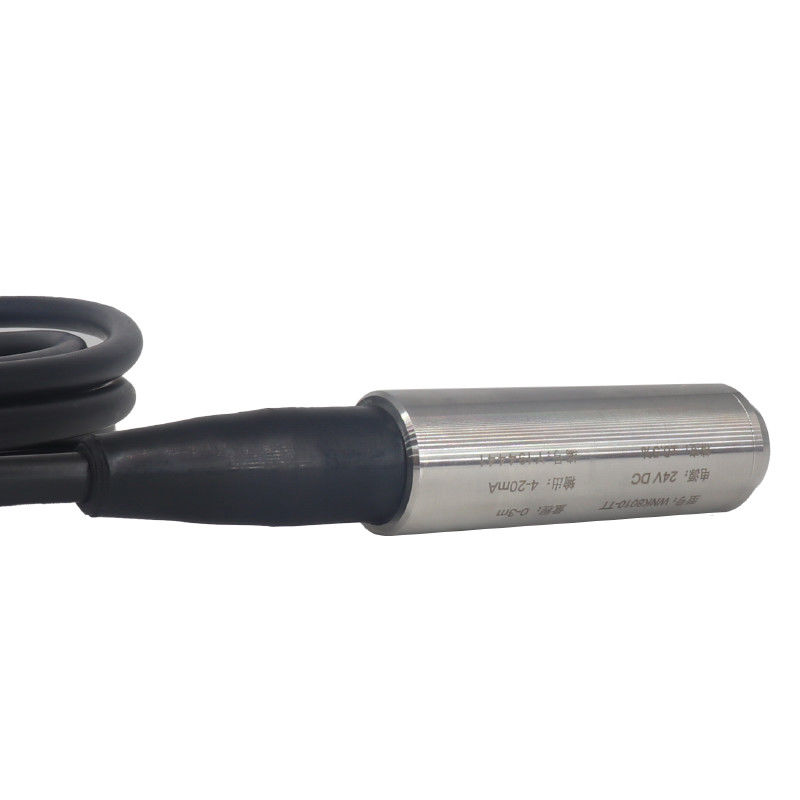

4-20ma 0.5-4.5v RS485 i2c Low Fuel Level Sensor Level Transmitter
Product Description
1. Our WNK8010 with the reliable amplified circuit and precision temperature compensation,to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
Product Specification
| Output signals | |
| Output | 4-20mA,,0-5V, 1-5V,Customization |
| Measured range | |
| Measured range | 0-0.5~200mH2O |
| Max overload | 150% of sensor range |
| Parameters | |
| Applicable media | Liquid, Water |
| Accuracy | ±0.2% FS/year, ±0.5% FS/year |
| Stability | ±0.25% FS/year |
| Housing material | Stainless steel |
| Cable material | Polyvinyl Fluoride, PTFE |
| Power supply | 24V DC |
| Ambient temperature | -20~85℃ |
| Process temperature | -20~85℃ |
| Compensation temperature | -20~85℃ |
| Protection class | IP68 |
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: What is yor MOQ?
A: We have no MOQ limits,1 pc for testing is acceptable.
