Product Details:
Payment & Shipping Terms:
|
| Accuracy: | 0.5%F.S | Output: | 4-20mA, 1-5V,0-10V,0.5-4.5V, I2C |
|---|---|---|---|
| Pressure Range: | 0-0.5~200mH2O | Power Supply: | 24V/12V/5V/3.3V |
| Measured Media: | Water, Liquid | Housing Material: | Stainless Steel |
| IP Rating: | IP68 | Max Overload: | 150% Of Sensor Range |
| Application: | For Tank, Pool, River, Underwater Etc Open Vessel Measurement | ||
| High Light: | Immersion analog water level sensor,4.5V submersible level transducer,steel housing submersible level transmitter |
||

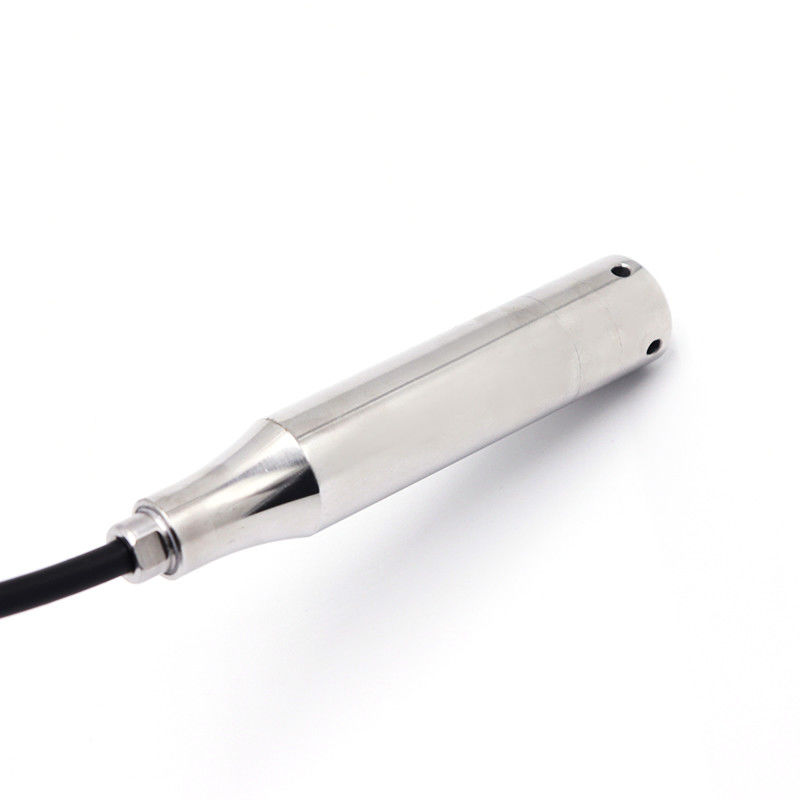

Water Level Sensor For Level Measurement
| Output signals | |
| Output | 4-20mA, 0-10mA, 0-5V, 1-5V, I2C |
| Measured range | 0-200 meters |
| Max overload | 150% of sensor range |
| Applicable media | Liquid, Water |
| Accuracy | ±0.2% FS/year, ±0.5% FS/year |
| Stability | ±0.25% FS/year |
| Housing material | Stainless steel |
| Cable material | Polyvinyl Fluoride, PTFE |
| Power supply | 24V DC |
| Ambient temperature | -20~85℃ |
| Process temperature | -20~85℃ |
| Compensation temperature | -20~85℃ |
| Protection class | IP68 |
1. Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
2. This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
3. With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
Product Dimension & Installation
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
