|Pressure Range:||0-700bar||Output:||I2C, SPI, 0.5-4.5V, 4-20ma And Customization|
|Respond Time:||≥1ms||Overload Pressure:||3-5 Times|
|Working Temperature:||-40 -135C||Warranty:||12 Months|
|Ingress Protection:||IP67||Accuracy:||0.25%FS, 0.5%FS|
micro pressure sensor,
i2c pressure sensor,
Mini IOT Pressure Sensor

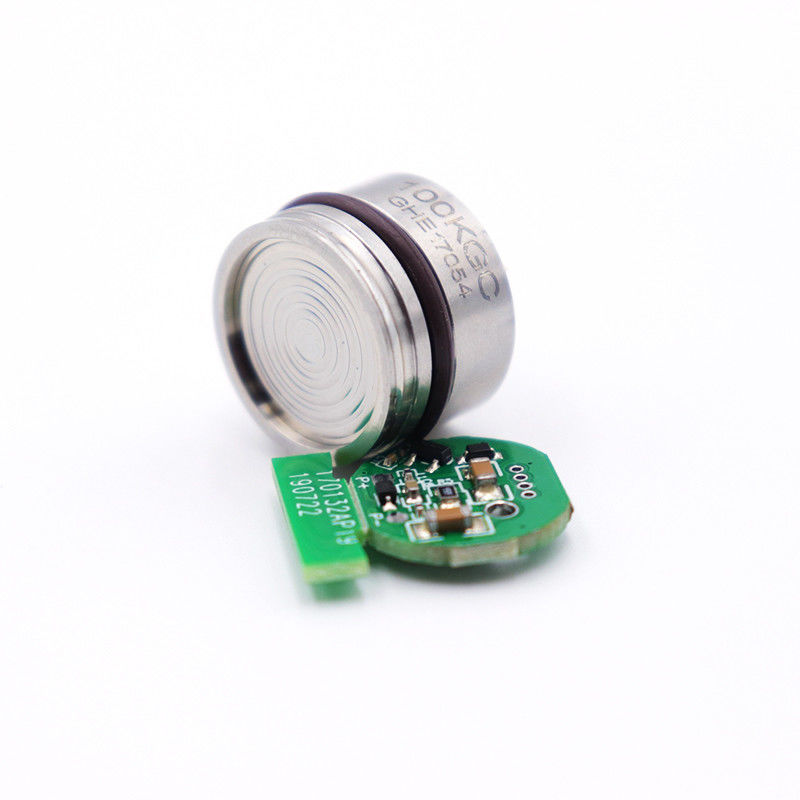

0-7MPa Mini Industrial Low cost Silicon Pressure Sensor
With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.
Our sensor outputs including 4~20mA, SPI, I²C, 0.2~2.9V, 1~5V, 0~5V, 0.5~4.5V, 0~10v and etc. And OEM, ODM & customization service are available for this product.
|- Automobile, Compressor and Refrigeration Industry|
|- Engineering machinery|
|- Pressure control and monitor|
|- Water treatment system|
|- Hydraulic and Pneumatics|
|- HAVC and BAS Control|
|- Pump, fitness equipment, household appliances|
|- Factory Automation|
|- Fluid Control and Instrumentation Systems|
• Excellent resistance to corrosion and abrasion resistance;
• Adapt to pollution and corrosive environments;
• Flat large round diaphragm, easy to install;
• Rapid response, no hysteresis;
• Wide operating temperature range;
• Sensor-specific signal conditioning;
• 0.5 ... 4.5V voltage output or I2C digital output, 4-20mA output;
• Accurate, stable and reliable;
|IOT Pressure Sensor|
|Pressure type||Gauge, Absolute, Seal, Vacuum|
|Overpressure||300%F.S. (≤70kPa) 200%F.S.(≤25MPa)|
|Output signals||0.2-2.9V, SPI, I2C, 0.5-4.5V, 1-5V, 0-5V, 0~10V, 4~20mA|
|Zero Temp. Drift||±1.5%FS Max (-20~85℃)|
|Full Scale Temp. Drift||±1.5%FS Max (-20~85℃)|
|Pressure Connection||G1/4, 7/16-SAE, NPT, and other outputs|
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs supported I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other
6. Our products have been exported to most of the EU countries, North America, South East Aisia and other countries and regions.
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
