|Output Signals:||4~20mA, 1-5V For Optional||Measured Media:||Liquid, Gas And Steam|
|Pressure Measurment:||Gauge Pressure, Absolute Pressure, Negative Pressure, Sealing Pressure||Pressure Range:||0-0.2~-100kPa, 0-0.2~1000kpa, 60Mpa|
|Accuracy:||0.2%FS, 0.5%FS||Stability:||±0.25% FS/year|
|Zero Drift:||50% Of Full Range Span.||Max Overload:||200% Of Sensor Range|
|Display:||LED (Optional)||Housing Material:||304 Stainless Steel|
i2c pressure sensor,
oem pressure sensor,
Flush IOT Pressure Sensor

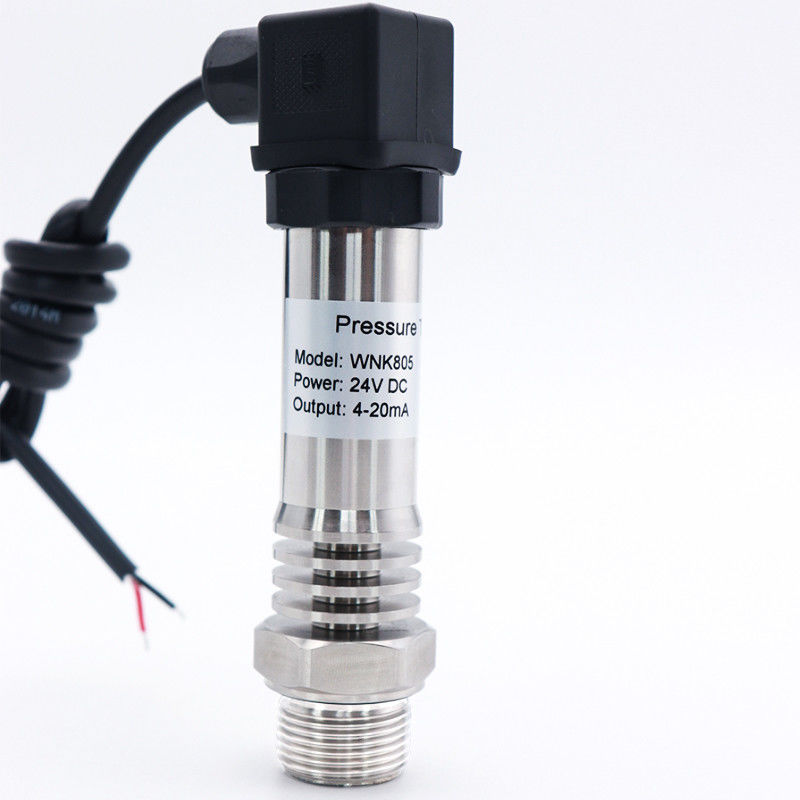

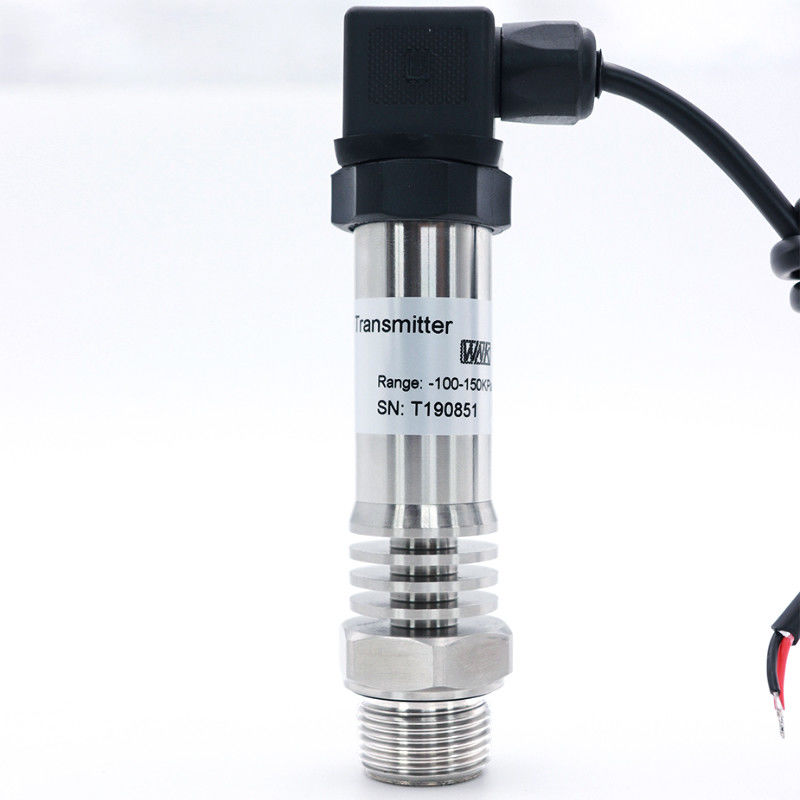

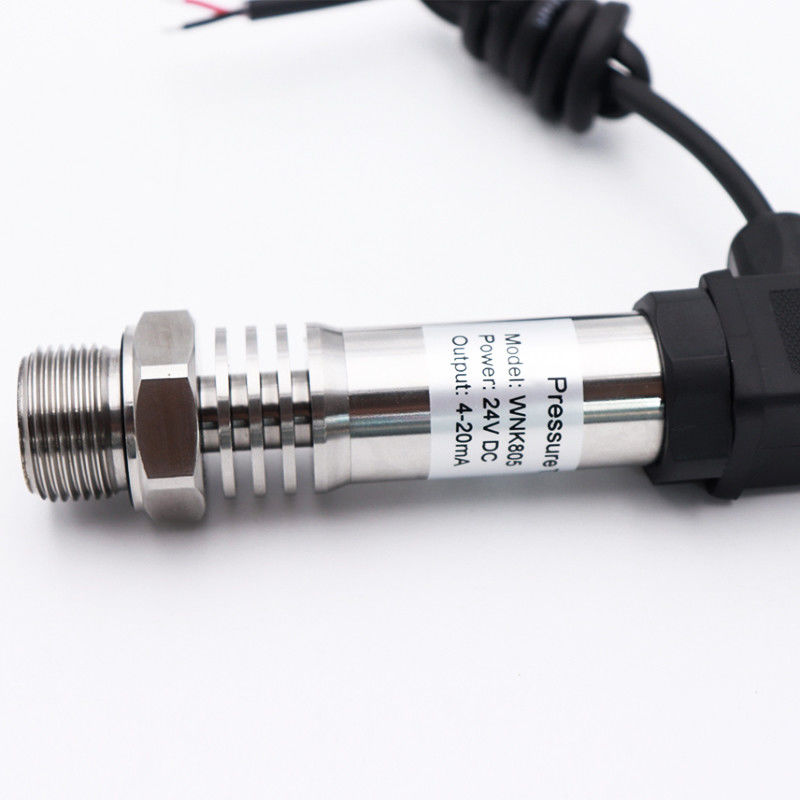

WNK805 High Temperature Flush 4-20mA Pressure Sensor For Beer Manufacturer

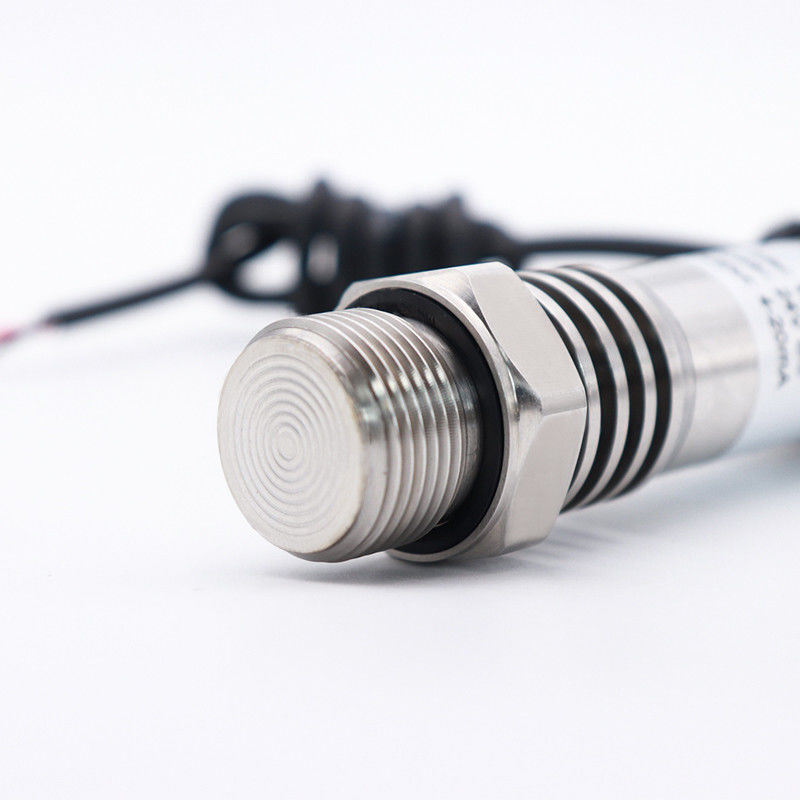

WNK805 high temperature flush pressure sensor is a special product specially designed for food fields such as beer. The design of this series fully complies with the hygiene standards of the food industry. The flush is used to isolate the measurement medium from the pressure sensor, and it is filled with sanitary and special oil, which can ensure stable work without temperature drift at high temperature of 150 ºC.
WNK805 high temperature flush pressure sensor is very suitable for pressure measurement and control of beer, milk warehouse food and other media.
WNK805 is made of stainless steel. It adopts screw-in screw-in bottom mounting form, and it is equipped with a special sanitary material mounting base for customers, which can be installed flush and flush with the bottom of the tank to achieve true sanitation without dead angle
|WNK805 Gauge/Absolute Pressure Transmitter (Diffused silicon sensor)|
|Applicable media||Liquid, Gas, Steam|
|Pressure range||-100kPa-0, 0-0.2~-100kPa, 0-0.2~1000kpa, 0-60MPa, 70MPa|
|Pressure measurement||Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure|
|Accuracy||0.2% FS, 0.5% FS|
|Zero drift||50% of full range span.|
|Max overload||200% of sensor range|
|Bandwidth / Response time||1 millisecond (Optional for analog type)|
|Output signals||4~20mA, 1-5V(optional)|
|Housing material||304 stainless steel|
|Mechanical connection||M20×1.5; 1/2-18NPT, 1/4NPT, G1/4, Customize|
|Power supply||Non-explosion: 10.5~45V DC|
|EEX ia:8~30 V DC|
|-40~150ºC (diaphragm type, clamp type)|
1. WNK805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit.
2.With precise temperature characteristic compensation, it can be used reliably and stably
3.It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media.
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
