0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion

large.img.alt
small.img.alt small.img.alt

Large Image :  0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion

Product Details:
Place of Origin: China
Brand Name: WNK
Model Number: WNK83mA
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Each piece into individual carton with foam protection,Or as per client's request
Delivery Time: 8-10 working days
Payment Terms: D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 2000 pcs per week
Detailed Product Description
Pressure Range: 0-2MPa,0-20bar,0-2000kPa Output: 0.5-4.5V DC
Power Supply: 4.75-5.25V DC Material: Brass
Process Connector: G1/4 Electrical Connector: Cable Outlet
Accuracy: 1% Product Name: 0.5-4.5V Compact Ceramic Brass Pressure Sensor With Anti-Corrosion Function
High Light:

5.25VDC compact pressure transducer

,

2MPa compact pressure sensor

,

Ceramic Brass compact pressure transducer

Brass Pressure Sensor

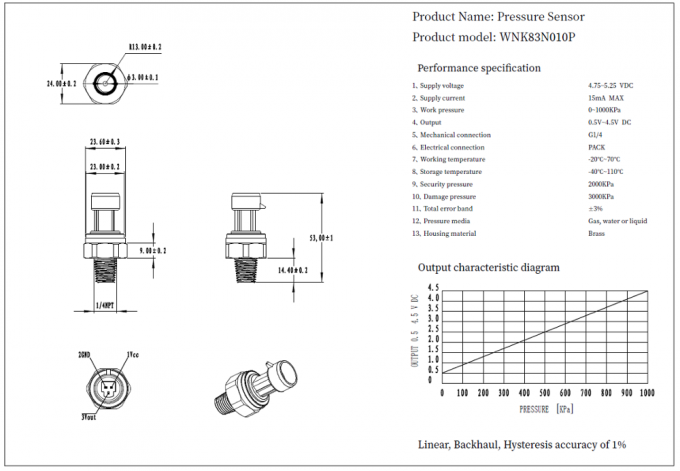

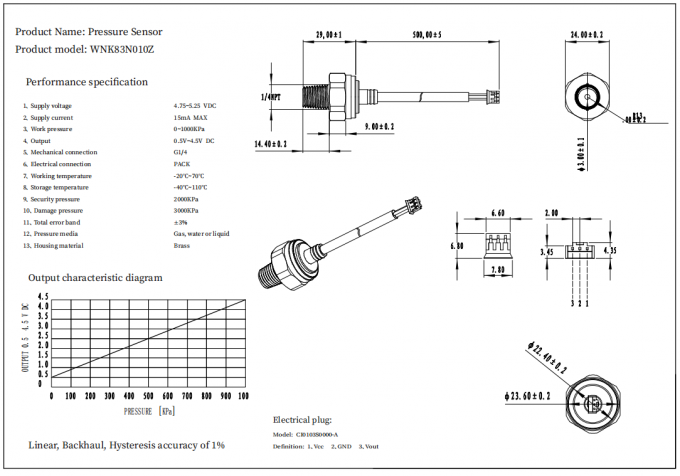

Mechanical Dimension:

Low Cost 10 bar 20bar Brass Water Pressure Sensor With 0.5-4.5V OutputLow Cost 10 bar 20bar Brass Water Pressure Sensor With 0.5-4.5V Output



Applicable media Liquid, gas and steam
Pressure range 0-2MPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Working temperature -20~70ºC
Ambient temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical connection Cable Outlet
Mechanical connection G1/4
Housing material Brass



PRODUCT SHOW



0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion 20.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion 30.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion 4



Low Cost 10 bar 20bar Brass Water Pressure Sensor With 0.5-4.5V Output





Packaging

0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion 6

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
