I2C Pressure Sensor High Accuracy Electronic Micro Compressed 60000Kpa Range

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

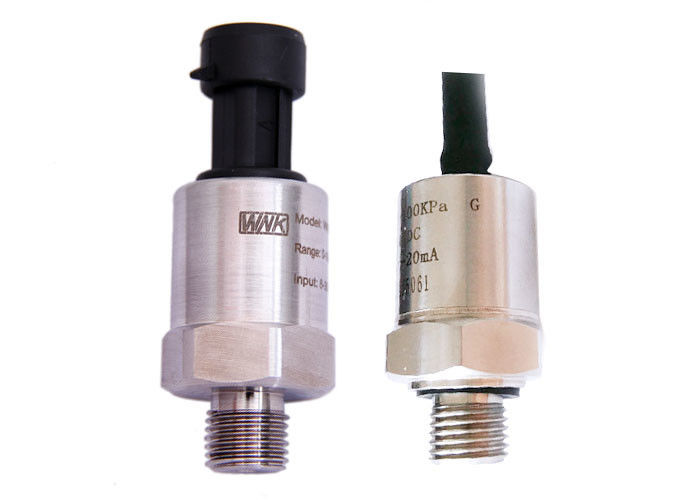

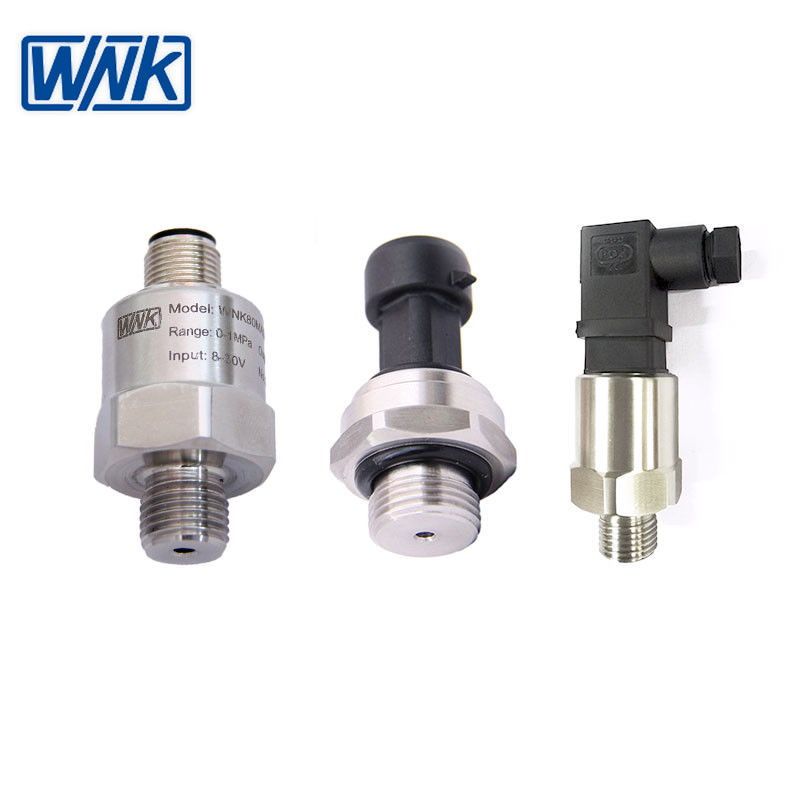

I2C Pressure Sensor High Accuracy Electronic Micro Compressed 60000Kpa Range

I2C Pressure Sensor High Accuracy Electronic Micro Compressed 60000Kpa Range
I2C Pressure Sensor High Accuracy Electronic Micro Compressed 60000Kpa Range I2C Pressure Sensor High Accuracy Electronic Micro Compressed 60000Kpa Range I2C Pressure Sensor High Accuracy Electronic Micro Compressed 60000Kpa Range

Large Image :  I2C Pressure Sensor High Accuracy Electronic Micro Compressed 60000Kpa Range

Product Details:
Place of Origin: Hefei, China
Brand Name: WNK
Certification: CE, SGS, ISO9001
Model Number: WNK80MA-5
Payment & Shipping Terms:
Minimum Order Quantity: 3 piece
Price: Negotiation
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pcs per month
Detailed Product Description
Pressure Range: -1bar - 60000Kpa Output: I2C, SPI, 0.5-4.5V, 4-20ma And Other
Respond Time: ≥1ms Overload Pressure: 3-5 Times
Material: 304SS Medium Temperature: -40 -100C
Warranty: 12-18 Months Accuracy: 0.25%FS, 0.5%FS 1.0%FS
IP Protection: IP65 IP67
High Light:

air pressure transmitter

,

piezoresistive pressure sensor

China Low Cost High Accuracy Electronic Micro Compressed Air Pressure Sensor



Description

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

IP65 Digital SPI/I2C Small Air Pressure Sensor with High Accuracy 0.2%FS


Applications

- Automobile, Compressor and Refrigeration Industry

- Engineering machinery

- Pressure control and monitor

- Water treatment system

- Hydraulic and Pneumatics

- HAVC and BAS Control

- Pump, fitness equipment, household appliances

- Factory Automation

- Fluid Control and Instrumentation Systems



Features :



1. Temperature range: -20 to 85℃

2. Wide operation temperature range -40~125℃

3. High performance ceramic capacitive pressure sensor

4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available

5. Small dimensions, dimension customizble

6. Optional packard, M12, Small Hirschman connectors

7. OEM, ODM, customization service available

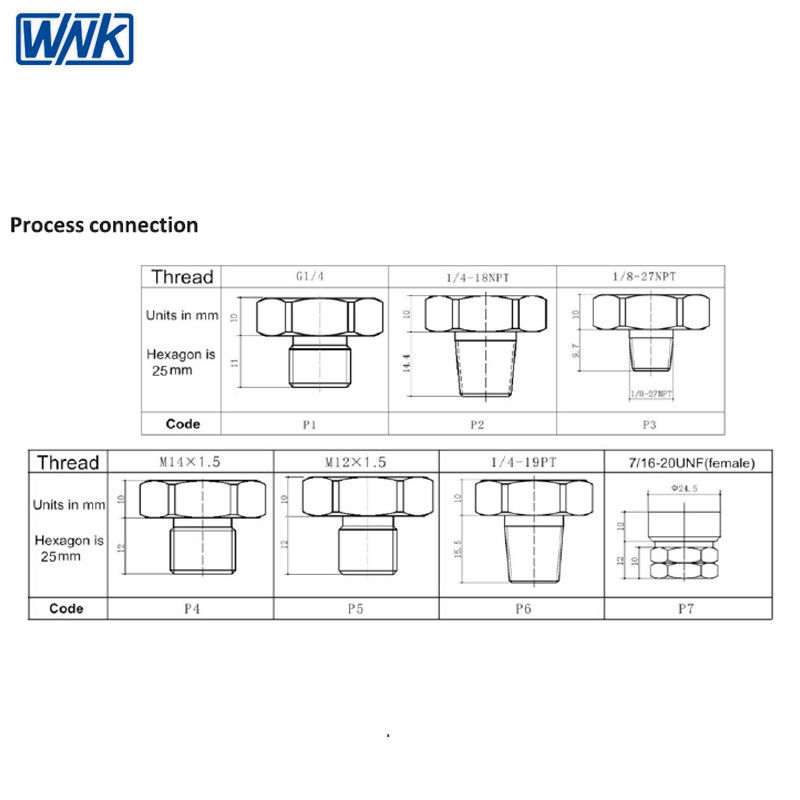

8. Process connector: G1/4, M12*1.5, 1/4NPT, 7/16-20UNF female





Technical Data

Applicable media
Liquid, Gas
Pressure range
0-20kPa~350bar
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parker joint, customization
Mechanical connection
G1/4, 1/8NPT,M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65 IP67



0-10Bar 100Psi Arduino Air Water Pressure Sensor





Certifications

0-10Bar 100Psi Arduino Air Water Pressure Sensor

Ordering Code

I2C Pressure Sensor High Accuracy Electronic Micro Compressed 60000Kpa Range 3





Our company

WNK has 13-year experience of research, development, production and sales of sensors. With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.
After two years of research, development and repeatedly testings, our ceramic capacitive sensors have entered big quantity production stage. For different applications and installation methods, we offer OEM, ODM and customization services.
0-10Bar 100Psi Arduino Air Water Pressure Sensor
