Explosion proof pressure sensor transmitter 4-20mA to test natural gas

China Explosion proof pressure sensor transmitter 4-20mA to test natural gas supplier
Explosion proof pressure sensor transmitter 4-20mA to test natural gas supplier Explosion proof pressure sensor transmitter 4-20mA to test natural gas supplier Explosion proof pressure sensor transmitter 4-20mA to test natural gas supplier Explosion proof pressure sensor transmitter 4-20mA to test natural gas supplier Explosion proof pressure sensor transmitter 4-20mA to test natural gas supplier Explosion proof pressure sensor transmitter 4-20mA to test natural gas supplier

Large Image :  Explosion proof pressure sensor transmitter 4-20mA to test natural gas

Product Details:

Place of Origin: China
Brand Name: WNK
Certification: Ex ia IIC T4 Ga
Model Number: WNK805

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: Each piece into individual carton with foam protection Or as per client's request
Delivery Time: 5-8days for nornal order
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Model Number: WNK805 Output Singal: 4~20mA, 1-5V, Customization
Measured Media: Liquid, Gas, Steam Pressure Range: -100KPa~60MPa
Display: LED Protection Class: IP65
Housing Material: 304SST Ex-proof: Ex Ia IIC T4 Ga
Accuracy: 0.2%FS

ExplosionExplosion proof pressure sensor transmitter 4-20mA to test natural gas proof pressure transmitter 4-20mA and 1-5V powewr supply

Explosion proof pressure sensor transmitter 4-20mA to test natural gas

Explosion proof pressure sensor transmitter 4-20mA to test natural gas
Explosion proof pressure sensor transmitter 4-20mA to test natural gas

The WNK805 sensor can be used in the measurement of natural gas, measuring the amount of gas used, the volume of natural gas, and so on.

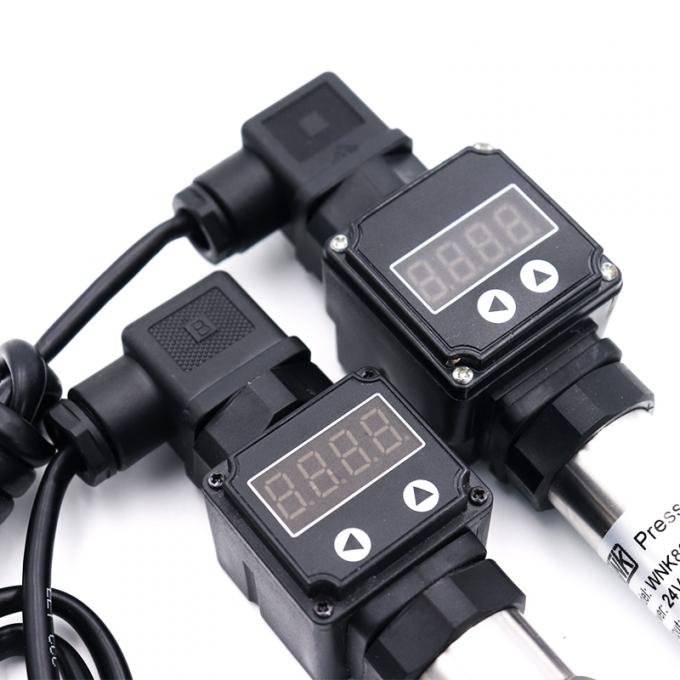

The WNK805 is a pressure transmitter that integrates the display. The LED display can display the value of the measured gas in various units. Its high accuracy 0.2%FS gurantee the accurate of test. Its capacitive size decides that it can be widely used in many hazardous install environment.
Natural gas is a flammable gas. Our transmitter is explosion-proof and the explosion-proof standard is Ex ia IIC T4 Ga, which can be used in explosion-proof applications.

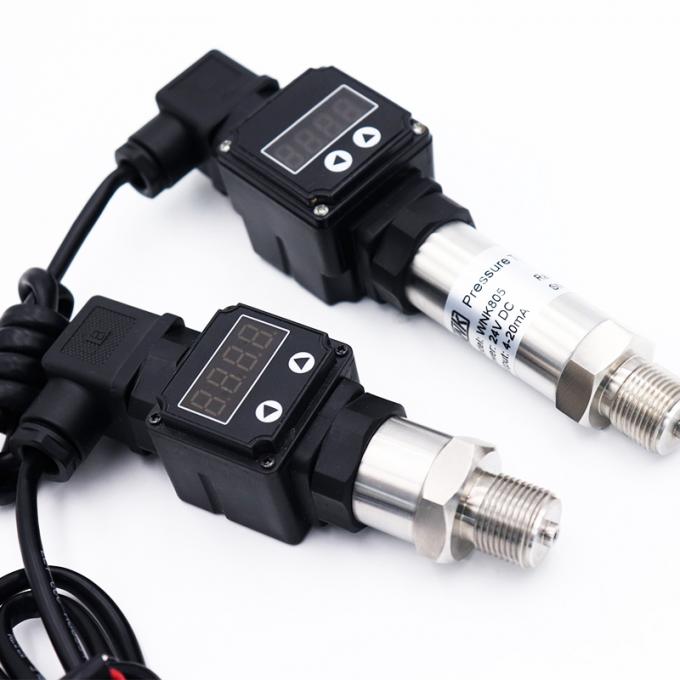

WNK805 Gauge/Absolute Pressure Transmitter (Diffused silicon sensor)
Applicable mediaLiquid, Gas, Steam
Pressure range-100kPa-0, 0-0.2~-100kPa, 0-0.2~1000kpa, 0-60MPa, 70MPa
Pressure measurementGauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Accuracy0.2% FS, 0.5% FS
Stability±0.25% FS/year
Zero drift50% of full range span.
Max overload200% of sensor range
Bandwidth / Response time1 millisecond (Optional for analog type)
Output signals4~20mA, 1-5V(optional)
DisplayLED (Optional)
Housing material304 stainless steel
Mechanical connectionM20×1.5; 1/2-18NPT, 1/4NPT, G1/4, Customize
Protection classIP65
Power supplyNon-explosion: 10.5~45V DC
EEX ia:8~30 V DC
Ambient temperature-40~85ºC
Process temperature-40~85ºC
-40~150ºC (diaphragm type, clamp type)
Compensation temperature-10~70ºC
Features

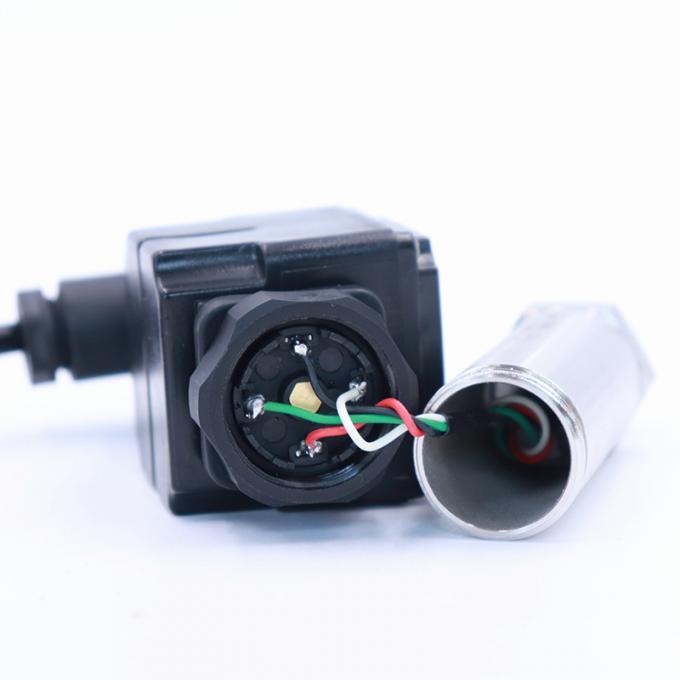

1. WNK805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit.
2.With precise temperature characteristic compensation, it can be used reliably and stably
3.It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media.


Features
- Standard ranges from vacuum to 60Mpa
- Accuracy up to ±0.25%
- 4-20 mA 2-wire output signal, others available
- Highly resistant to pressure spikes and vibration
- Stainless steel case and wetted parts
- Full range of process and electrical connections
- Assemble to diaphragm seals for special applications
- Suitable for gas, liquid, steam pressure measurement
- Intelligent digital circuit with precise temperature characteristic compensation
- Tantalum sensor contact for option for pressure measurement with corrosive media


WNK805 Gauge /Absolute Pressure Transmitter (Diffused Silicon Sensor)
EX ia IIC T4 Ga explosion protection certificate for WNK805.
High Anti-interference Ability for Frequency Transformer Application
Good Comprehensive Accuracy 0.2%FS


Explosion proof pressure sensor transmitter 4-20mA to test natural gas

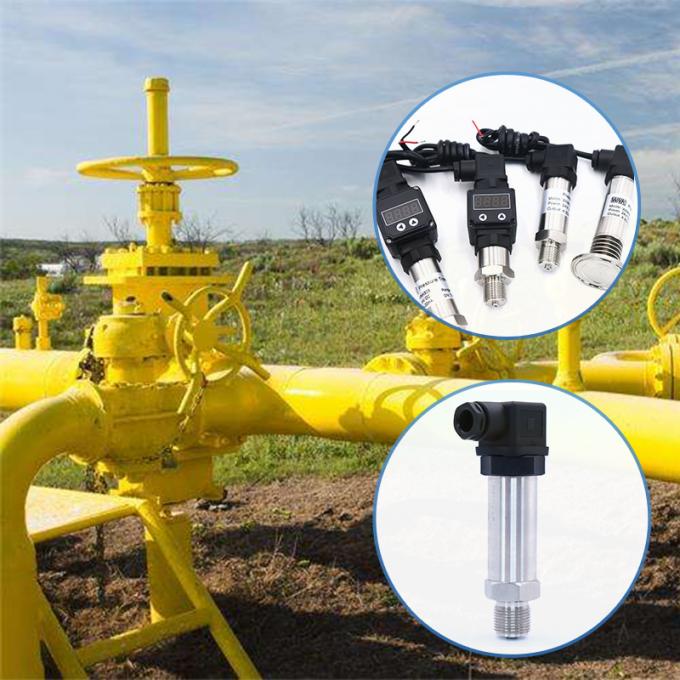

Application for natural gas

Explosion proof pressure sensor transmitter 4-20mA to test natural gas

Explosion proof pressure sensor transmitter 4-20mA to test natural gas

Explosion proof pressure sensor transmitter 4-20mA to test natural gasExplosion proof pressure sensor transmitter 4-20mA to test natural gasExplosion proof pressure sensor transmitter 4-20mA to test natural gas
Explosion proof pressure sensor transmitter 4-20mA to test natural gasExplosion proof pressure sensor transmitter 4-20mA to test natural gasExplosion proof pressure sensor transmitter 4-20mA to test natural gas
FAQ
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What's your quality control system?

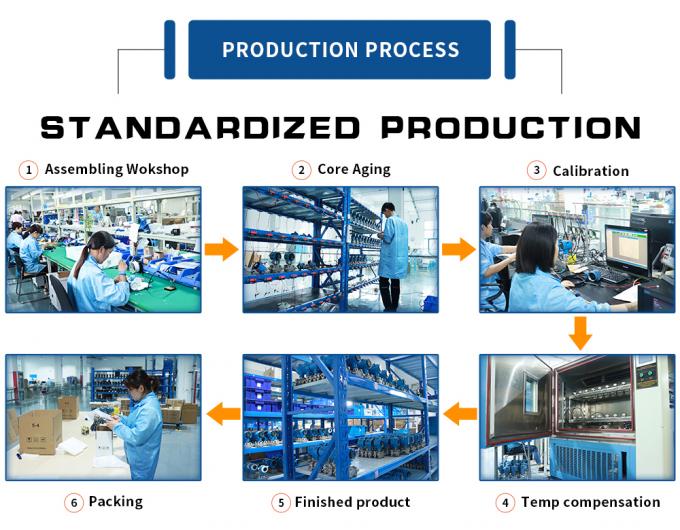

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
