Product Details:
Payment & Shipping Terms:
|
| Output: | 4~20mA, I2C, SPI, 0.2-2.9V, 0.5-4.5V ,0-5V, | Pressure Range: | 0-15MPa |
|---|---|---|---|
| Accuracy: | 0.5%FS, 1%FS, 2%FS | Operation Temperature: | -40~150℃ |
| Ingress Protection: | IP67 | Respond Time: | ≥1ms |
| OEM: | OEM, ODM Welcome | Overload: | 2x FS |
| Proof Pressure: | 3x FS | Housing Material: | SS304 |

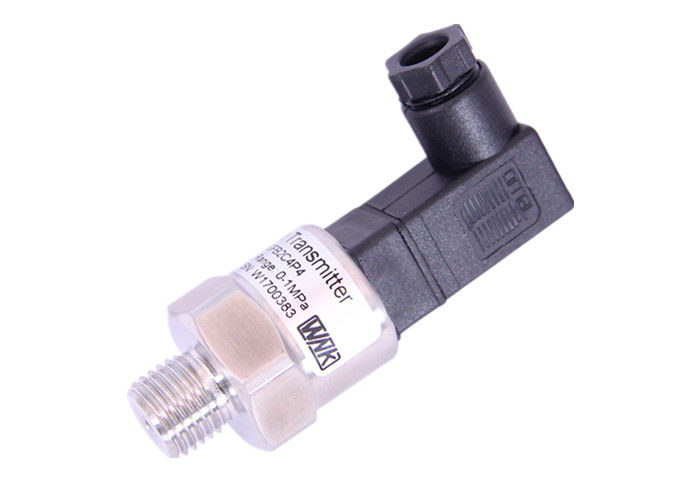

| Electrical Connector: | DIN, Packard, Direct Cable, M12X1, Deustch | ||
| High Light: | piezoresistive pressure sensor,mini pressure sensor |
||

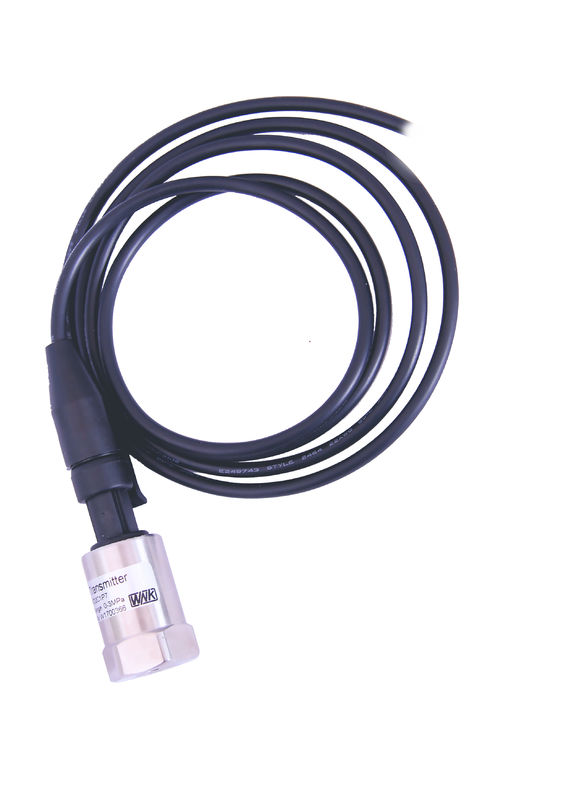

IP67 4~20mA 0.5-4.5V Compact Pressure Sensor for Compressor, hydraulic and pneumatic system
WNK80MA is a high quality ceramic capacitive pressure sensor. Its operation temperature is -40~150℃, with various outputs of I2C, SPI, 0.2-2.9v, 4~20mA, 0.5-4.5V. It can be widely applied to domestic drinking water system, air-conditioning, machinery and refrigeration plant engineering, hydraulic and pneumatic systems, process industries and environmental technology.
Features :
1. Temperature range: -20 to 85ºC;
2. Wide operation temperature range -40~125ºC;
3. High performance ceramic capacitive pressure sensor;
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available;
5. Small dimensions, dimension customizble;

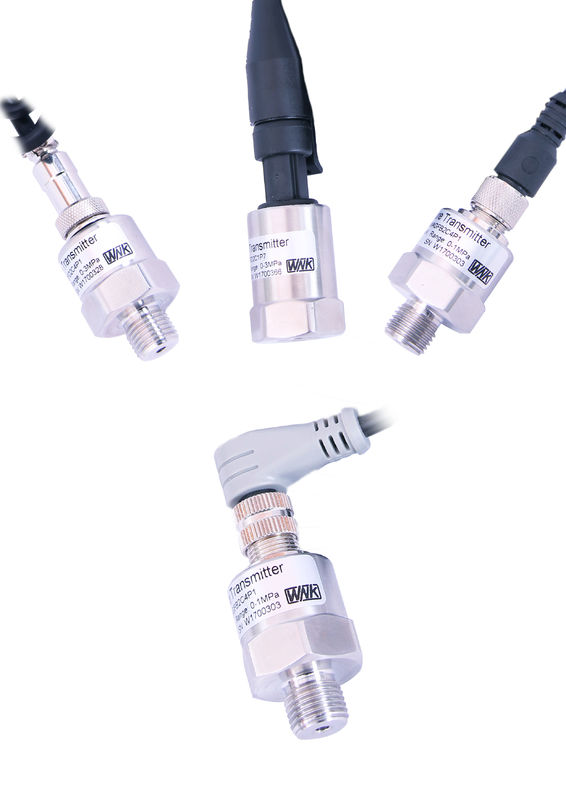

6. Optional packard, M12, Small Hirschman connectors;
7. OEM, ODM, customization service available;
Detailed Technical Info:
| High Performance Miniature Pressure Sensor | ||||
| Pressure range | 20kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa...25MPa | |||
| Pressure type | Gauge, Absolute, Sealing gauge | |||
| Overpressure | 300%F.S. (≤70kPa) 200%F.S.(≤25MPa) | |||
| Output signals | 4~20mA, SPI, I2C, 0.5-4.5V, 1-5V, 0-5V | |||
| Accuracy | ±0.5%FS (Typical value) | |||
| Compensation Temp. | -20~85℃ | |||
| Operation Temp. | -40~125℃ | |||
| Storage Temp. | -40~125℃ | |||
| Zero Temp. Drift | ±1.5%FS Max (-20~85℃) | |||
| Full Scale Temp. Drift | ±1.5%FS Max (-20~85℃) | |||
| Pressure Connection | Pls check below dimensions | |||
| Ingress Protection | IP65 | |||
| Housing | SS316, SS304 | |||
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
