|Output:||4~20mA, I2C, SPI, 0.2-2.9V, 0-5V And Customization||Pressure Range:||0-10bar|
|Accuracy:||0.5%FS, 1%FS, 2%FS||Operation Temperature:||-40~150℃|
|Respond Time:||≥1ms||OEM:||OEM, ODM Welcome|
|Overload:||2 Times FS||Proof Pressure:||3 Times FS|
|Housing Material:||SS304||Sensor Type:||Diffused Silicon Sensor, Ceramic Capacitive Sensor|

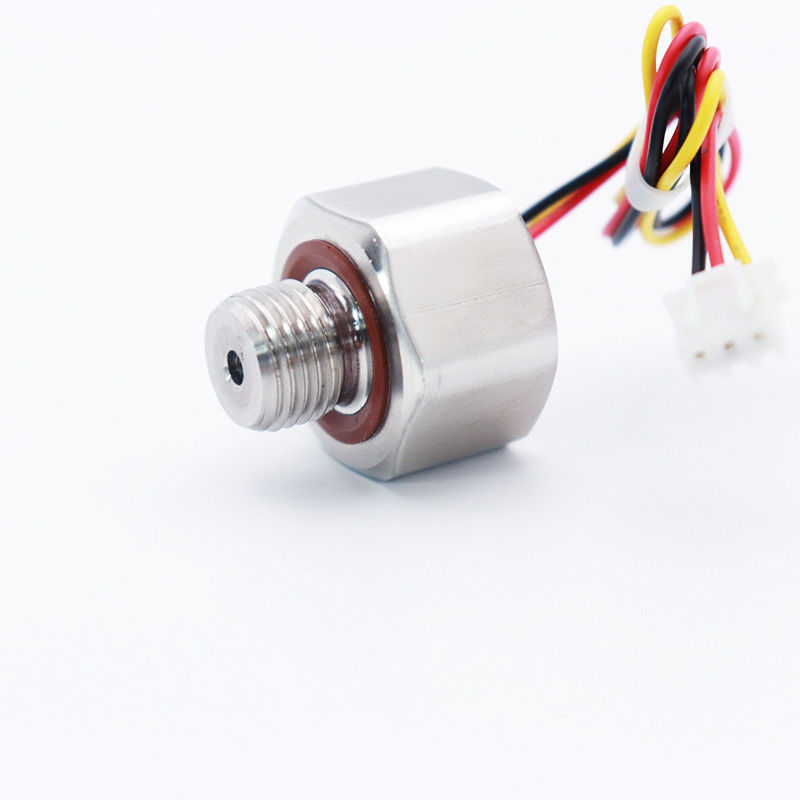

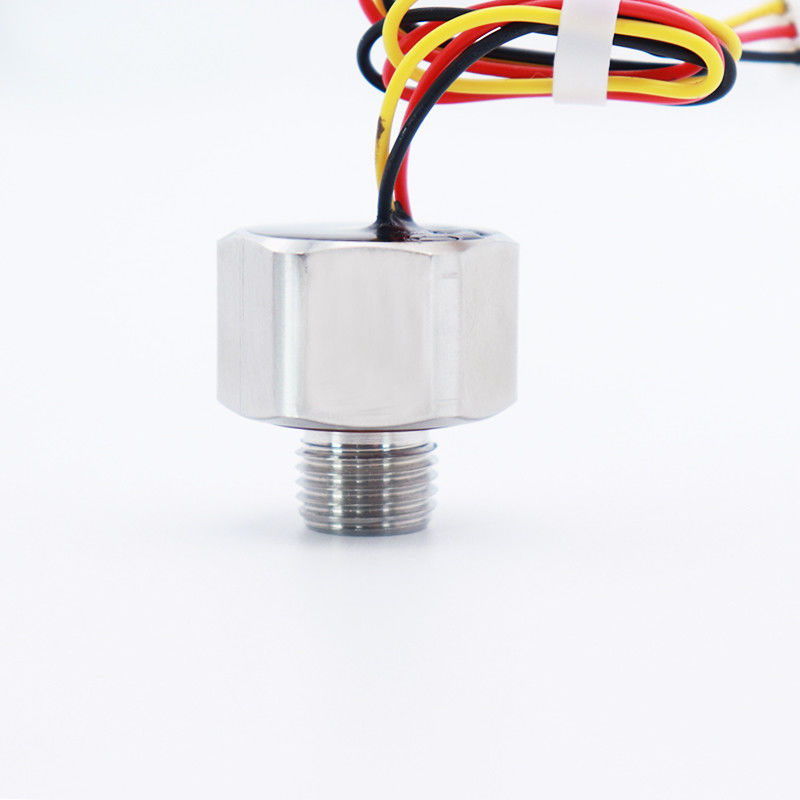

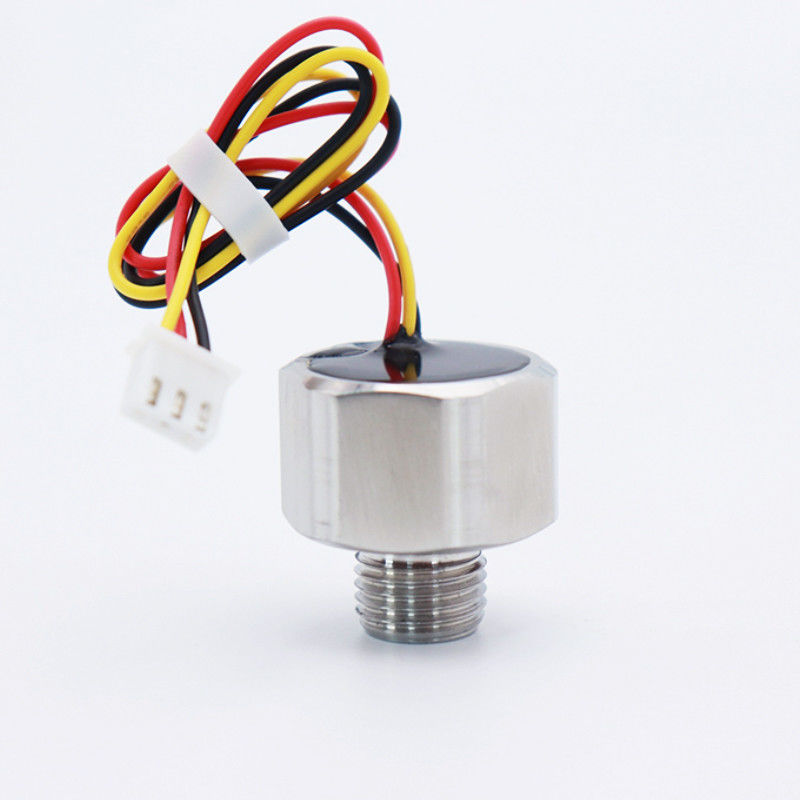

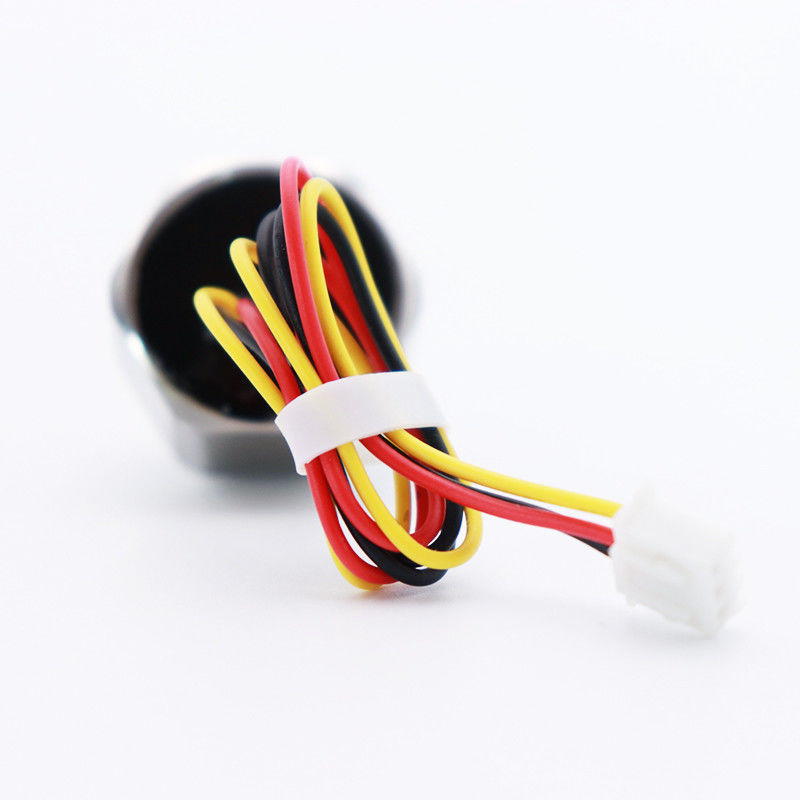

OEM Customization Micro IOT Pressure Sensor with I2C 4~20mA
WNK has 13-year experience of research, development, production and sales of sensors. With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.
After two years of research, development and repeatedly testings, our ceramic capacitive sensors have entered big quantity production stage. For different applications and installation methods, we offer OEM, ODM and customization services.
Detailed Technical Info:
|IOT Mini Pressure Sensor|
|Pressure type||Gauge, Absolute, Sealing gauge|
|Overpressure||300%F.S. (≤70kPa) 200%F.S.(≤25MPa)|
|Output signals||0.2-2.9V, SPI, I2C, 0.5-4.5V, 1-5V, 0-5V, 0~10V, 4~20mA|
|Zero Temp. Drift||±1.5%FS Max (-20~85℃)|
|Full Scale Temp. Drift||±1.5%FS Max (-20~85℃)|
|Pressure Connection||G1/4, 7/16-SAE, NPT, and other outputs|
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
