OEM Stainless Steel Level Sensor 4~20mA WNK8010 For Pool And River

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

OEM Stainless Steel Level Sensor 4~20mA WNK8010 For Pool And River

OEM Stainless Steel Level Sensor 4~20mA WNK8010 For Pool And River
OEM Stainless Steel Level Sensor 4~20mA WNK8010 For Pool And River OEM Stainless Steel Level Sensor 4~20mA WNK8010 For Pool And River OEM Stainless Steel Level Sensor 4~20mA WNK8010 For Pool And River

Large Image :  OEM Stainless Steel Level Sensor 4~20mA WNK8010 For Pool And River

Product Details:
Place of Origin: Hefei, CN
Brand Name: WNK
Certification: NEPSI, SGS, ISO9001, CE
Model Number: WNK8010
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs per month
Detailed Product Description
Output: 4~20mA, 0-10mA, 0-5V, 1-5V Level Range: 0-200m H2O
Overload: 150% Times Measuring Medium: Liquid
Accuracy: 0.2%FS, 0.5%FS Stability: 0.25%FS
Housing Material: SS304 Cable Material: Polyvinyl Fluoride, PTFE
Power Supply: 24VDC Ambient Temp: -20~85℃
High Light:

stainless steel level sensor

,

submersible level transmitter

,

OEM Stainless Steel Level Sensor



IP68 Stainless Steel Waterproof Submersible Level Sensor 4~20mA for Pool and River

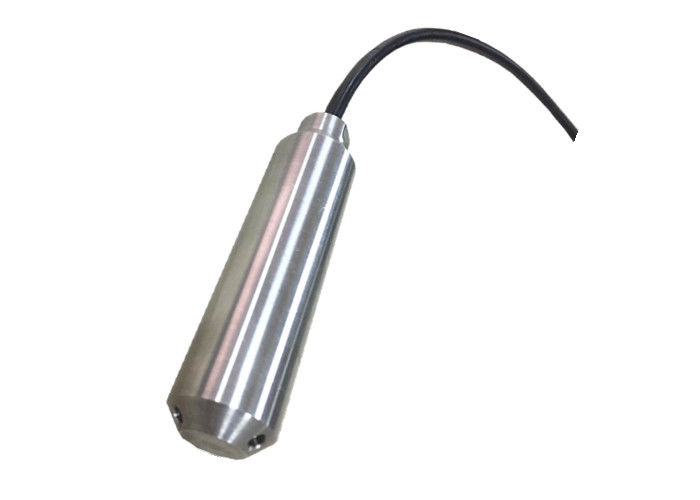

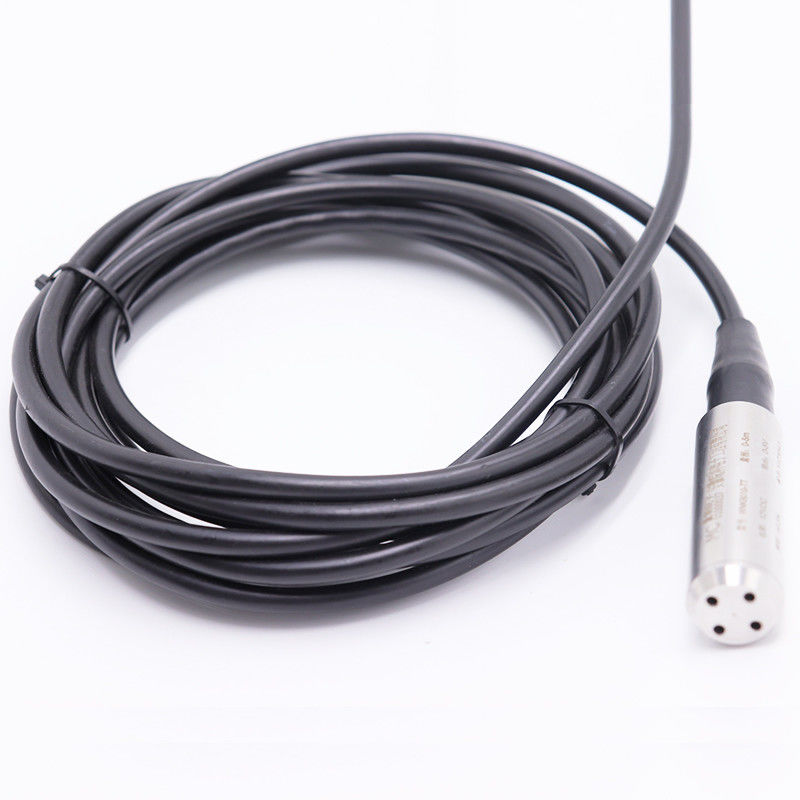

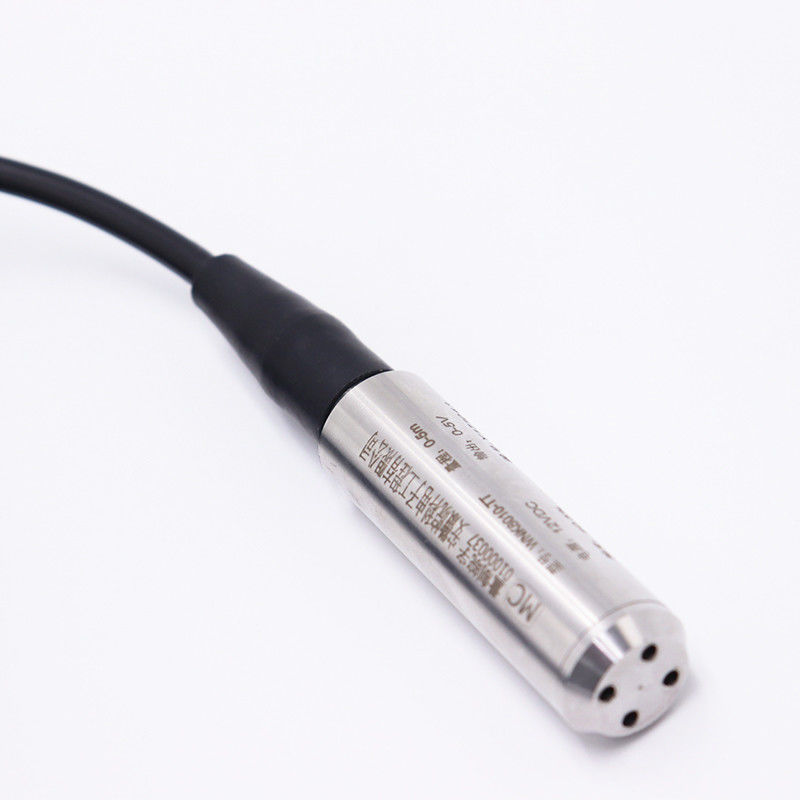

WNK8010 is a submersible water level sensor transducer suitable for liquid level or pressure and depth measurement. It is made of stainless steel housing. Its all stainless steel, suitable for immersion in most industrial liquids and oils.The welded housing is tested in-house via a helium leak tester to ensure proper protection. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage.Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. Our WNK8010 submersible fuel / water level sensor can be used to measure water level, fuel level and other liquid level; well depth; groundwater level; bore well, underground water, river etc,.



Quick information:

  • High accuracy up to 0.2%FS;
  • Wide application range 0-0.5~200m H2O;
  • Output 4~20mA, 0~10mA, 0~5V, 1~5V and others;
  • High overload 1.5 times;
  • Stability 0.25%FS/Year;
  • Corrosive resistance cable of PTFE;
  • Protection class IP68;
  • OEM &ODM



Detailed Technical Info:



Submersible Level Sensor
Adopting diffusion silicon oil-filled sensor
Output 4~20mA, 0-10mA, 0-5V, 1-5V and others
Level range 0-0.5~200mH2O
Overload 150% of sensor range
Measuring medium Liquid
Accuracy ±0.2%FS, ±0.5%FS
Stability 0.25%FS/ year
Housing material Stainless steel
Cable material Polyvinyl Fluoride, PTFE
Power Supply 24VDC
Ambient temperature -20~85 Deg C
Process temperature -20~85 Deg C
Compensation temperature -20~85 Deg C
Protection class IP68





Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
