Tank Liquid Submersible Level Sensor 4~20mA Anti-proof PTFE 0.25%FS Stability

Good quality Water Pressure Sensor for sales
Good quality Water Pressure Sensor for sales
I'm Online Chat Now

Tank Liquid Submersible Level Sensor 4~20mA Anti-proof PTFE 0.25%FS Stability

China Tank Liquid Submersible Level Sensor 4~20mA Anti-proof PTFE 0.25%FS Stability supplier
Tank Liquid Submersible Level Sensor 4~20mA Anti-proof PTFE 0.25%FS Stability supplier Tank Liquid Submersible Level Sensor 4~20mA Anti-proof PTFE 0.25%FS Stability supplier Tank Liquid Submersible Level Sensor 4~20mA Anti-proof PTFE 0.25%FS Stability supplier Tank Liquid Submersible Level Sensor 4~20mA Anti-proof PTFE 0.25%FS Stability supplier

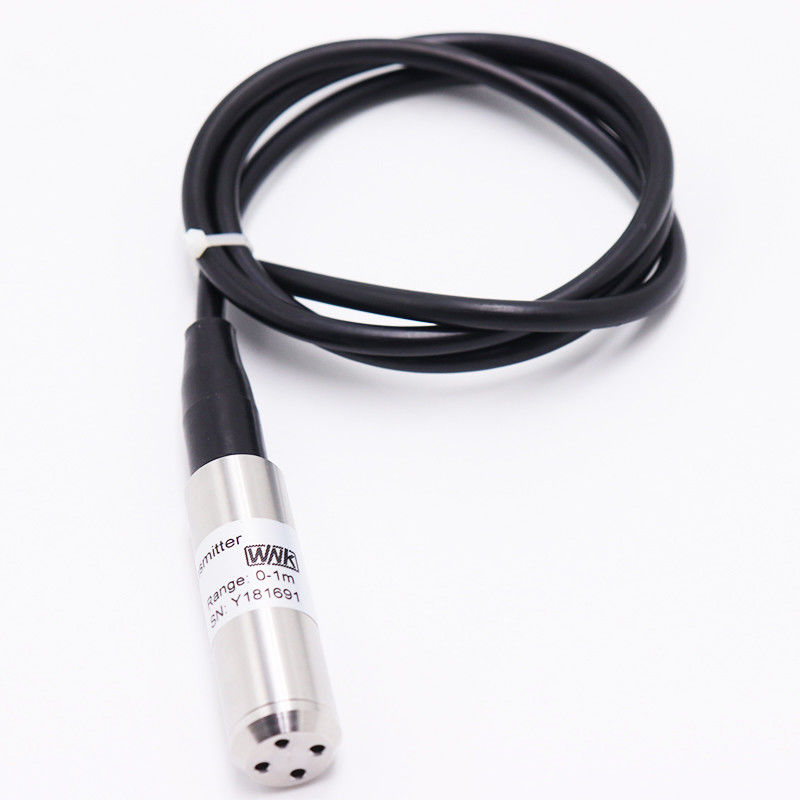

Large Image :  Tank Liquid Submersible Level Sensor 4~20mA Anti-proof PTFE 0.25%FS Stability

Product Details:

Place of Origin: Hefei, CN
Brand Name: WNK
Certification: SGS, ISO9001, CE
Model Number: WNK8010

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Output: 4~20mA, 0-10mA, 0-5V, 1-5V And Other Outputs Level Range: 0-200m H2O
Overload: 1.5 Times Of FS Stability: 0.25%FS
Accuracy: ±0.2%FS, ±0.5%FS Measuring Medium: Liquid
Ambient Temp: -20~85 Deg C Cable Material: Polyvinyl Fluoride, PTFE
Power Supply: 24VDC Housing Material: Stainless Steel 304



Anti-proof PTFE Tank Liquid Submersible Level Sensor 4~20mA



WNK submersible water level sensor transducer is suitable for liquid level or pressure and depth measurement. With high accuracy and high stability diffused silicon internal sensor, our level sensor offers good long-term level monitoring. It is made of stainless steel, suitable for immersion in most industrial liquids and oils.The welded housing is tested in-house via a helium leak tester to ensure proper protection. Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. We have two types of input cable:  Polyvinyl Fluoride and PTFE, which are suitable for non-corrosive and corrosive medium measurement.



Our WNK8010 submersible fuel / water level sensor can be used to measure water level, fuel level and other liquid level; well depth; groundwater level; bore well, underground water, river etc,.





Quick information:

  • High accuracy up to ±0.2%FS;
  • Wide application range 0-0.5~200m H2O;
  • Whole stainless steel 304 or 316 housing;
  • Various output 4~20mA, 0~10mA, 0~5V, 1~5V and etc;
  • High overload 1.5 times of full scale ;
  • Long-term stability 0.25%FS/Year;
  • Corrosive resistance immersion cable of PTFE;
  • Water proofing, ingress protection level up to IP68;
  • OEM, ODM, customize;



Detailed Technical Info:



Submersible Level Sensor
Adopting diffusion silicon oil-filled sensor
Output 4~20mA, 0-10mA, 0-5V, 1-5V and others
Level range 0-0.5~200mH2O
Overload 150% of sensor range
Measuring medium Liquid
Accuracy ±0.2%FS, ±0.5%FS
Stability 0.25%FS/ year
Housing material Stainless steel
Cable material Polyvinyl Fluoride, PTFE
Power Supply 24VDC
Ambient temperature -20~85℃
Process temperature -20~85℃
Compensation temperature -20~85℃
Protection class IP68





Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
