PT1000 Electronic Digital Temperature Switch for air liquid measurement

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

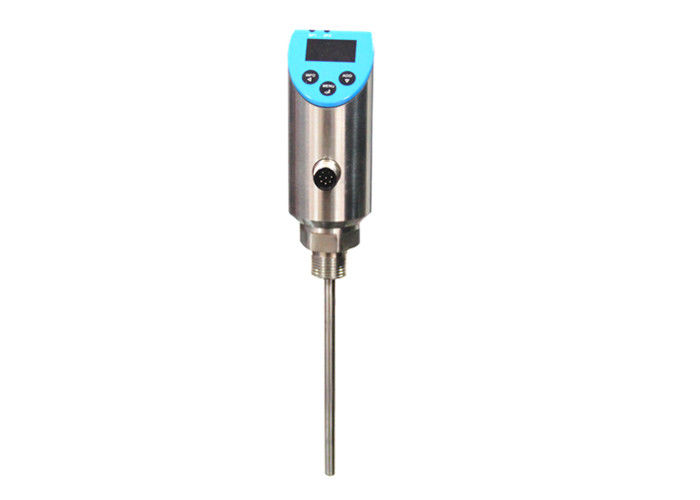

PT1000 Electronic Digital Temperature Switch for air liquid measurement

PT1000 Electronic Digital Temperature Switch for air liquid measurement
PT1000 Electronic Digital Temperature Switch for air liquid measurement

Large Image :  PT1000 Electronic Digital Temperature Switch for air liquid measurement

Product Details:
Place of Origin: Hefei, CN
Brand Name: WNK
Certification: SGS, ISO9001:2015
Model Number: STS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs per month
Detailed Product Description
Measuring Rang: -50...260 Deg C Accuracy: ≤±0.5℃
Output: 4...20mA/0...5V+PNP+MODBUS Input Sensor: PT100, PT1000
Power Supply: 12...30V DC Respond Time: ≤5s
Electrical Connector: M12 5pin Or 8pin Ingress Protection: IP65
Working Temp: -30~80 Deg C Easy Installation: Housing Rotatable 330°
Long-term Stability: ±0.3% Full Scale Per Year Display: OLED
OEM Service: OEM, ODM
High Light:

2 wire temperature transmitter

,

pump control switch



PT1000 Electronic Digital Temperature Switch for air liquid temperature measurement



The temperature switch STS is robustly designed and very easy to use. The STS is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc. It is temperature switch, transmitter and display in one and the same device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.



STS temperature switch supports PT100 or PT1000, it is with high measuring accuracy of 0.5℃. STS offers various functions including switch delay, switch point settable, display environment temperature, housing and display turnable and rotatable.



Quick Information:

  • Support PT100 or PT1000 input
  • Current output is 4~20mA+2PNP+MODBUS; voltage output is 0~5V/10V+ 2PNP+ MODBUS
  • Supporting Switching delay
  • Various analog output ways available
  • Switching points settable
  • Analog output span settable
  • Electrical connector is M12 5pin or 8pin
  • OLED self-luminous display
  • Display reversing 180°
  • Switching can be set normally open / normally closed
  • Housing with electrical connection against process connection rotatable 330°
  • Displaying temperature peak value and environment temperature
  • Parameters setting for Password protection
  • MODBUS protocol optional



Detailed Technical Info:



Measuring range -50~260℃
Accuracy ≤0.5℃
Supply Power 12…30V DC
Temp. Error ±0.02%FS/℃
Long-term Stability ±0.3%FS/Year
Analog output accuracy ±0.2%FS
Measuring Media Water, mineral-based hydraulic fluid and Synthetic oil
Wetted material Stainless steel, Nitrile Butadiene Rubber and PTFE

Output Configurations



switching+voltage+ communication 2×PNP + 0V~5VDC/10VDC + MODBUS
switching+current+ communication 2×PNP + 0mA/4mA~20mADC + MODBUS
Switching current 1.0A(Max.)
Switching type normally open , normally closed (settable)
Switching respond time <10ms
Switching delay 0.00s~1000.0s
Switching motion mode delay or windows mode
Analog signal output and maximum ohmic load RL Current output 0/4…20mA,20…4/0mA RL≤0.5kΩ
Voltage output 0…5/10V,5/10…0V RL>10kΩ
Screen display OLED
Menu language Chinese,English
Switching instruction 2X Red LED
Displaying pressure units kPa, mm, cm, m
Buttons 3X blue back-lighted touch buttons
Displaying supplementary variables environment temp., analog output value, max. Peak value,mini. peak value
Supplementary variables displaying mode fixed displaying or INFO button switching Display
Working temperature -30℃~80℃
Media temperature 0℃~60℃
Storage temperature -40℃~80℃
Electromagnetism compatible GB/T 17626.2/3/4-2006
Shock resistance ≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
Vibration resistance ≤50g/11ms(IEC 60068-2-27-2008)
Protection Rating IP65 / IP68





Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
