Product Details:
Payment & Shipping Terms:
|
| Analog Output: | 4~20mA, 0.2-2.9V, 0.5-4.5V ,0-5V | Digital Output: | SPI, I2C |
|---|---|---|---|
| Accuracy: | 0.5%FS, 1%FS, 2%FS | Operation Temperature: | -40~125℃ |
| Range: | 0-60MPa | Sensor Type: | Ceramic Capacitive Or Diffused Silicon |
| Housing: | SS304, SS316, Brass | Overload: | 2.5x FS |
| Proof Pressure: | 3x FS | OEM: | OEM, ODM Welcome |
| Ingress Protection: | IP67 | ||
| High Light: | waterproof pressure sensor,i2c pressure sensor |
||

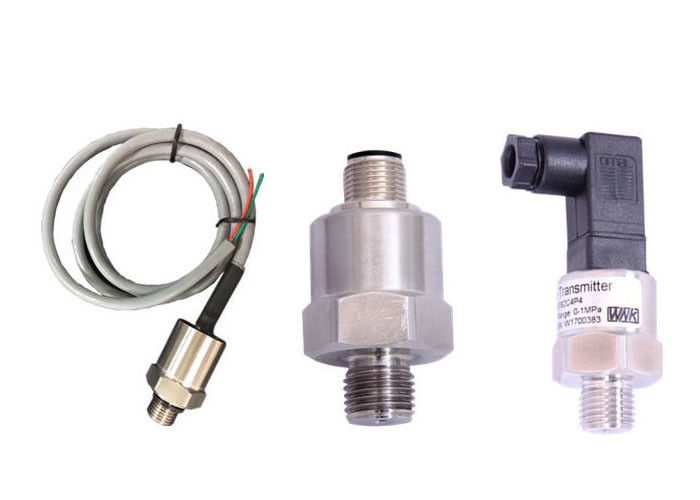

Low cost water supply system pressure sensor 4~20mA, 0.2-2.9V
WNK80MA is a high quality ceramic capacitive pressure sensor. Its operation temperature is -40~150℃, with various outputs of I2C, SPI, 0.2-2.9v, 4~20mA, 0.5-4.5V. To ensure sealing of Freon and other media, WNK80MA is designed with 7/16-20UNF deflector. WNK80MA supports housing material of SS304, SS316 or brass. It has accuracy options of 0.5%FS and 1%FS.
And as IIOT and IOT require big amount of low cost low consumption good performance pressure sensors, WNK offers low cost water and air pressure sensor 0.2-2.9V, I2C or SPI output with low power. OEM, ODM and customization are available.
Features:
• Low cost ceramic capacitive or diffused silicon pressure sensor;
• Accuracy choices of 0.5%FS, 1%FS and 2%FS;
• Pressure range 0~60MPa
• SS304, SS316, aluminium or copper housing;
• 0.5…4.5V, 4…20mA, 1...5V and 0...10V analog output; I2C and SPI digital output;
• Low consumption of 3V ~30VDC;
• Various process thread or other customization port acceptable;
• Accurate, stable and reliable;
• OEM, ODM and customization available;
Performances:
| Input | |
| Pressure type | Gauge pressure, sealing pressure, absolute pressure |
| Measuring range | -0.1~60MPa |
| Output | |
| Analog | 0.5…4.5V, 4…20mA, 1...5V, 0...10V, 0...5V |
| Analog | I2C, SPI |
| Accuracy | |
| 0.2% | Linearity, hysteresis, repetitiveness:＜0.2% sensor full range |
| 0.5% | Linearity, hysteresis, repetitiveness:＜0.5% sensor full range |
| Overload | |
| 2.5X pressure sensor full scale | |
| Housing Info. | |
| Housing Material | SS 304, Cu, Al |
| Wetting Material | SS316L |
| Ingress Protection | IP67 |
Power Supply
| Supply voltage | 5V 24VDCregulated power supply, |
| Supply voltage effect |
5V supply voltage effect: min.3V/max.5.5V |
Applications:
• Pressure measurement of gas, vapor or liquid in various areas;
• Liquid level, volume or mass measurement;
• Integrated in a variety of user-defined solutions;
• Smart water and gas management system, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and etc;
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
