100psi 150psi 200psi IOT Pressure Sensor With Analog And Digital Output

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

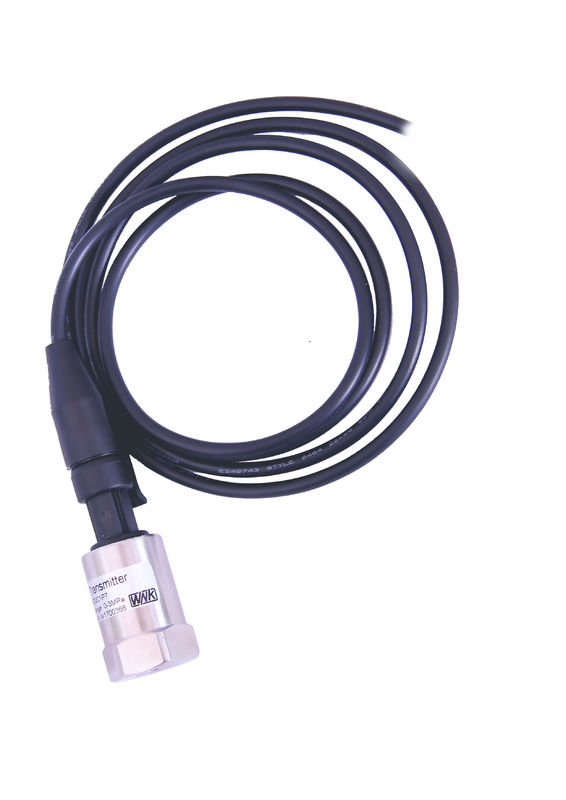

100psi 150psi 200psi IOT Pressure Sensor With Analog And Digital Output

100psi 150psi 200psi  IOT Pressure Sensor With Analog And Digital Output
100psi 150psi 200psi  IOT Pressure Sensor With Analog And Digital Output 100psi 150psi 200psi  IOT Pressure Sensor With Analog And Digital Output 100psi 150psi 200psi  IOT Pressure Sensor With Analog And Digital Output 100psi 150psi 200psi  IOT Pressure Sensor With Analog And Digital Output 100psi 150psi 200psi  IOT Pressure Sensor With Analog And Digital Output 100psi 150psi 200psi  IOT Pressure Sensor With Analog And Digital Output

Large Image :  100psi 150psi 200psi IOT Pressure Sensor With Analog And Digital Output

Product Details:
Place of Origin: Hefei, China
Brand Name: WNK
Certification: CE, SGS, ISO9001
Model Number: WNK80Mpa
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 pcs per month
Detailed Product Description
Pressure Range: 0-600bar Output: I2C, SPI, 0.5-4.5V, 4-20ma And Customization
Respond Time: ≥1ms Overload Pressure: 3-5 Times
Material: 304SS 316SS Sensor Type: Iot Pressure Sensor
Working Temperature: -40 -135C Warranty: 12 Months
Ingress Protection: IP67 Accuracy: 0.25%FS, 0.5%FS
High Light:

micro pressure sensor

,

oem pressure sensor

100psi 150psi 200psi IOT Pressure Sensor With Analog And Digital Output

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

100psi 150psi 200psi  IOT Pressure Sensor With Analog And Digital Output 0100psi 150psi 200psi  IOT Pressure Sensor With Analog And Digital Output 1100psi 150psi 200psi  IOT Pressure Sensor With Analog And Digital Output 2100psi 150psi 200psi  IOT Pressure Sensor With Analog And Digital Output 3

Applications



- Automobile, Compressor and Refrigeration Industry
- Engineering machinery
- Pressure control and monitor
- Water treatment system
- Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances
- Factory Automation
- Fluid Control and Instrumentation Systems





Features :



• Excellent resistance to corrosion and abrasion resistance;
• Adapt to pollution and corrosive environments;
• Flat large round diaphragm, easy to install;
• Rapid response, no hysteresis;
• Wide operating temperature range;
• Sensor-specific signal conditioning;
• 0.5 ... 4.5V voltage output or I2C digital output, 4-20mA output;
• Accurate, stable and reliable;



Technical Data


IOT Pressure Sensor
Pressure range  -100kpa...0 ~ 600Bar
Pressure type Gauge, Absolute, Seal, Vacuum
Overpressure 300%F.S. (≤70kPa) 200%F.S.(≤25MPa)
Output signals 0.2-2.9V, SPI, I2C, 0.5-4.5V, 1-5V, 0-5V, 0~10V, 4~20mA
Accuracy ±0.5%FS, ±1%FS
Compensation Temp. -20~70℃
Operation Temp. -40~125℃
Storage Temp. -40~125℃
Zero Temp. Drift ±1.5%FS Max (-20~85℃)
Full Scale Temp. Drift ±1.5%FS Max (-20~85℃)
Pressure Connection G1/4, 7/16-SAE, NPT, and other outputs
Ingress Protection IP67
Housing SS316, SS304





 Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs supported I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other
6. Our products have been exported to most of the EU countries, North America, South East Aisia and other countries and regions.



Company Information

pressure transducer 4-20 ma

Factory

pressure transducer 4-20 ma

Exhibition

pressure transducer 4-20 ma

Our Certificate

pressure transducer 4-20 ma

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
