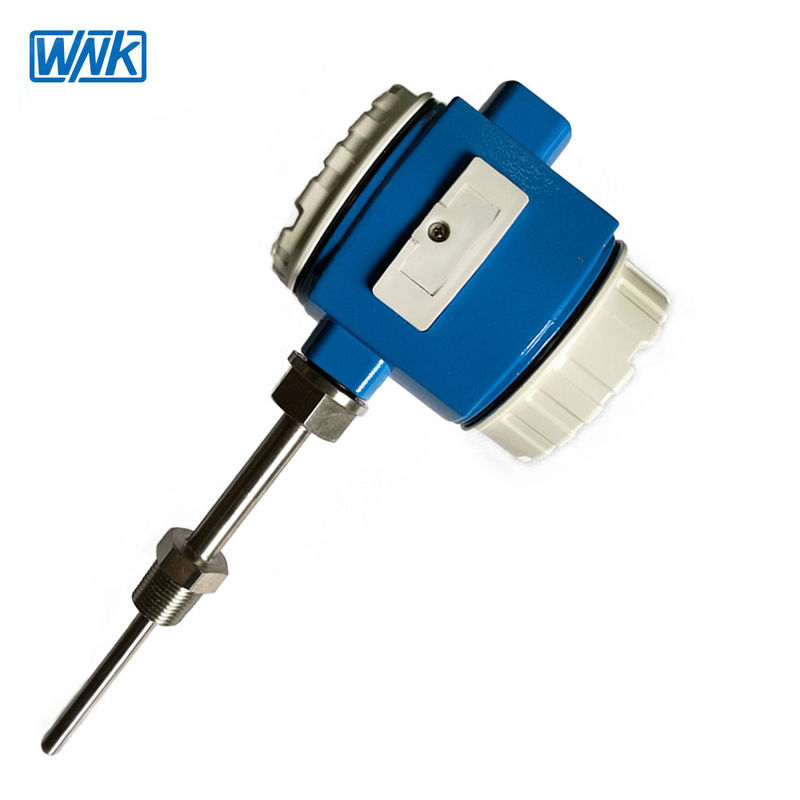

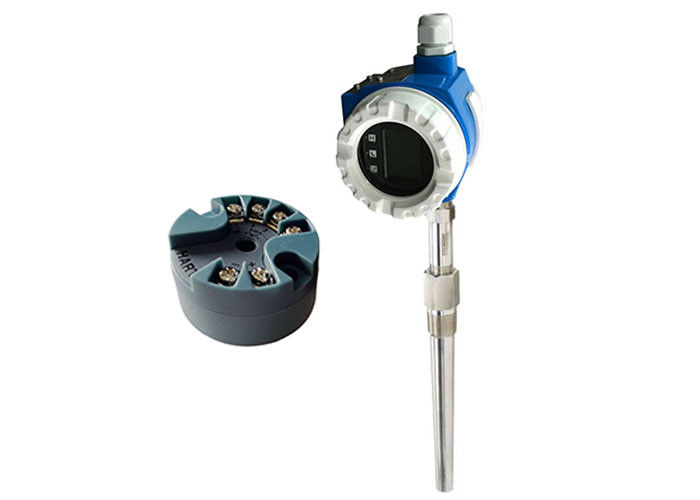

Multi-Channel Smart Temperature Transmitter Universal Input 4-20mA with Profibus-DP Protocol

Good quality Water Pressure Sensor for sales
Good quality Water Pressure Sensor for sales
I'm Online Chat Now

Multi-Channel Smart Temperature Transmitter Universal Input 4-20mA with Profibus-DP Protocol

China Multi-Channel Smart Temperature Transmitter Universal Input 4-20mA with Profibus-DP Protocol supplier
Multi-Channel Smart Temperature Transmitter Universal Input 4-20mA with Profibus-DP Protocol supplier Multi-Channel Smart Temperature Transmitter Universal Input 4-20mA with Profibus-DP Protocol supplier Multi-Channel Smart Temperature Transmitter Universal Input 4-20mA with Profibus-DP Protocol supplier

Large Image :  Multi-Channel Smart Temperature Transmitter Universal Input 4-20mA with Profibus-DP Protocol

Product Details:

Place of Origin: ANHUI, CHINA
Brand Name: WNK
Certification: ISO
Model Number: WNK6XT

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export carton packing
Delivery Time: 3-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Usage: Industrial Theory:: Temperature Transmitter
Accuracy: 0.075%F.S, 0.1%F.S. Housing: Aluminium
Output: 4-20mA, Profibus-DP Power Supply: 24V(standard)
Temperature Range: -270~800 ℃ (PT100)

Multi-Channel Smart Temperature Transmitter Universal Input 4-20mA with Profibus-DP Protocol



Universal Input Smart Profibus-DP Multi-channel Temperature Transmitter

Our PROFIBUS-DP field bus WNK6XT temperature transmitter is approved by PROFIBUS Nutzerorganisation e.V. For temperature sensor we can provide the thermal resister, thermocouple etc usually used in industry, we can also provide special sensor, including high temperature type,high pressure type,health type,with special material or with coating etc sensor. Customized sensor is also acceptable..



Product Features
1. 4 Channel Output.

2. Universal input.
3. Install easily, more flexiable
4. 4~20mA/Profibus DP output

5. Self-diagnostics function


Product Spec
Measuring media liquid, gas
Measuring range -270~800 ℃ (PT100 thermal resistor)
0~1300℃, (Thermocouple K)
Power supply range 9~45V (9~24V, Ex)
Output signal 4~20mA/Hart/Profibus PA
Digital Accuracy ±0.01℃, PT100 input
Internal cold end compensation error <0.25℃±0.1%/10℃
Temperature drift ±0.05%/10℃full-scale range
0.1% between-10°C to 60°C
Effect of power supply on range <0.005%/V full-scale range
Long term drift <0.1/year
Allowable temperature Ambient temperature Storage temperature
T4 Safe operation(T6)
-40...85℃ -40...60℃ -40...95℃
Protection Class IP66/67
Relative humidity ≤98%, condensation allowed
Electromagnetic compatibility Accordance with EN 61 326





Product application

Multi-Channel Smart Temperature Transmitter Universal Input 4-20mA with Profibus-DP Protocol



FAQ



Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
