Input Type Hydrostatic Submersible Level Sensor With 4-20mA 1-5V Output

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

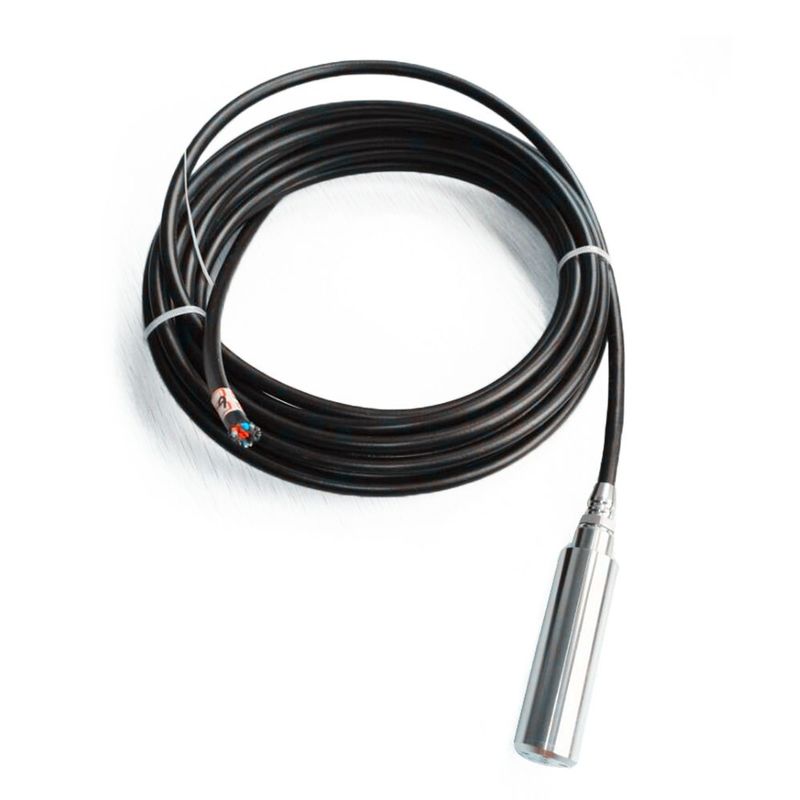

Input Type Hydrostatic Submersible Level Sensor With 4-20mA 1-5V Output

Input Type Hydrostatic Submersible Level Sensor With 4-20mA 1-5V Output
Input Type Hydrostatic Submersible Level Sensor With 4-20mA 1-5V Output Input Type Hydrostatic Submersible Level Sensor With 4-20mA 1-5V Output

Large Image :  Input Type Hydrostatic Submersible Level Sensor With 4-20mA 1-5V Output

Product Details:
Place of Origin: Hefei, China
Brand Name: WNK
Certification: CE, Rhos
Model Number: WNK8010-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: Custom Packaging, Sea-worthy Air-worthy Packing
Detailed Product Description
Accuracy: 0.2%, 0.5% , 1.0% FS Pressure Range:: -10Kpa ~ 60MPa
Power Supply:: 24VDC 12VDC 5VDC 8-30VDC Material: 304 SS, 316L
Media: Water, Liquid Type: Level
IP Rating:: IP68 Ex-Proof: Exia CT4
High Light:

stainless steel level sensor

,

submersible level transmitter

,

Input Type Submersible Level Sensor

Input Type Hydrostatic Submersible Level Sensor with 4-20mA 1-5V Output

Input Type Hydrostatic Submersible Level Sensor With 4-20mA 1-5V Output 0



Product Description



Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.





Applications

Water tank level measurement and control.

Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)



Features

Adopting diffusion silicon oil-filled sensor

Max measure range up to 200 meters or more

High Stability, provide 0.1, 0.2, 0.5 accuracy for option

Factory direct price







Specifications



Output 4~20mA, 0-10mA, 0-5V, 1-5V, 0.5-4.5V , customization
Level range 0-0.5~200mH2O
Overload 150% of sensor range
Measuring medium Liquid
Accuracy ±0.2%FS, ±0.5%FS
Stability 0.25%FS/ year
Housing material Stainless steel
Cable material Polyvinyl Fluoride, PTFE
Power Supply 24VDC
Ambient temperature -20~85
Process temperature -20~85
Compensation temperature -20~85
Protection class IP68





Input Type Hydrostatic Submersible Level Sensor With 4-20mA 1-5V Output 1



Ordering Code



Input Type Hydrostatic Submersible Level Sensor With 4-20mA 1-5V Output 2
