Product Details:
Payment & Shipping Terms:
|
| Accuracy: | 0.25%, 0.5% , 1.0% FS | Pressure Range:: | 0-200 Meter |
|---|---|---|---|
| Power Supply:: | 24VDC 12-30VDC | Material: | 304 SS, 316L |
| Media: | Water, Liquid, Waste Water, Sea Water | Type: | Level Sensor, Level Transmitter |
| IP Rating:: | IP68 | Ex-Proof: | Exia CT4 |
| Output: | 4-20mA 05-4.5V I2C RS485 | ||
| High Light: | submersible level transmitter,liquid level sensor,4-20ma Wastewater Level Sensor |
||
Product Description

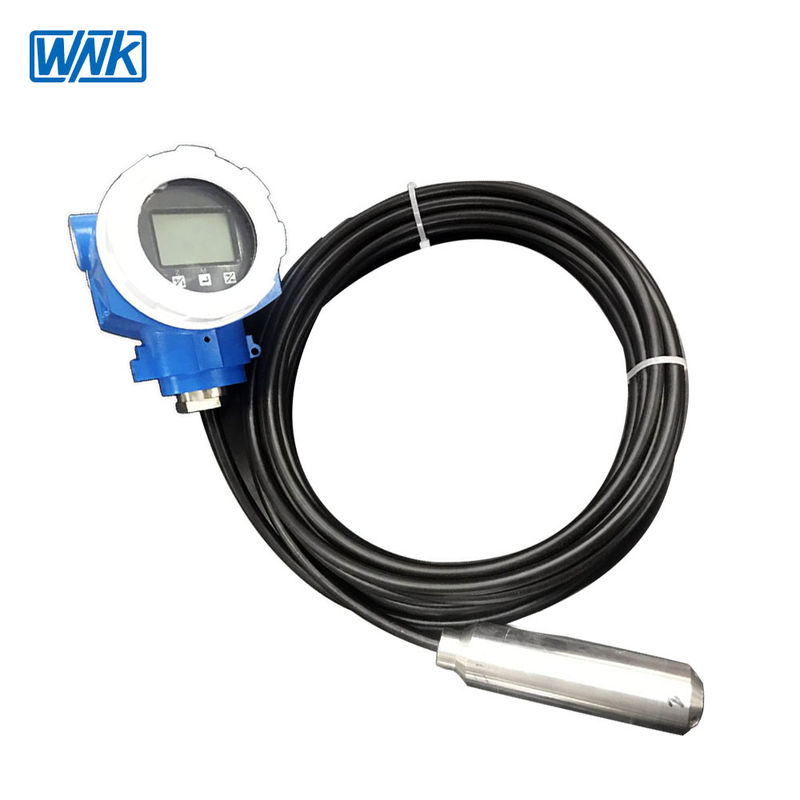

Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
Applications
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
Specifications
| Output | 4-20mA, 0-5V, 1-5V, customization |
| Measured range | 0-0.5~200mH2O |
| Max overload | 150% of sensor range |
| Applicable media | Liquid, Water |
| Accuracy | ≤ ±0.2%FS, |
| Long Term Stability | ±0.25% FS/year |
| Housing material | Stainless steel |
| Cable material | Polyvinyl Fluoride, PTFE |
| Power supply | 24V DC |
| Operating temperature | -30~85℃ |
| Compensation temperature | -20~70℃ |
| Protection class | IP68 |
Ordering Code
Certifications
RFQ
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
