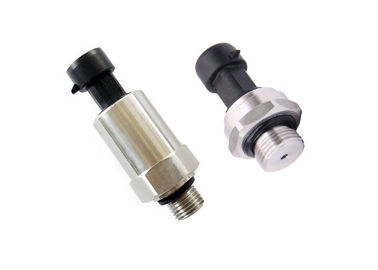

0.5-4.5V IIC Output Compact Pressure Sensor Schrader Deflator For Refrigerant

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

0.5-4.5V IIC Output Compact Pressure Sensor Schrader Deflator For Refrigerant

0.5-4.5V IIC Output Compact Pressure Sensor Schrader Deflator For Refrigerant
0.5-4.5V IIC Output Compact Pressure Sensor Schrader Deflator For Refrigerant 0.5-4.5V IIC Output Compact Pressure Sensor Schrader Deflator For Refrigerant 0.5-4.5V IIC Output Compact Pressure Sensor Schrader Deflator For Refrigerant 0.5-4.5V IIC Output Compact Pressure Sensor Schrader Deflator For Refrigerant

Large Image :  0.5-4.5V IIC Output Compact Pressure Sensor Schrader Deflator For Refrigerant

Product Details:
Place of Origin: Hefei, China
Brand Name: WNK
Certification: CE, SGS, ISO9001
Model Number: WNK80MA
Payment & Shipping Terms:
Minimum Order Quantity: 5 piece
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pcs per month
Detailed Product Description
Range: -100Kpa - 10Mpa Power Input: 5V DC, 9-30V
Output: 0.5-4.5V, IIC, 4-20ma Pressure Overload: 5 Times
Weld Parts: 304 Stainless Temperature Compensation: -40C~70C
Accuracy: 0.5%, 1.0%FS
High Light:

electronic pressure sensor

,

oem pressure sensor

,

0.5-4.5V IIC Compact Pressure Sensor

0.5-4.5V IIC Output Compact Pressure Sensor Transducer For Refrigerant With Schrader Deflator


Description
WNK80MA is a series of high performance with compact size,  high integration, small size, high precision, good stability, fast response speed, low power consumption, good consistency, resistance to overload ability strong impact and interference. With the function of over-voltage and over-current protection and the full temperature linear temperature compensation of this product which widely used in engine pipe of vehicle and ship, central air conditioner and freezing device, water treatment engineering, building water supply, industrial process detection and control, hydraulic pneumatic control engineering and other fields.






Features :
1. Temperature range: -20 to 85℃
2. Wide operation temperature range -40~125℃
3. High performance ceramic capacitive pressure sensor
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available



Technical Data

Input
Pressure Type Gauge Pressure , Absolute Pressure, Sealing Pressure
Pressure Range -100Kpa - 60Mpa
Accuracy 0.2%, 0.5%
Power Supply 5VDC, 12-32VDC
Measuring Media Gas, Steam, Liquid, Oil
Output
Analog 4-20mA, 0.5-4.5V / 1-5V / 0-5V
Digital I2C, SPI
Operation Condition and Temperature
Compensation Temperature -20...75℃
Storage Temperature -45 ... 85℃
Ambient Temperature -45 ... 85℃
Medium Temperature -40 ... 125℃
Material and Protection
Ingress Protection IP65, IP67
Housing Material 304SS, 316L
