Food And Beverage Industrial Sanitary Flat Membrane Digital Pressure Sensor

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

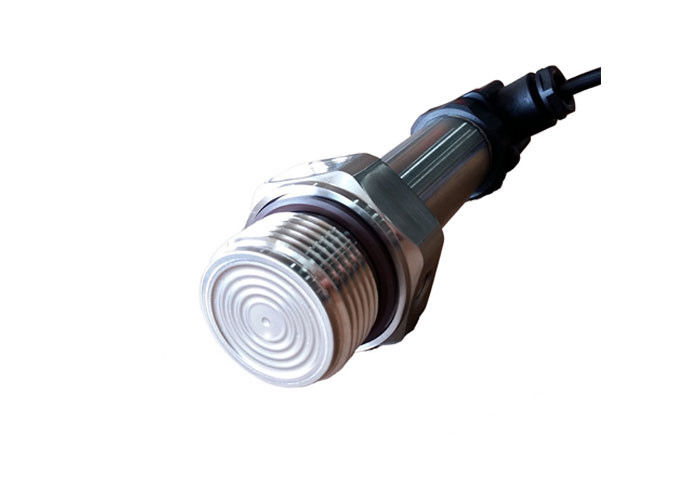

Food And Beverage Industrial Sanitary Flat Membrane Digital Pressure Sensor

Food And Beverage Industrial Sanitary Flat Membrane Digital Pressure Sensor
Food And Beverage Industrial Sanitary Flat Membrane Digital Pressure Sensor Food And Beverage Industrial Sanitary Flat Membrane Digital Pressure Sensor

Large Image :  Food And Beverage Industrial Sanitary Flat Membrane Digital Pressure Sensor

Product Details:
Place of Origin: Hefei, CN
Brand Name: WNK
Certification: CE, SGS, ISO9001, NEPSI
Model Number: WNK805
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs per month
Detailed Product Description
Pressure Range: -1bar - 700bar Long Term Stability: 0.25%FS, 0.5%FS
Electrical Connection: Hirschmann Type: Gauge, Absolute, Negative
Working Temperature: -30-70C Proof: IP67
Power: 24VDC, 12-32V Overload Pressure: 150%
High Light:

digital pressure sensor

,

sanitary pressure transducer



Food And Beverage Industrial Sanitary Digital Flat Membrane Pressure Sensors





Description



WNK805 small size pressure transmitter adopts imported high accuracy and high stability chips and excellent assembly technology, by taking precise temperature compensation, and puts circuit board in safe stainless steel housing. Diffused silicon strain gage bridge is put on sensitive chips, thus switching of pressure and power is in one and same device, ensuring compact and reliable structure.


WNK805 is widely applied in gauge or absolute pressure measurement in fields of aerospace, communication, irrigation works, oil, chemical, power, meteorology, laboratory and etc. It could also be used for measuring negative pressure, vacuum degree and etc.



Applications:

process control system
medical
biological products
food hygiene





Detailed Technical Info:



Compact Pressure Transmittter with SS304 Housing
Pressure range 0-0.2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa
Rangedown 100:1
Permissible temperature Compensation Temperature Media Temperature Environment Temperature Storage Temperature
-30~70℃ -20~85℃ -20~85℃ -45~85℃
Accuracy 0.1%FS, 0.25%FS, 0.5%FS, 1.0%FS
Output signals 4~20mA, 0~5V, 1~5V, 0~10V
Long-term stability 0.25%FS/year
Power supply 24VDC
Protection class IP65
Electrical connection DIN43650, M12, Direct lead, Small Hirschman
Mechanical connection G1/2, M20*1.5,1/2NPT,1/4NPT,customization
Repeat 0.05, 0.1%FS
Overload 1.5~2 times
Housing material SS304





Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
