General Industrial Smart Pressure Transmitter For Hydraulic / Liquid / Water Level Measure

Good quality Water Pressure Sensor for sales
Good quality Water Pressure Sensor for sales
I'm Online Chat Now

General Industrial Smart Pressure Transmitter For Hydraulic / Liquid / Water Level Measure

China General Industrial Smart Pressure Transmitter For Hydraulic / Liquid / Water Level Measure supplier
General Industrial Smart Pressure Transmitter For Hydraulic / Liquid / Water Level Measure supplier General Industrial Smart Pressure Transmitter For Hydraulic / Liquid / Water Level Measure supplier

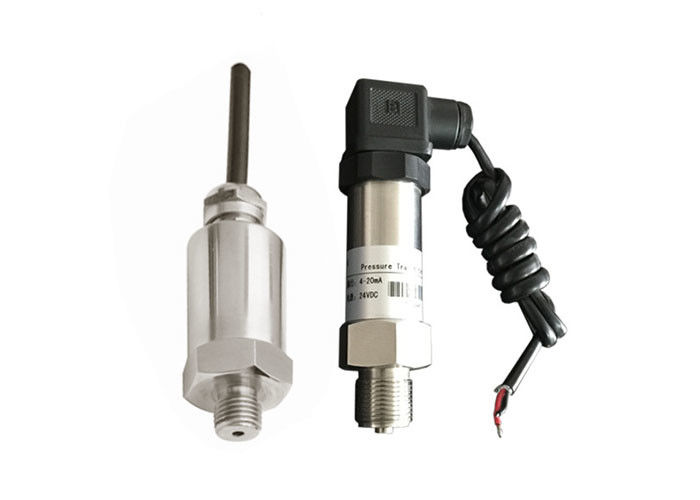

Large Image :  General Industrial Smart Pressure Transmitter For Hydraulic / Liquid / Water Level Measure

Product Details:

Place of Origin: Hefei, CN
Brand Name: WNK
Certification: CE, SGS, ISO9001, NEPSI
Model Number: WNK805

Payment & Shipping Terms:

Minimum Order Quantity: 2 piece
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Units Per Month
Contact Now
Detailed Product Description
Input Pressure: 0-0.2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa Accuracy: 0.2%FS, 0.5%FS
Power Input: 24V DC, 12-30VDC Working Temperature: -20-70C
Applicable Medium: Water, Gas, Steam, Liquid, Oil Pressure Port: G1/2, Other Customized
Wetted Parts: SS304 Warranty: 12 Months

General Industrial Application Smart Pressure Transmitter For Hydraulic, Liquid, Water Level Measure





Description

WNK small size pressure transmitter is widely applied in gauge or absolute pressure measurement in fields of aerospace,  and adopts imported high accuracy and high stability chips and excellent assembly technology,  Applicable for irrigation works, oil, chemical, power, meteorology, laboratory and etc. It could also be used for measuring negative pressure, vacuum degree and etc.





Product Feature

Wide measuring range
Stainless steel structure,various pressure port
Laser marking,exquisite shape,beautiful and meticulous
Intelligent circuit board,no moving parts,stable and reliable
Efficient lightning protection and strong anti RFI&EMI protection
Explosion proof ExiaIICT6







 Data Sheet



Compact Pressure Transmittter with SS304 Housing
Pressure range 0-0.2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa
Rangedown 100:1
Permissible temperature Compensation Temperature Media Temperature Environment Temperature Storage Temperature
-30~70℃ -20~85℃ -20~85℃ -45~85℃
Accuracy 0.1%FS, 0.25%FS, 0.5%FS, 1.0%FS
Output signals 4~20mA, 0~5V, 1~5V, 0~10V
Long-term stability 0.25%FS/year
Power supply 24VDC
Protection class IP65
Electrical connection DIN43650, M12, Direct lead, Small Hirschman
Mechanical connection G1/2, M20*1.5,1/2NPT,1/4NPT,customization
Repeat 0.05, 0.1%FS
Overload 1.5~2 times
Housing material SS304
