Hefei WNK Smart Technology Co.,Ltd
Home ProductsSmart Temperature Transmitter

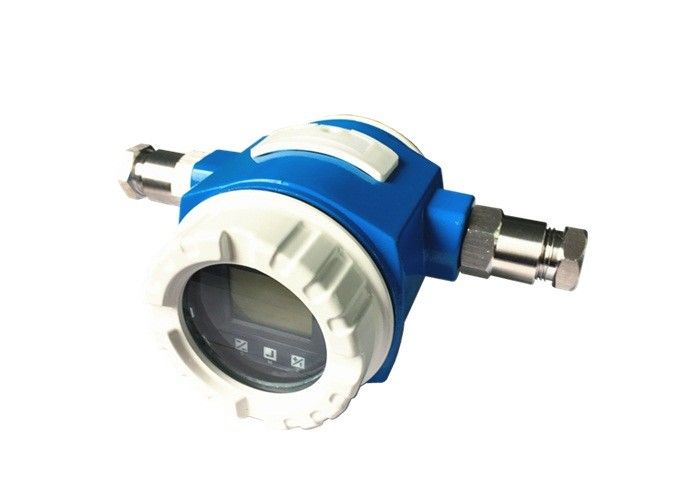

Intrinsically Safe Head Mounted Temperature Transmitter For Industrial Temperature Control

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

Intrinsically Safe Head Mounted Temperature Transmitter For Industrial Temperature Control

Intrinsically Safe Head Mounted Temperature Transmitter For Industrial Temperature Control
Intrinsically Safe Head Mounted Temperature Transmitter For Industrial Temperature Control Intrinsically Safe Head Mounted Temperature Transmitter For Industrial Temperature Control Intrinsically Safe Head Mounted Temperature Transmitter For Industrial Temperature Control Intrinsically Safe Head Mounted Temperature Transmitter For Industrial Temperature Control Intrinsically Safe Head Mounted Temperature Transmitter For Industrial Temperature Control Intrinsically Safe Head Mounted Temperature Transmitter For Industrial Temperature Control

Large Image :  Intrinsically Safe Head Mounted Temperature Transmitter For Industrial Temperature Control

Product Details:
Place of Origin: Hefei, China
Brand Name: WNK
Certification: ISO
Model Number: WNK6T-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard export carton packing
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pcs per month
Detailed Product Description
Temperature Range: 0~1300ºC, (Thermocouple K) Voltage Input: 9~45V (9~24V, Ex)
Signal Output: 4~20mA/Hart/Profibus PA Wetted Parts: Aluminium 304SS, Other Custom Materials
Accuracy: 0.2%FS Ex-proof: ExiaII CT4
Medium: Liquid, Gas And Steam
High Light:

liquid temperature sensor

,

industrial temperature sensor

Intrinsically Safe Head Mounted Smart Temperature Transmitter For Industrial Temperature Control




WNK6T Series Temperature Transmitter with thermal couple(resistance) is an on-site installation type temperature transmitter of temperature series instruments. It consists of thermocouple, thermal resistance and temperature transmitter module, adopting two-wire system, with nonlinear calibration circuit, and can be used to directly measurement the temperature of liquid, gas media and special matter within -200C~+1300C during industrial process, converting temperature signal into current output signal of 4-20mADC which is linear to temperature signal, and sending to displayer, adjusting recorder or computer for total distributed control.





Advantages

1. High precision, digital precision up to :±0.01ºC
2.To reduce the overall cost of installation,maintenance and running
3. Install easily, more flexiable

4. LCD display, Menu-guided operation.

5, Self-diagnostics function



Data Sheet
Measuring media liquid, gas and steam
Measuring range -270~800 ºC (PT100 thermal resistor)
0~1300ºC, (Thermocouple K)
Input Thermocouple, RTD, MV, Resistive sensor
Power supply range 9~45V (9~24V, Ex)
Output signal 4~20mA/Hart/Profibus PA
Digital Accuracy ±0.01ºC, PT100 input
Internal cold end compensation error <0.25ºC±0.1%/10ºC
Temperature drift ±0.05%/10ºCfull scale range
0.1% between-10°C to 60°C
Effect of power supply on range <0.005%/V full-scale range
Long term drift <0.1/year
