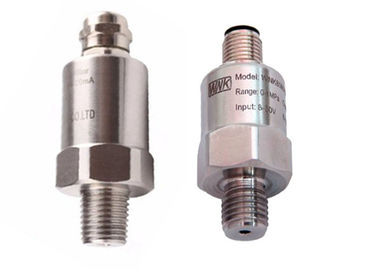

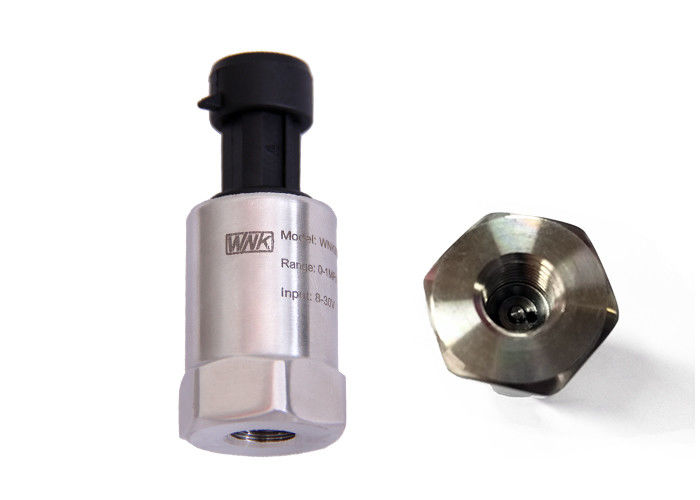

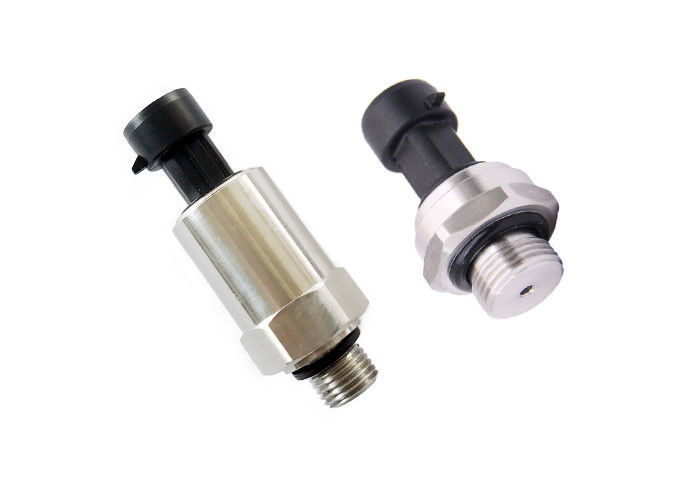

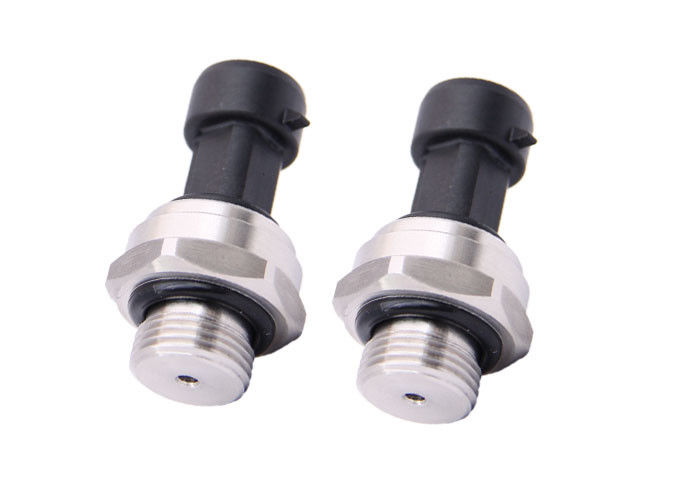

Air Piezoresistive Compact Pressure Sensor For Oil Gas Water WNK80MA

Air Piezoresistive Compact Pressure Sensor For Oil Gas Water WNK80MA
Air Piezoresistive Compact Pressure Sensor For Oil Gas Water WNK80MA Air Piezoresistive Compact Pressure Sensor For Oil Gas Water WNK80MA Air Piezoresistive Compact Pressure Sensor For Oil Gas Water WNK80MA Air Piezoresistive Compact Pressure Sensor For Oil Gas Water WNK80MA

Large Image :  Air Piezoresistive Compact Pressure Sensor For Oil Gas Water WNK80MA

Product Details:
Place of Origin: Hefei, China
Brand Name: WNK
Certification: CE, SGS, ISO9001
Model Number: WNK80MA-P
Payment & Shipping Terms:
Minimum Order Quantity: 5 piece
Price: Negotiable
Packaging Details: Standard Export Packaging
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pcs per month
Detailed Product Description
Pressure Range: 0- 750 PSI Accuracy Grade: 0.5%, 1.0%FS
Media: Gas, Air, Water, Oil, Lubricant IP Proof: IP67
Response Time: <2ms Power: 5VDC, 9-30VDC
Working Temperature: -40C - 40C
High Light:

electronic pressure sensor

,

precision pressure sensor

,

Air Piezoresistive Compact Pressure Sensor

OEM Air Piezoresistive Compact Size Pressure Sensor Pressure Transducer For Oil Gas Water





Quick Information

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
WNK80MA integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably





Specifications


Applicable media
Liquid, Gas
Pressure range
0-20kPa~350bar
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-5V
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parker joint, customization
Mechanical connection
G1/4, 1/8NPT,M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65


Application:


- Automobile, Compressor and Refrigeration Industry
- Engineering machinery
- Water treatment system
- Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances


Air Piezoresistive Compact Pressure Sensor For Oil Gas Water WNK80MA 0
