IP65 Steam Pressure Sensor WNK805 / Gas Pressure Transmitter -100KPa-60MPa

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

IP65 Steam Pressure Sensor WNK805 / Gas Pressure Transmitter -100KPa-60MPa

IP65 Steam Pressure Sensor WNK805 / Gas Pressure Transmitter -100KPa-60MPa

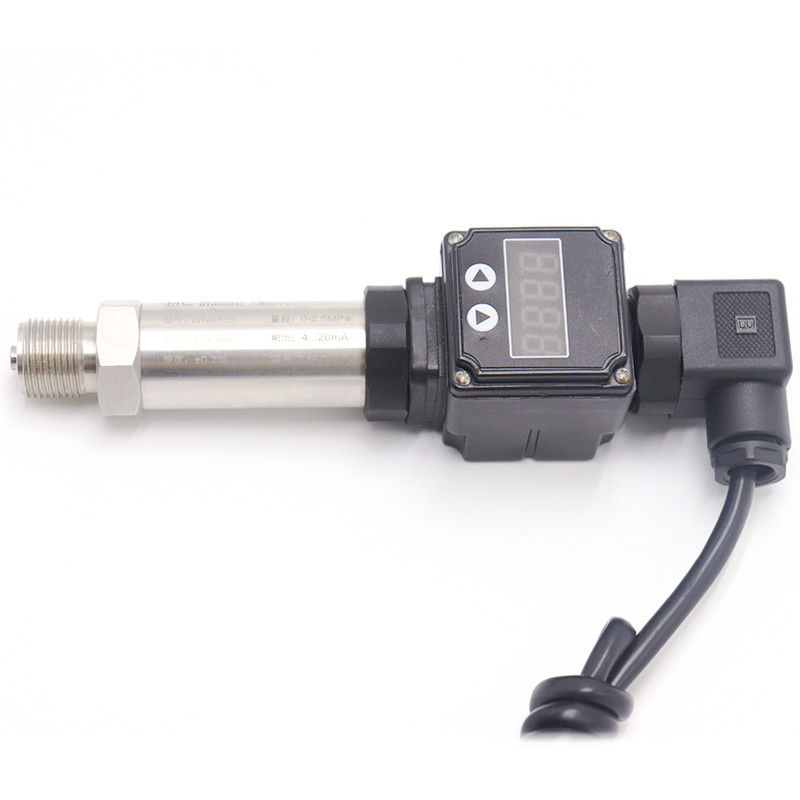

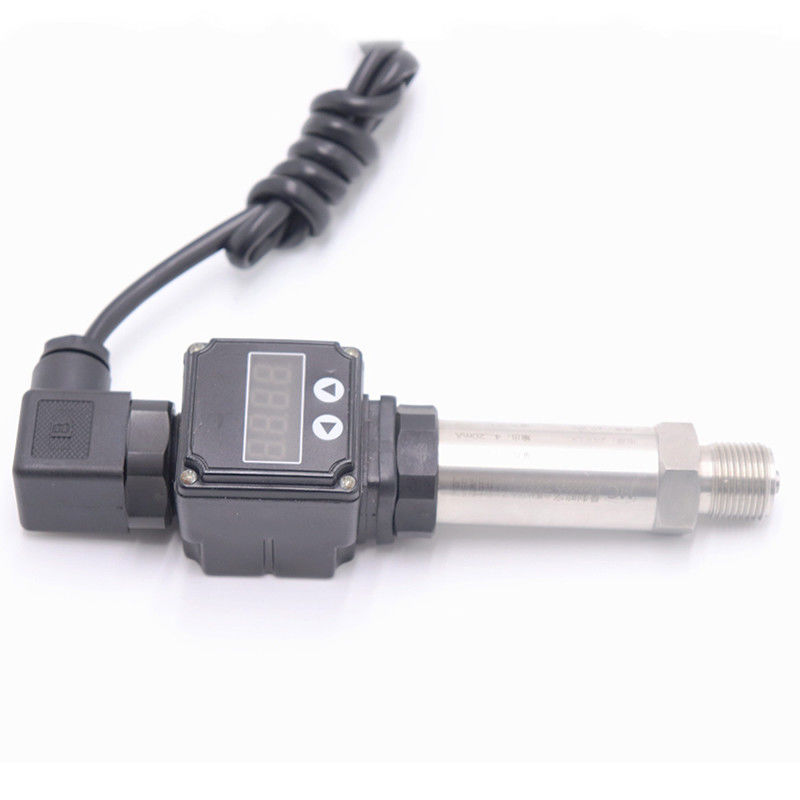

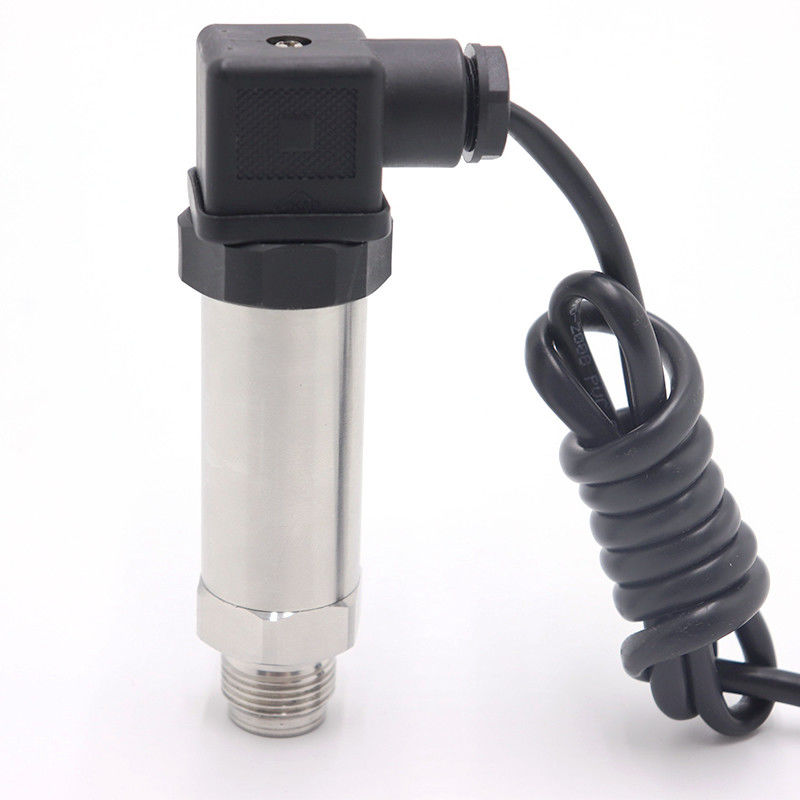

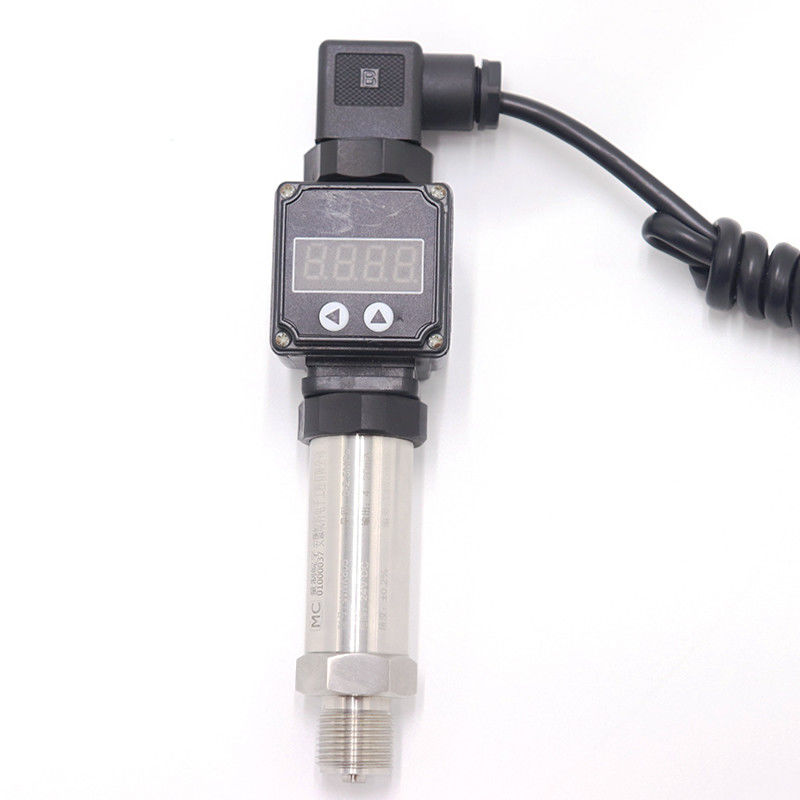

IP65 Steam Pressure Sensor WNK805 / Gas Pressure Transmitter -100KPa-60MPa IP65 Steam Pressure Sensor WNK805 / Gas Pressure Transmitter -100KPa-60MPa IP65 Steam Pressure Sensor WNK805 / Gas Pressure Transmitter -100KPa-60MPa IP65 Steam Pressure Sensor WNK805 / Gas Pressure Transmitter -100KPa-60MPa

Large Image :  IP65 Steam Pressure Sensor WNK805 / Gas Pressure Transmitter -100KPa-60MPa

Product Details:
Place of Origin: Anhui, China
Brand Name: WNK
Certification: CE, SGS, ISO9001
Model Number: WNK805
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Payment Terms: D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 Piece/Pieces per Month Pressure Transmitter
Detailed Product Description
Model Number: WNK805 Accuracy:: 0.2%FS,0.5%FS
Measured Media: Liquid, Gas And Steam Output Signal: 4~20mA,1-5V(optional)
Pressure Range: -100KPa~60MPa Power Supply: 10.5-55V DC, 10.5-30V DC
Protection Class: IP65 Ambient Temperature: -40~85℃
Housing Material:: 304 Stainless Steel
High Light:

mini pressure sensor

,

air pressure transmitter

Best price IP65 general China absolute gas pressure transmitter0, -100KPa~60MPa







Products Description

 WNK805mA IP65 Capacitive IIC Lora Small Size Pressure Sensor

WNK805 Gauge/Absolute Pressure Transmitter (Diffused silicon sensor)
Applicable media Liquid, Gas, Steam
Pressure range -100kPa-0, 0-0.2~-100kPa, 0-0.2~1000kpa, 0-60MPa, 70MPa
Pressure measurement Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Accuracy 0.2% FS, 0.5% FS
Stability ±0.25% FS/year
Zero drift 50% of full range span.
Max overload 200% of sensor range
Bandwidth / Response time 1 millisecond (Optional for analog type)
Output signals 4~20mA, 1-5V(optional)
Display LED (Optional)
Housing material 304 stainless steel
Mechanical connection M20×1.5; 1/2-18NPT, 1/4NPT, G1/4, Customize
Protection class IP65
Power supply Non-explosion: 10.5~45V DC
EEX ia:8~30 V DC
Ambient temperature -40~85℃
Process temperature -40~85℃
-40~150℃ (diaphragm type, clamp type)
Compensation temperature -10~70℃
Features

1. WNK805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit.

2.With precise temperature characteristic compensation, it can be used reliably and stably

3.It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media.


IP65 Steam Pressure Sensor WNK805 / Gas Pressure Transmitter -100KPa-60MPa 0
IP65 Steam Pressure Sensor WNK805 / Gas Pressure Transmitter -100KPa-60MPa 1
FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
