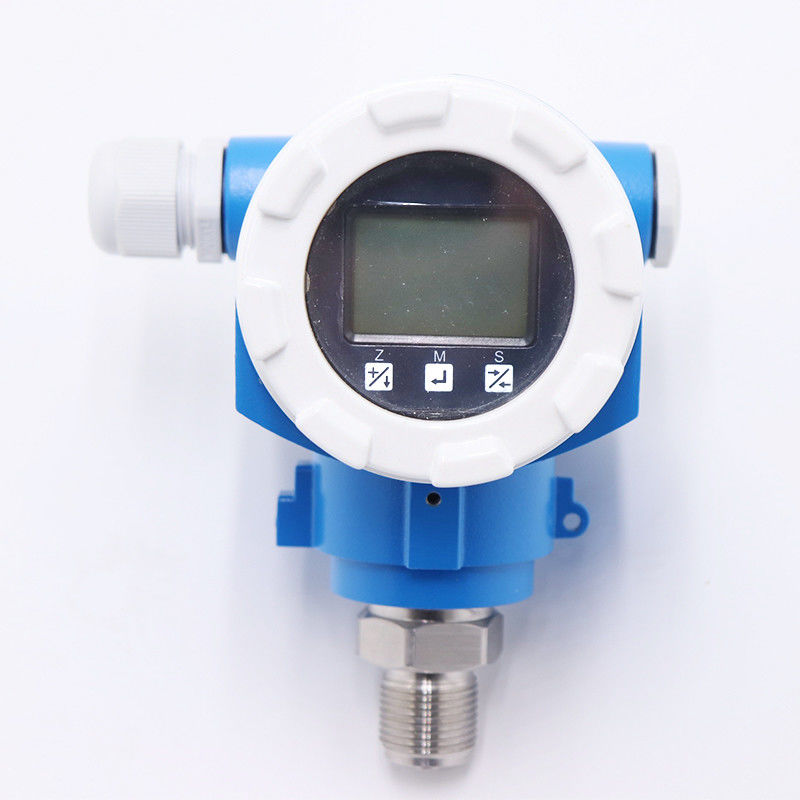

LCD Display 4 - 20mA Smart Pressure Transmitter For Liquid Gas Steam Measure

Good quality Water Pressure Sensor for sales
Good quality Water Pressure Sensor for sales
I'm Online Chat Now

LCD Display 4 - 20mA Smart Pressure Transmitter For Liquid Gas Steam Measure

China LCD Display 4 - 20mA Smart Pressure Transmitter For Liquid Gas Steam Measure supplier
LCD Display 4 - 20mA Smart Pressure Transmitter For Liquid Gas Steam Measure supplier LCD Display 4 - 20mA Smart Pressure Transmitter For Liquid Gas Steam Measure supplier LCD Display 4 - 20mA Smart Pressure Transmitter For Liquid Gas Steam Measure supplier LCD Display 4 - 20mA Smart Pressure Transmitter For Liquid Gas Steam Measure supplier

Large Image :  LCD Display 4 - 20mA Smart Pressure Transmitter For Liquid Gas Steam Measure

Product Details:

Place of Origin: Anhui,China
Brand Name: WNK
Model Number: WNK4S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Each set in one individual carton packing with protection
Delivery Time: To be negotiated
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: -45 to 85ºC,-40 to 80ºC for LCD header
Contact Now
Detailed Product Description
Product Name: WNK4S Pressure Transmitter Pressure Measurment: Liquid, Gas And Steam
Pressure Range: -100kPa~70MPa Accuracy: 0.2%
Output: 4~20mA, Modbus Power Supply: 10.5-55V DC 10.5-30V DC
Mechanical Connection: G1/2, G1/4, 1/2NPT Etc Housing Material: Aluminum14
Protection Rating: IP66/67 Storage Temperature: -45 To 85ºC,-40 To 80ºC For LCD Header

LCD display 4-20mA pressure transmitter for liquid gas steam measure

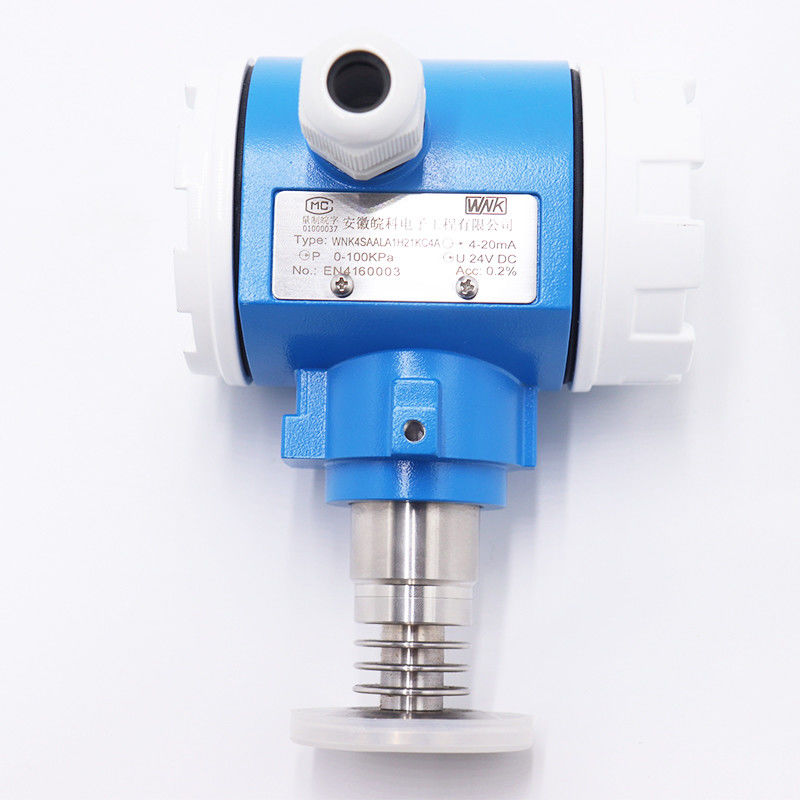

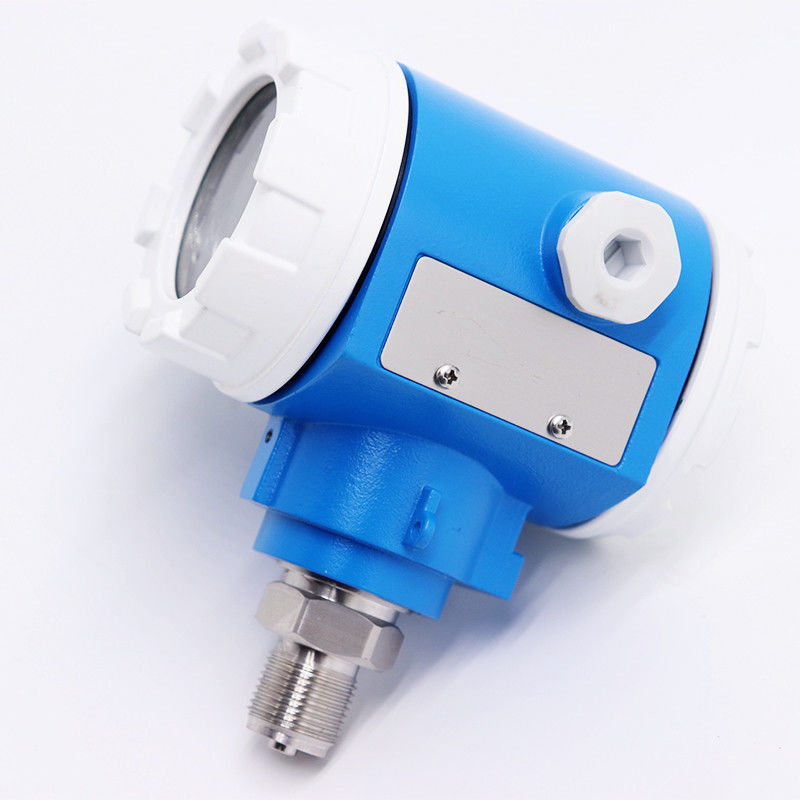

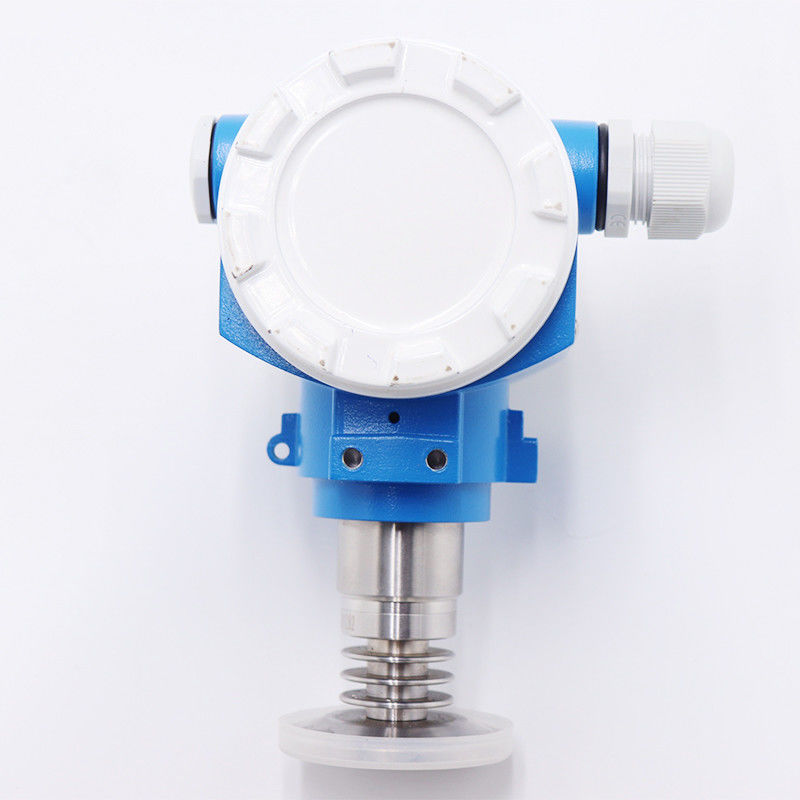

WNK4S pressure transmitter is the cost-effective model of pressure transmitters provided by Hefei WNk Smart Technology Co., ltd. It transforms the physical signal of pressure , differential pressure and level  etc into standard signal, by collecting cell sensor and digital processing circuit.


Product Description



LCD Display 4 - 20mA Smart Pressure Transmitter For Liquid Gas Steam Measure
LCD Display 4 - 20mA Smart Pressure Transmitter For Liquid Gas Steam Measure

WNK4S pressure transmitters are suitable for:
1.Gauge,absolute and differential pressure measurement in gases,steam or liquids in areas of process control field.
2.Level,volume or mass mearsurement in liquids.

Product Name
4-20mA DC MODBUS Protocol Low Pressure Transmitter for HVAC
Pressure measurment
liquid, gas and steam
Pressure range
-100kPa~70MPa
Accuracy
0.2%
Output
4~20mA, Modbus
Power supply
10.5-55V DC 10.5-30V DC
Mechanical connection
G1/2, G1/4, 1/2NPT etc
Housing material
Aluminum14
Ingress Protection
IP66/67
Ex-proof
ExiaII CT4/CT6, ExidIICT6
Ambient temperature
-40 to 85ºC,-40 to 80ºCfor LCD header
Storage temperature
-45 to 85ºC,-40 to 80ºC for LCD header



 LCD Display 4 - 20mA Smart Pressure Transmitter For Liquid Gas Steam MeasureLCD Display 4 - 20mA Smart Pressure Transmitter For Liquid Gas Steam MeasureLCD Display 4 - 20mA Smart Pressure Transmitter For Liquid Gas Steam MeasureLCD Display 4 - 20mA Smart Pressure Transmitter For Liquid Gas Steam MeasureLCD Display 4 - 20mA Smart Pressure Transmitter For Liquid Gas Steam MeasureLCD Display 4 - 20mA Smart Pressure Transmitter For Liquid Gas Steam MeasureLCD Display 4 - 20mA Smart Pressure Transmitter For Liquid Gas Steam Measure
