Anti - Wear Air Pressure Sensor 3-5 Times Medium Temperature Shock Resistance

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

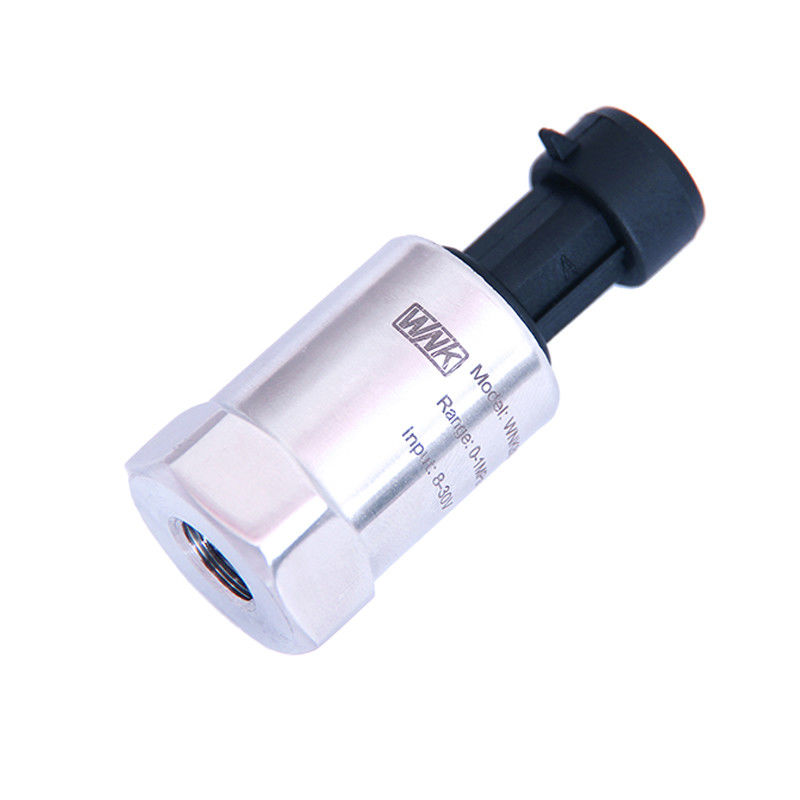

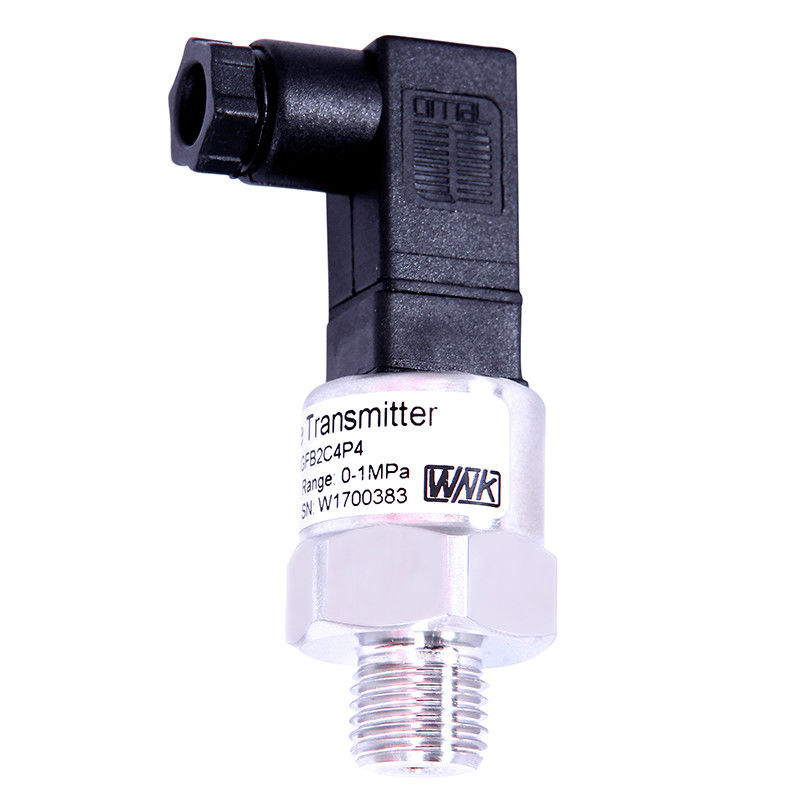

Anti - Wear Air Pressure Sensor 3-5 Times Medium Temperature Shock Resistance

Anti - Wear Air Pressure Sensor 3-5 Times Medium Temperature Shock Resistance
Anti - Wear Air Pressure Sensor 3-5 Times Medium Temperature Shock Resistance Anti - Wear Air Pressure Sensor 3-5 Times Medium Temperature Shock Resistance Anti - Wear Air Pressure Sensor 3-5 Times Medium Temperature Shock Resistance Anti - Wear Air Pressure Sensor 3-5 Times Medium Temperature Shock Resistance

Large Image :  Anti - Wear Air Pressure Sensor 3-5 Times Medium Temperature Shock Resistance

Product Details:
Place of Origin: Hefei, China
Brand Name: WNK
Certification: CE, SGS, ISO9001
Model Number: WNK80MA
Payment & Shipping Terms:
Minimum Order Quantity: 5 piece
Price: Negotiation
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pcs per month
Detailed Product Description
Pressure Range: -1bar - 60 Mpa Output: I2C, SPI, 0.5-4.5V, 4-20ma And Other
Respond Time: ≥1ms Overload Pressure: 3-5 Times
Material: 304SS 316SS Medium Temperature: -40 -70
Warranty: 1 Year Accuracy: 0.25%FS, 0.5%FS 1.0%FS
IP Protection: IP65 IP67 Electrical Connection: Packard, M12x1, Mini DIN43650, Other
High Light:

mini pressure sensor

,

air pressure transmitter

4-20mA/0-5V,Pressure sensor for Liquid, Gas, Steam, Oil, Air

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Anti - Wear Air Pressure Sensor 3-5 Times Medium Temperature Shock Resistance 0Anti - Wear Air Pressure Sensor 3-5 Times Medium Temperature Shock Resistance 1Anti - Wear Air Pressure Sensor 3-5 Times Medium Temperature Shock Resistance 2Anti - Wear Air Pressure Sensor 3-5 Times Medium Temperature Shock Resistance 3


Applications

- Automobile, Compressor and Refrigeration Industry

- Engineering machinery

- Pressure control and monitor

- Water treatment system

- Hydraulic and Pneumatics

- HAVC and BAS Control

- Pump, fitness equipment, household appliances

- Factory Automation

- Fluid Control and Instrumentation Systems



Features :

1. Temperature range: -20 to 85℃
2. Wide operation temperature range -40~125℃
3. High performance ceramic capacitive pressure sensor
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available
5. Small dimensions, dimension customizble
6. Optional packard, M12, Small Hirschman connectors
7. OEM, ODM, customization service available
8. Process connector: G1/4, M12*1.5, 1/4NPT, 7/16-20UNF female


Technical Data

Input
Pressure Type Gauge Pressure , Absolute Pressure, Sealing Pressure
Pressure Range -100Kpa - 60Mpa
Accuracy 0.2%, 0.5%
Power Supply 5VDC, 12-32VDC
Measuring Media Gas, Steam, Liquid, Oil
Output
Analog 4-20mA, 0.5-4.5V / 1-5V / 0-5V
Digital I2C, SPI
Operation Condition and Temperature
Compensation Temperature -20...75℃
Storage Temperature -45 ... 85℃
Ambient Temperature -45 ... 85℃
Medium Temperature -40 ... 125℃
Material and Protection
Ingress Protection IP65, IP67
Housing Material 304SS, 316L




Company Information

pressure transducer 4-20 ma

Factory

pressure transducer 4-20 ma

Exhibition

pressure transducer 4-20 ma

Our Certificate

pressure transducer 4-20 ma

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
