Rapid Response Dry Ceramic Pressure Sensor / Capacitive Liquid Pressure Transducer

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

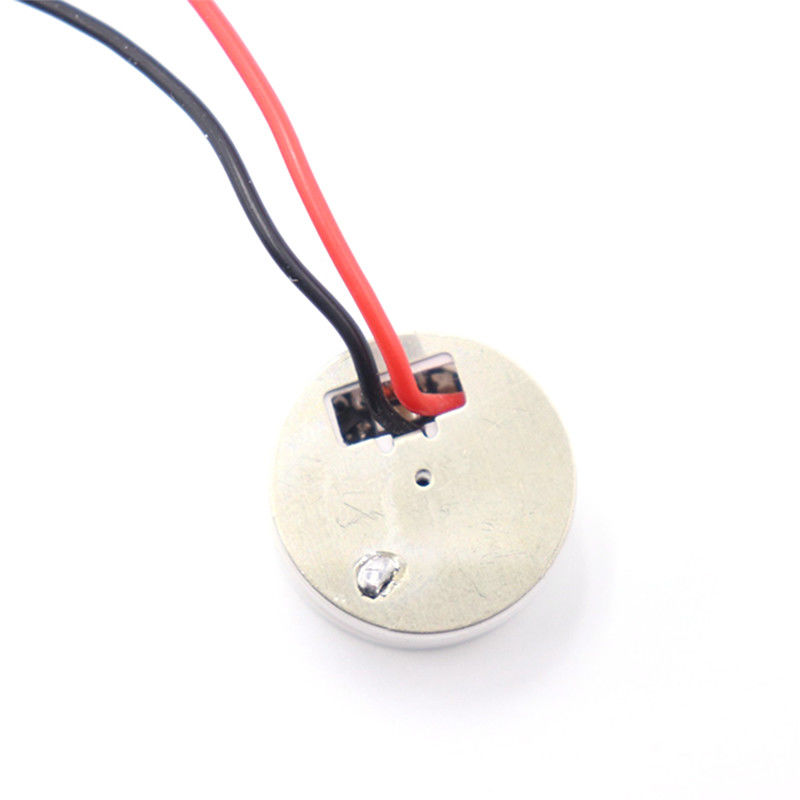

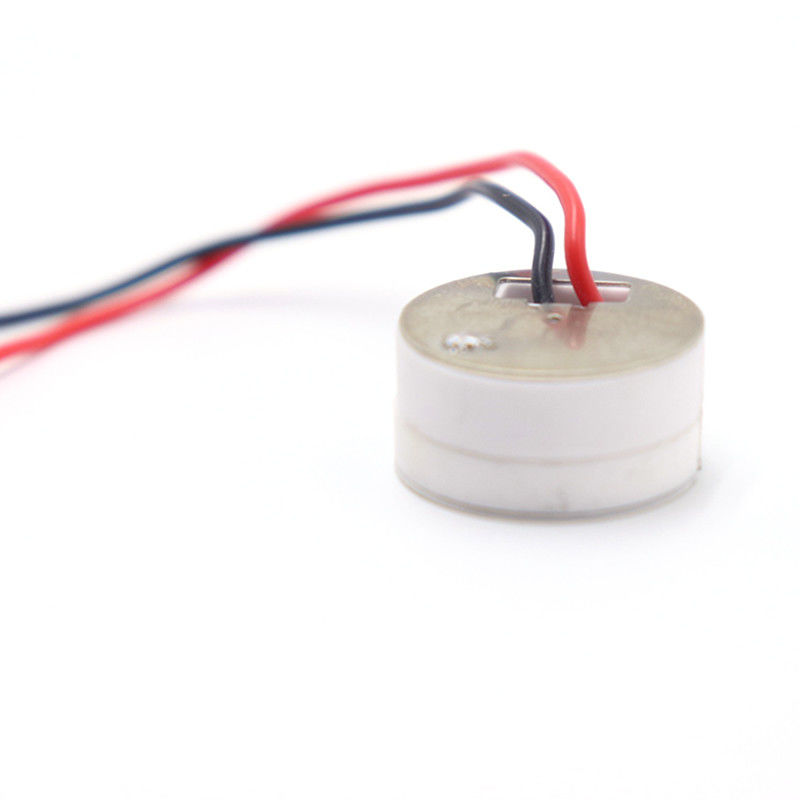

Rapid Response Dry Ceramic Pressure Sensor / Capacitive Liquid Pressure Transducer

Rapid Response Dry Ceramic Pressure Sensor / Capacitive Liquid Pressure Transducer
Rapid Response Dry Ceramic Pressure Sensor / Capacitive Liquid Pressure Transducer Rapid Response Dry Ceramic Pressure Sensor / Capacitive Liquid Pressure Transducer Rapid Response Dry Ceramic Pressure Sensor / Capacitive Liquid Pressure Transducer

Large Image :  Rapid Response Dry Ceramic Pressure Sensor / Capacitive Liquid Pressure Transducer

Product Details:
Place of Origin: Hefei, China
Brand Name: WNK
Certification: CE, SGS, ISO9001 2015
Model Number: WNK21
Payment & Shipping Terms:
Minimum Order Quantity: 5 piece
Price: Negotiation
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 pcs per month
Detailed Product Description
Pressure Range: 0-60Mpa Output: 4~20mA, I2C, SPI, 0.2-2.9V, 0.5-4.5V And Customization
Respond Time: ≥1ms Overload Pressure: 3-5 Times
Material: 304SS Sensor Type: Eramic Capacitive Sensor, Diffused Silicon Sensor
Working Temperature: -40 -135C Ingress Protection: IP67
Accuracy: 0.25%FS, 0.5%FS Measuring Medium: Gas And Liquid Compatible With 316L
High Light:

micro pressure sensor

,

oem pressure sensor


Rapid response dry ceramic capacitive liquid level pressure sensor

WNK has 13-year experience of research, development, production and sales of sensors. With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.
Our sensor outputs including 4~20mA, SPI, I²C, 0.2~2.9V, 1~5V, 0~5V, 0.5~4.5V, 0~10v and etc. And OEM, ODM & customization service are available for this product.

Applications: Gas Water Steam Oil Measurement, Monitoring, Process Control


Features :

1. Temperature range: -40 to 70ºC;
2. Wide operation temperature range -40~125ºC;
3. High performance ceramic capacitive pressure sensor;
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available;
5. Small dimensions, dimension customizble;
6. Optional packard, M12, Small Hirschman connectors;
7. OEM, ODM, customization service available;


Technical Data


IOT Pressure Sensor For Water Gas Oil Monitoring
Pressure range  -100kpa~70MPa
Pressure type Gauge, Absolute, Seal, Vacuum
Overpressure 300%F.S. (≤70kPa) 200%F.S.(≤25MPa)
Output signals 0.2-2.9V, SPI, I2C, 0.5-4.5V, 1-5V, 0-5V, 0~10V, 4~20mA
Accuracy ±0.5%FS, ±1%FS
Compensation Temp. -20~70℃
Operation Temp. -40~125℃
Storage Temp. -40~125℃
Zero Temp. Drift ±1.5%FS Max (-20~85℃)
Full Scale Temp. Drift ±1.5%FS Max (-20~85℃)
Pressure Connection G1/4, 7/16-SAE, NPT, and other outputs
Ingress Protection IP67
Housing SS316, SS304



 Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs supported I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other
6. Our products have been exported to most of the EU countries, North America, South East Aisia and other countries and regions.

Rapid Response Dry Ceramic Pressure Sensor / Capacitive Liquid Pressure Transducer 0Rapid Response Dry Ceramic Pressure Sensor / Capacitive Liquid Pressure Transducer 1Rapid Response Dry Ceramic Pressure Sensor / Capacitive Liquid Pressure Transducer 2Rapid Response Dry Ceramic Pressure Sensor / Capacitive Liquid Pressure Transducer 3


Company Information

pressure transducer 4-20 ma

Factory

pressure transducer 4-20 ma

Exhibition

pressure transducer 4-20 ma

Our Certificate

pressure transducer 4-20 ma

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
