Home ProductsSmart Pressure Transmitter

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

Good quality Water Pressure Sensor for sales
Good quality Water Pressure Sensor for sales
I'm Online Chat Now

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

China Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE supplier

Large Image :  Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

Product Details:

Place of Origin: China
Brand Name: WNK
Certification: CE
Model Number: WNK83mA

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Each piece into individual carton with foam protection,Or as per client's request
Delivery Time: 8-10 working days
Payment Terms: D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 2000 pcs per week
Contact Now
Detailed Product Description
Pressure Range: 0-2MPa,0-20bar,0-2000kPa Output: 0.5-4.5V DC
Power Supply: 4.75-5.25V DC Material: Brass
Process Connector: 1/4 NPT Electrical Connector: Cable Outlet
Accuracy: 1%

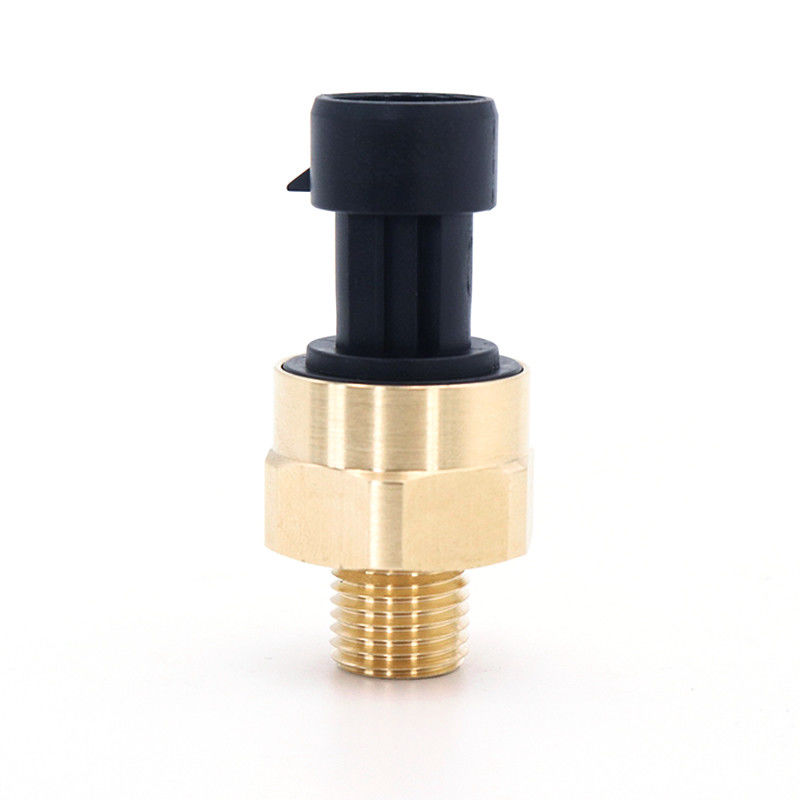

WNK83mA Low Cost 0.5-4.5V Water Oil Air Pressure Sensor Transmitter



Mini brass pressure sensor with low cost unit price $6 USD,suitable for air oil water,ready to ship now.



Applicable media Liquid, gas and steam
Pressure range 0-2MPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Working temperature -20~70ºC
Ambient temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical connection Cable Outlet
Mechanical connection 1/4 NPT
Housing material Brass



Certification

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE



Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
