|Pressure Range:||0~600bar||Accuracy:||±0.2%FS, ±0.5%FS, ±1.0%FS|
|Output:||4~20mA; 1~5V, 0-10V And Other Analog Outputs||Long-term Stability:||±0.25% Full Scale Per Year|
|Temp. Compensation:||-10 ~ 70 Deg C||Working Temperature:||-40 ~ 85 Deg C|
|Explosion Proof:||Intrinsically Safe||Electrical Connector:||DIN43650 (Hirschman), M12, Direct Cable Outlet And Others|
|Media:||Medium Compatible With SS304 And SS316L||Clamp Outer Diameter:||50.5mm Or 64mm|
|Pressure Type:||Gauge, Absolute, Vacuum, Negative Pressure||Housing Material:||SS304|
Hirschman Tri-clamp Sanitary Pressure Transmitter 4~20mA for Food Medical application
WNK has 13-year professional research, developing and producing experience. Its WNK805 compact pressure transmitter uses high accuracy and high stability chips, each pressure transmitter is well temperature compensated. WNK805 has high accuracy of 0.2%FS, SS316L diaphragm, outputs of 4~20mA, 0~10V, 0~5V and other analog outputs.

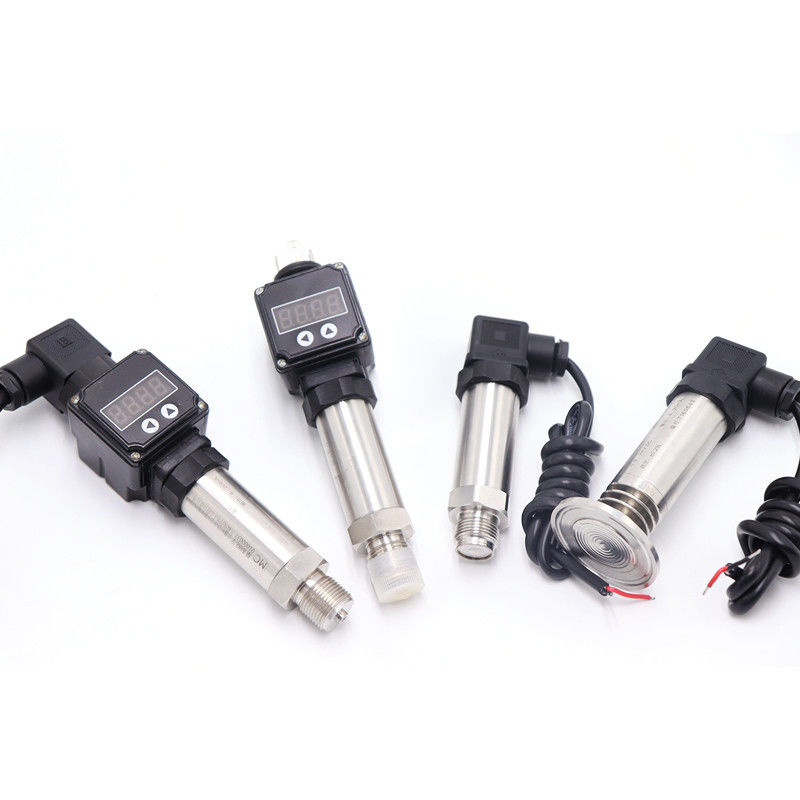

Sanitary type WNK805 is specially designed for food and medical application. It has standard 50.5mm and 64mm outer diameter, connecting with process sanitary pipe directly and easily. Sanitary clamp type pressure transmitter is widely used in food, pharmaceutical, wine making, fermentation and other industries. It is divided in normal sanitary, high temperature cooling type, digital display types.
With a team of R&D engineers, we offer OEM, ODM and customization services.
1. Food hygiene industry；
2. Paper industry；
3. Sewage level measurement；
4. Beverage tank level measurement；
5. Pipeline level measurement；
6. Pharmaceutical and biological products processing
Detailed Technical Info:
|Compact Pressure Transmittter with SS304 Housing|
|Pressure range||0-0.2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa|
|Permissible temperature||Compensation Temperature||Media Temperature||Environment Temperature||Storage Temperature|
|Accuracy||0.1%FS, 0.25%FS, 0.5%FS, 1.0%FS|
|Output signals||4~20mA, 0~5V, 1~5V, 0~10V and other outputs|
|Long-term stability||0.25% full scale per year|
|Electrical connection||DIN43650, M12, Direct lead and others|
|Mechanical connection||G1/2, M20*1.5,1/2NPT,1/4NPT,customization|
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
