WNK81TP 4-20mA PT100 Temperature Pressure Transmitter Transducer

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

WNK81TP 4-20mA PT100 Temperature Pressure Transmitter Transducer

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  WNK81TP 4-20mA PT100 Temperature Pressure Transmitter Transducer

Product Details:
Place of Origin: China
Brand Name: WNK
Certification: CE
Model Number: WNK81TP
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Neutral carton packing or as per your requirement.
Delivery Time: 5-8 work days
Payment Terms: D/P, T/T, Western Union, Paypal
Supply Ability: 5000/ Piece/ Month
Detailed Product Description
Pressure Range: 0-7Mpa Output: 4-20mA
Measured Media: Gas Water Steam Housing Material: 304SST
Stability: ±0.25% FS/year Operating Temperature: -40~85 ℃
Process Connection: M20x1.5; 1/2-18NPT, 1/4NPT, G1/4, Customize Electrical Connection: Direct Cable,M12*4P
High Light:

PT100 temperature pressure transmitter

,

PT100 high temp pressure transducer

,

7Mpa temperature pressure transmitter

4-20mA PT100 Temperature And Pressure Transmitter







Measurement Gauge Pressure Absolute Pressure
Range 0-40Kpa-7Mpa/ 0.-0.4Bar-70Bar
Analog Signal 0.5-4.5V 4-20MA PT100
Digital Output I2C PT100
Accuracy 0.5% 0.2% PT100B
Housing Material SST304
Protection IP65/IP67



WNK81TP 4-20mA PT100  temperature and pressure integrated sensor/Pressure Transmitter





There is an increasing demand for sensors that can measure temperature and pressure simultaneously.
WNK81TP integrates temperature and pressure measurement in the one sensor, which saves the material cost of the sensor and is convenient for users. It also brings convenience to field installation.

1. Temperature range: -40 to 120℃

2.Pressure range 0-40kpa~70bar

3. High performance diffusion silicon oil-filled sensor

4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ I²C + PT100 outputs available

5. Small dimensions, dimension customizble

6. Direct cable outlet,M12

7. OEM, ODM, customization service available

8. Process connector: G1/4, M12*1.5, 1/4NPT

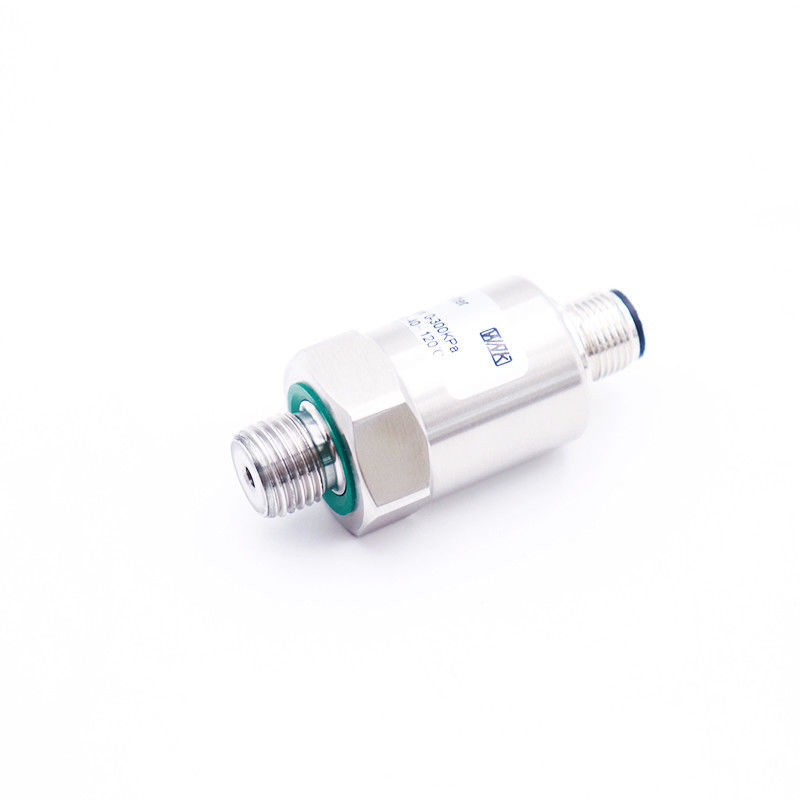

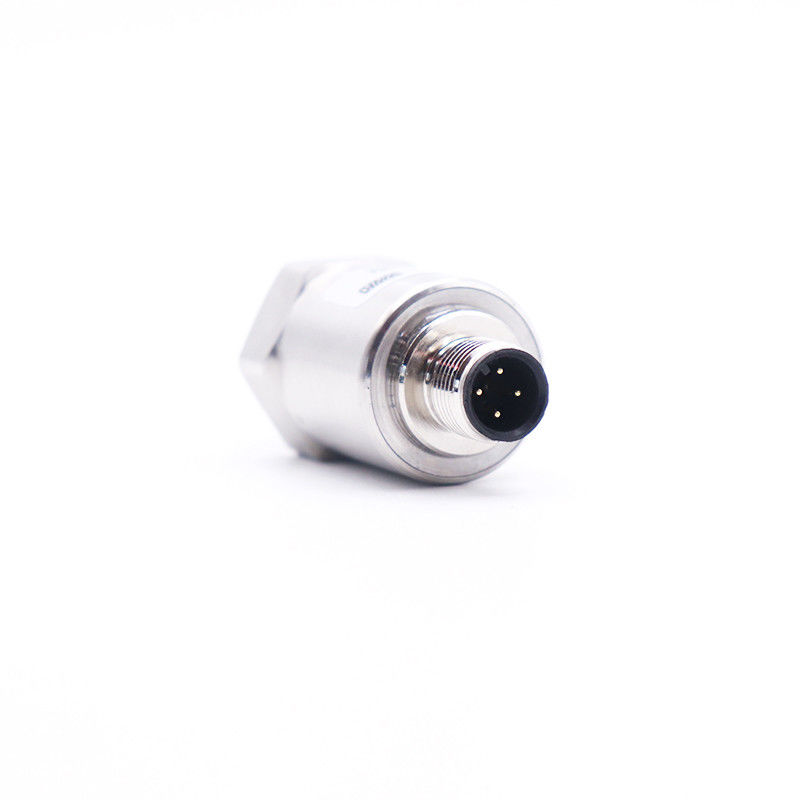

Product Display

WNK81TP 4-20mA PT100 Temperature Pressure Transmitter Transducer 1WNK81TP 4-20mA PT100 Temperature Pressure Transmitter Transducer 2WNK81TP 4-20mA PT100 Temperature Pressure Transmitter Transducer 3





Company Information



WNK81TP 4-20mA PT100 Temperature Pressure Transmitter Transducer 4

FAQ



Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
