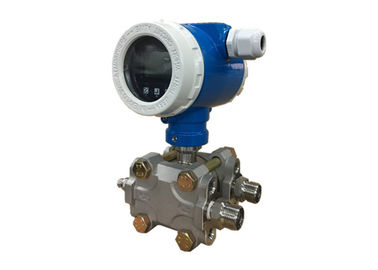

Industrial IP67 Explosion Proof Smart Differential Pressure Level Transmitter 4~20mA, Hart

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

Industrial IP67 Explosion Proof Smart Differential Pressure Level Transmitter 4~20mA, Hart

Industrial IP67 Explosion Proof Smart Differential Pressure Level Transmitter 4~20mA, Hart
Industrial IP67 Explosion Proof Smart Differential Pressure Level Transmitter 4~20mA, Hart

Large Image :  Industrial IP67 Explosion Proof Smart Differential Pressure Level Transmitter 4~20mA, Hart

Product Details:
Place of Origin: Hefei, CN
Brand Name: WNK
Certification: CE, SGS, ISO9001
Model Number: WNK55
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-8 work days
Payment Terms: Western Union, T/T
Supply Ability: 5000pcs per month
Detailed Product Description
Pressure Range: 10~40000mbar Accuracy: 0.05%FS
Output: 4~20mA, Hart Housing Material: Aluminum Alloy
Protection Class: IP66/67 OEM Service: OEM, ODM
Transmitter Type: Capacitive Differential Pressure Transmitter Application: Oil&gas, Petrol, Petrochemical, Chemical Industry, Metallurgy, Pharmacy
High Light:

smart pressure sensor

,

digital pressure transmitter







Industrial IP67 Explosion Proof Smart Differential Pressure Level Transmitter 4~20mA, Hart



WNK5 series pressure transmitter is the high-performance products among WNK pressure transmitter series. It transforms physical signal of pressure, differential pressure and level to standard signal via collecting cell sensor and digital processing circuit.

WNK5 adopts advanced specified integrated circuit digital technology to realize best uniformity of accuracy and signal. Each set of transmitter is ambient temperature compensated, ensured highest accuracy and lowest drift of transmitters in wide working temperature range.





Features

  • High accuracy: up to 0.05%FS;
  • Output: 4~20mA, Hart
  • Excellent long-term stability: long-term drift ≤±0.15%URL for 5 years;
  • Range ratio: 100: 1;
  • Module design: Changeable electronic module;
  • Explosion Proof: Exia II CT4, CT6;
  • Water Proof: IP66/67;
  • High Temperature Resistance: Highest temperature up to 280℃ with diaphragm sealing;
  • High Pressure Ability: Max Pressure up to 700bar.



Detailed Technical Info:



High Accuracy Smart Differential Pressure Transmitter
Pressure range -4000kPa~4000kPa
Rangedown 100:1
Permissible temperature Compensation Temperature Media Temperature Environment Temperature Storage Temperature
-30~70℃ -40~120℃ -40~85℃ -45~85℃
Accuracy 0.075%FS
Output signals 4~20mA,HART, Profibus-Pa, customization
Long-term stability ±0.25%URL, 5 years
Power supply 10.5~55VDC,24VDC
Protection class IP66/67
Mechanical connection G1/2, M20*1.5,1/2NPT,1/4NPT,customization
Temperature drift 0.03%F.S./10℃
Anti-shock As per test of GB/T1827.3/IEC61298-3, <0.1%URL
Housing material Aluminum alloy
Weight About 4kg





Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
