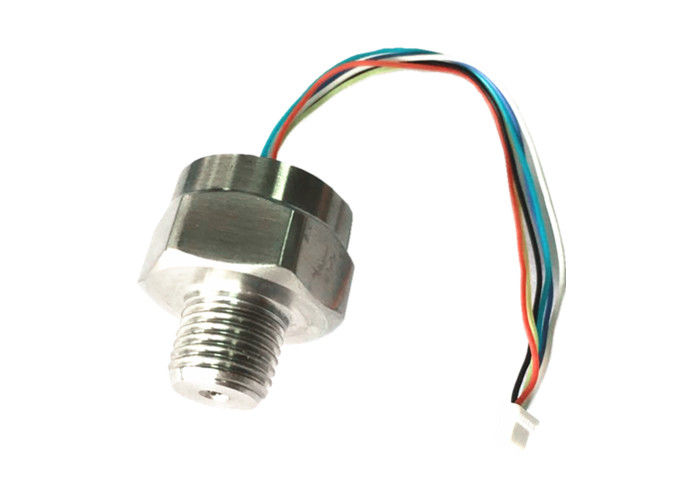

IOT Small Pressure Sensor Transducer Spi I2c 0.2-2.9V 4~20mA 70MPa Pressure Range

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

IOT Small Pressure Sensor Transducer Spi I2c 0.2-2.9V 4~20mA 70MPa Pressure Range

IOT Small Pressure Sensor Transducer Spi I2c 0.2-2.9V 4~20mA 70MPa Pressure Range
IOT Small Pressure Sensor Transducer Spi I2c 0.2-2.9V 4~20mA 70MPa Pressure Range

Large Image :  IOT Small Pressure Sensor Transducer Spi I2c 0.2-2.9V 4~20mA 70MPa Pressure Range

Product Details:
Place of Origin: Hefei, CN
Brand Name: WNK
Certification: CE, SGS, ISO9001
Model Number: WNK80MA, WNK811, WNK81MA
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: Negotiation
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 8000pcs per month
Detailed Product Description
Output: 4~20mA, I2C, SPI, 0.2-2.9V, 0-5V And Customization Pressure Range: 0-70MPa
Accuracy: 0.5%FS, 1%FS, 2%FS Operation Temperature: -40~150℃
Ingress Protection: IP67 Respond Time: ≥1ms
OEM: OEM, ODM Welcome Overload: 2x FS
Proof Pressure: 3x FS Housing Material: SS304
Sensor Type: Ceramic Capacitive Sensor, Diffused Silicon Sensor
High Light:

micro pressure sensor

,

i2c pressure sensor



Low Cost IOT Small Pressure Sensor Transducer Spi I2c 0.2-2.9V 4~20mA, Low Consumption



WNK has 13-year experience of research, development, production and sales of sensors. With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.


After two years of research, development and repeatedly testings, our ceramic capacitive sensors have

entered big quantity production stage. For different applications and installation methods, we offer

OEM, ODM and customization services.



Features :



1. Temperature range: -20 to 85ºC;

2. Wide operation temperature range -40~125ºC;

3. High performance ceramic capacitive pressure sensor;

4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available;

5. Small dimensions, dimension customizble;

6. Optional packard, M12, Small Hirschman connectors;

7. OEM, ODM, customization service available;



Detailed Technical Info:



IOT Mini Pressure Sensor
Pressure range  0~15MPa
Pressure type Gauge, Absolute, Sealing gauge
Overpressure 300%F.S. (≤70kPa) 200%F.S.(≤25MPa)
Output signals 0.2-2.9V, SPI, I2C, 0.5-4.5V, 1-5V, 0-5V, 0~10V, 4~20mA
Accuracy ±0.5%FS, ±1%FS
Compensation Temp. -20~70℃
Operation Temp. -40~125℃
Storage Temp. -40~125℃
Zero Temp. Drift ±1.5%FS Max (-20~85℃)
Full Scale Temp. Drift ±1.5%FS Max (-20~85℃)
Pressure Connection G1/4, 7/16-SAE, NPT, and other outputs
Ingress Protection IP67
Housing SS316, SS304





Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
