Smart City System IOT Pressure Sensor I2C 0.2-2.9V Customization available

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

Smart City System IOT Pressure Sensor I2C 0.2-2.9V Customization available

Smart City System IOT Pressure Sensor I2C 0.2-2.9V Customization available
Smart City System IOT Pressure Sensor I2C 0.2-2.9V Customization available

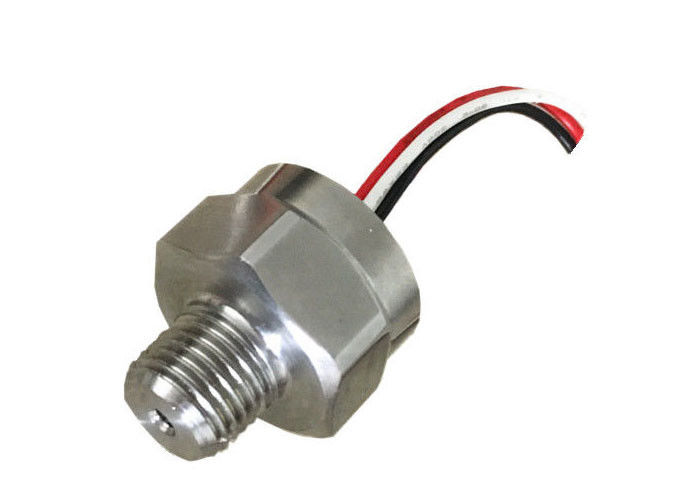

Large Image :  Smart City System IOT Pressure Sensor I2C 0.2-2.9V Customization available

Product Details:
Place of Origin: Hefei, CN
Brand Name: WNK
Certification: CE, SGS, ISO9001
Model Number: WNK811
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: Negotiation
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 8000pcs per month
Detailed Product Description
Output: 4~20mA, I2C, SPI, 0.2-2.9V, 0-5V And Customization Pressure Range: 0-100bar
Accuracy: 0.5%FS, 1%FS, 2%FS Proof Pressure: 3 Times FS
Respond Time: ≥1ms Overload: 2 Times FS
OEM: OEM, ODM Welcome Operation Temperature: -40~150℃
Housing Material: SS304 Sensor Type: Diffused Silicon Pressure Sensor, Ceramic Capacitive Sensor
Brand: WNK
High Light:

micro pressure sensor

,

i2c pressure sensor



Smart City System Cheap IOT Pressure Sensor I2C, 0.2-2.9V, Customization Available



WNK has 13-year experience of research, development, production and sales of sensors. With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.


For different applications and installation methods, we offer OEM, ODM and customization services.



Features :

  • Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available;
  • Optional packard, M12, Small Hirschman connectors and direct cable outlet;
  • Process temperature range: -20 to 85ºC;
  • Wide operation temperature range -40~125ºC;
  • Small and mini size, dimension customizble;
  • OEM, ODM, customization service available;
  • High performance ceramic capacitive pressure sensor or diffused silicon pressure sensor;



Detailed Technical Info:



IOT Pressure Sensor
Pressure range  0~100bar
Pressure type Gauge, Absolute, Sealing gauge
Overpressure 300%F.S. (≤70kPa) 200%F.S.(≤25MPa)
Output signals 0.2-2.9V, SPI, I2C, 0.5-4.5V, 1-5V, 0-5V, 0~10V, 4~20mA
Accuracy ±0.5%FS, ±1%FS
Compensation Temp. -20~70℃
Operation Temp. -40~125℃
Storage Temp. -40~125℃
Zero Temp. Drift ±1.5%FS Max (-20~85℃)
Full Scale Temp. Drift ±1.5%FS Max (-20~85℃)
Pressure Connection G1/4, 7/16-SAE, NPT, and other outputs
Ingress Protection IP67
Housing SS316, SS304





Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
