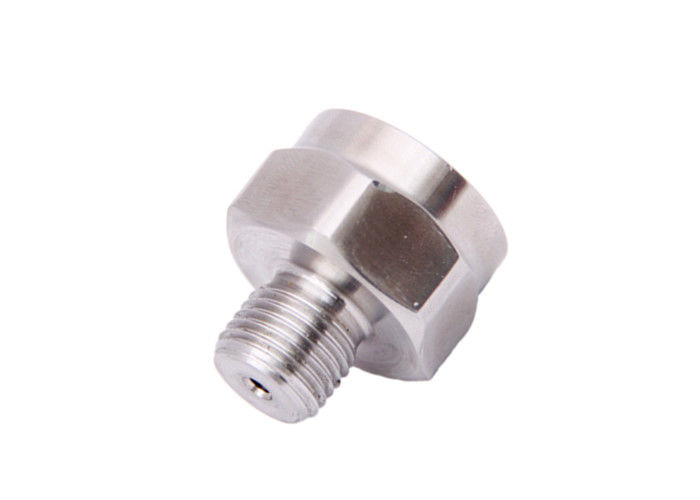

SS304 Natural Gas Miniature IOT Pressure Sensor I2C 0.2-2.9v Output With Molex Connector
WNK has 13-year experience of research, development, production and sales of sensors. With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.
We offer ceramic capacitive pressure sensor and diffused silicon pressure sensor for different applications. For different applications and installation methods, we offer OEM, ODM and customization services.
Features :
- 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available;
- Optional packard, M12, Small Hirschman connectors and direct cable outlet;
- Measuring medium temperature range: -20 to 85ºC;
- Wide operation temperature range -40~125ºC;
- OEM, ODM, customization service available;
- High performance ceramic capacitive pressure sensor or diffused silicon pressure sensor;
- Small and mini size, dimension customizble;
Detailed Technical Info:
| IOT Pressure Sensor |
| Pressure range |
0~10MPa |
| Pressure type |
Gauge, Absolute, Sealing gauge |
| Overpressure |
300%F.S. (≤70kPa) 200%F.S.(≤25MPa) |
| Output signals |
0.2-2.9V, SPI, I2C, 0.5-4.5V, 1-5V, 0-5V, 0~10V, 4~20mA and etc |
| Accuracy |
±0.5%FS, ±1%FS, ±2%FS |
| Compensation Temp. |
-20~70℃ |
| Operation Temp. |
-40~125℃ |
| Storage Temp. |
-40~125℃ |
| Zero Temp. Drift |
±1.5%FS Max (-20~85℃) |
| Full Scale Temp. Drift |
±1.5%FS Max (-20~85℃) |
| Pressure Connection |
G1/4, 7/16-SAE, NPT, and other outputs |
| Ingress Protection |
IP67 |
| Housing |
SS316, SS304 |
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
