On-site Smart Temperature Transmitter PT100 Thermowell Profibus-Pa Protocol

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

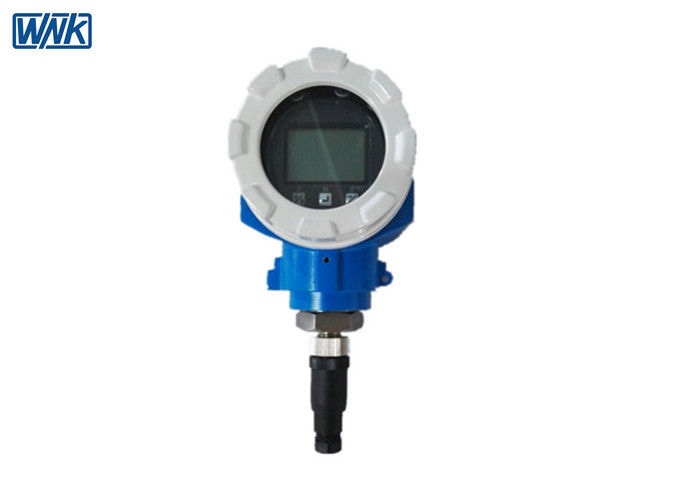

On-site Smart Temperature Transmitter PT100 Thermowell Profibus-Pa Protocol

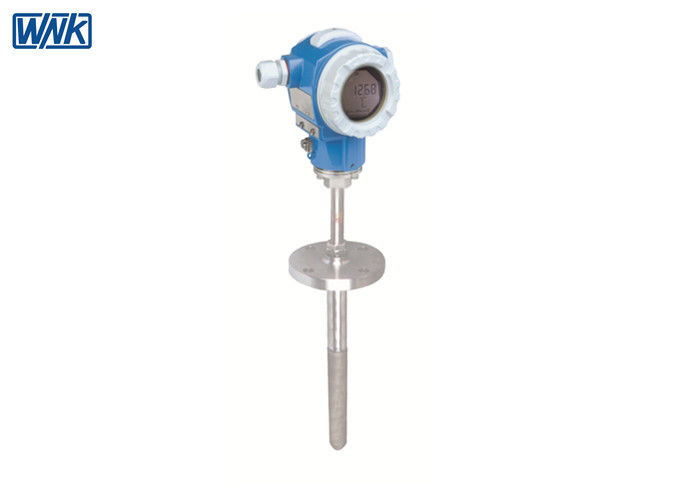

On-site Smart Temperature Transmitter PT100 Thermowell Profibus-Pa Protocol
On-site Smart Temperature Transmitter PT100 Thermowell Profibus-Pa Protocol On-site Smart Temperature Transmitter PT100 Thermowell Profibus-Pa Protocol On-site Smart Temperature Transmitter PT100 Thermowell Profibus-Pa Protocol

Large Image :  On-site Smart Temperature Transmitter PT100 Thermowell Profibus-Pa Protocol

Product Details:
Place of Origin: Hefei, CN
Brand Name: WNK
Certification: Explosion proof, SGS, ISO9001
Model Number: WNK6T
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5000pcs per month
Detailed Product Description
Input: Universal Input Including RTD, TC, MV, Ohms Accuracy: ±0.1℃ For RTD; ±1℃ For TC
Display: LCD OEM Service: OEM, ODM, Customization Available
Output Signal: 4-20mA, 4~20mA+ Hart, Profibus-Pa Transmitter Type: On-site Installation
Ingress Protection: IP67 Housing Material: Cast Aluminum Alloy
High Light:

liquid temperature sensor

,

industrial temperature sensor



On-site Smart Temperature Transmitter PT100 Thermowell Profibus-Pa Protocol



WNK6T smart temperature sensor transmitter is high performance product from WNK. It is universal input including RTD, TC, MV, ohms, and with outputs of 4~20mA, Hart, Modbus, Profibus-Pa.



Transmitters adopt specific integrated circuit digital technology to achieve the best consistency of accuracy and signal. Every transmitter has been done with ambient temperature compensation before shipped out, to ensure transmitters highest accuracy and mini drift in wide working temperature range.



Our transmitters are easy for on-site installation, they can be integratively installed with temperature sensor, or installed away from sensor. The solid housing is with global universal wire connector, and the aluminum shell of double chamber structure ensures regular work of the transmitter in dangerous occasions.





Quick Information:

  • Digital accuracy:±0.01℃, Pt100 thermal resistor input;
  • Accuracy: ±0.1℃ for RTD; ±1℃ for TC, code end accuracy ±2℃;
  • 4~20mA, Hart, Profibus-Pa protocols for option;
  • Universal sensor inputs(RTD, TC, mv, ohms);
  • Support GSD file;
  • 24 bit analog -digital converter with ambient temperature compensation, the measurement performance is outstanding in the whole working range;
  • Double chamber shell, which makes the transmitter have excellent reliability in high temperature, corrosive and radio frequency interference
  • Integrated transient protector, can prevent the transmitter from the damage caused by transient current of a circuit
  • Self-calibration: by comparing the dynamic measurement with the very stable and accurate internal reference, the analog -digital converter circuit automatically makes self calibration for each update temperature
  •

Detailed Technical Parameters:



Measuring media liquid, gas and steam



Measuring range

-270~800 ℃ (PT100 thermal resistor)
0~1300℃, (Thermocouple K)
Input Thermocouple, RTD, MV, Resistive sensor
Output signal 4~20mA/Hart/Profibus PA
Display LCD
Power supply range 9~45V (9~24V, Ex)
Digital Accuracy ±0.01℃, PT100 input
Internal cold end compensation error <0.25℃±0.1%/10℃



Temperature drift

±0.05%/10℃full scale range
0.1% between-10°C to 60°C
Effect of power supply on range <0.005%/V full-scale range
Long term drift <0.1/year



Ambient temperature

Ambient temperature



Storage temperature

T4 Safe operation(T6)
-40...85℃ -40...60℃ -40...95℃
Protection Class IP66/67
Relative humidity ≤98%, condensation allowed
Electromagnetic capability Accordance with EN 61 326





On-site Smart Temperature Transmitter PT100 Thermowell Profibus-Pa Protocol 0



Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
