Stainless Steel Pressure Switch with OLED Display with PNP Output

Stainless Steel Pressure Switch with OLED Display with PNP Output
Stainless Steel Pressure Switch with OLED Display with PNP Output Stainless Steel Pressure Switch with OLED Display with PNP Output Stainless Steel Pressure Switch with OLED Display with PNP Output

Large Image :  Stainless Steel Pressure Switch with OLED Display with PNP Output

Product Details:
Place of Origin: Hefei, CN
Brand Name: WNK
Certification: SGS, ISO9001
Model Number: SPS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Packaging details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Output: 4...20mA Or 0...5V+PNP+MODBUS Measuring Range: -0.1...0.1MPa To 60MPa
Accuracy: ≤0.5%FS Long-term Stability: ±0.3%FS/year
Power Supply: 12...30V DC Display: OLED
Working Temperature: -30~80 Deg C Media Temperature: -30~80 Deg C
Housing Material: SS304 Easy Installation: Housing Against Process Connection Rotatable 330°
Application: Oil&gas, Petrol, Petrochemical, Chemical Industry, Metallurgy, Pharmacy Ingress Protection Level: IP65
OEM Service: OEM, ODM
High Light:

liquid level control switch

,

stainless steel pressure switch


Smart Electronic Pressure Switch with 4~20mA+PNP Output

SPS pressure switch offers pressure monitoring and control in liquid and gaseous media. The SPS is applied in general industrial applications such as in mechanical manufacturing, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.



Whole stainless steel housing and the core high accuracy diffused silicon pressure sensor ensure good accuracy measurement of excellent long-term stability. WNK SPS has various functions including current or voltage + PNP +MODBUS outputs, NO &NC function, switch delay, OLED display, display turnable 180° and so on, providing easy installation and pressure control.



Quick Information:

  • PNP switching, voltage and current outputs
  • Switching points settable
  • Switching can be set normally open / normally closed
  • Analog output span settable
  • Offering Switching delay function
  • Support MODBUS
  • Displaying pressure peak value and environment temperature
  • Various analog output ways available
  • OLED display
  • Display turnable 180°
  • Housing with electrical connection against process connection rotatable 330°

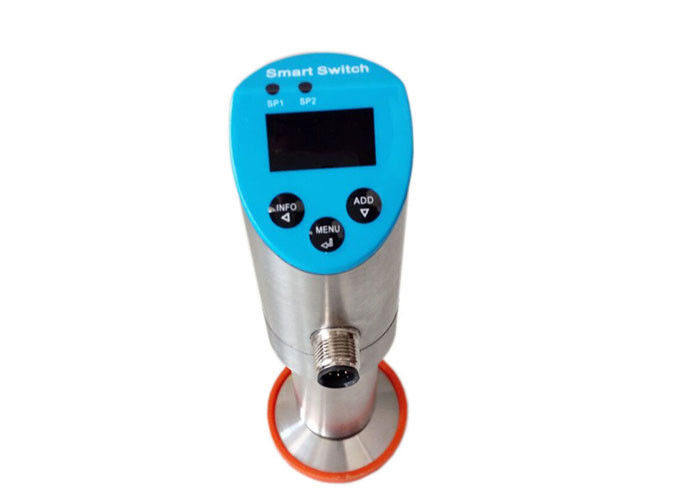

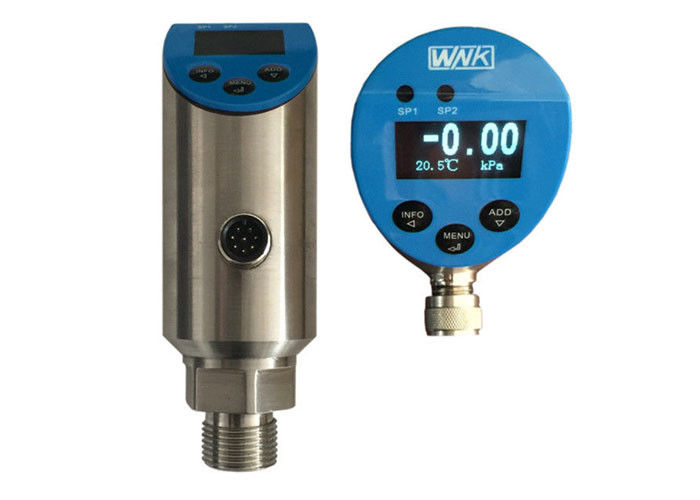

 Stainless Steel Pressure Switch with OLED Display with PNP Output 0Stainless Steel Pressure Switch with OLED Display with PNP Output 1
Detailed Technical Info:


Product name Electronic Smart Pressure Switch
Measuring range -0.10.1MPa to 60MPa
Measuring media Gas & Fluid
Accuracy ≤0.5%FS
Supply power 1230V DC
Temp. error ±0.02%FS/ºC(Zero/ Full Span)
Long-term stability ±0.3%FS/Year
Analog output accuracy ≤±0.2%FS
Output configurations 2×PNP + 0V~5VDC/10VDC + MODBUS
2×PNP + 0mA/4mA~20mADC + MODBUS
Switch current 1.0A(Max.)
Switching type Normally open / closed (settable)
Switching reponce time <10ms
Swith delay 0.00s~1000.0s
Switching motion mode Delay or windows mode
Analog signal output and max ohmic load RL Current output 0/4...20mA, 20...4mA RL≤0.5k
Voltage output 0...5/10v, 5/10...0v RL>10k
Screen display OLED
Menu language Chinese and English
Switch indicating 2 Red LED
Displaying units psi,bar,mbar,Pa,kPa,MPa
Buttons 3 blue back-lighted touch buttons
Supplementary variables displaying Environment temperature, analog output value, max peak value,mini peak value
Supplementary variables displaying way Fixed displaying or switch display by INFO button
Working temperature -30-80ºC
Media temperature -30-80ºC
Storage temperature -40ºC~80ºC
Electromagnetism compatible GB/T 17626.2/3/4-2006
Shock resistance ≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
Vibration resistance ≤50g/11ms(IEC 60068-2-27-2008)
Protection class IP65



Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
