Product Details:
Payment & Shipping Terms:
|
| Pressure Range: | 0-60Mpa | Accuracy: | 0.5 |
|---|---|---|---|
| Output: | 4~20mA, I2C, SPI, 0.2-2.9V, 0.5-4.5V And Customization | Ingress Protection: | IP65 IP67 |
| Respond Time: | ≥1ms | Overload Pressure: | 3-5 Times |
| Material: | 304SS | Sensor Type: | Eramic Capacitive Sensor, Diffused Silicon Sensor |
| Working Temperature: | -40 -135C | ||
| High Light: | i2c pressure sensor,oem pressure sensor |
||

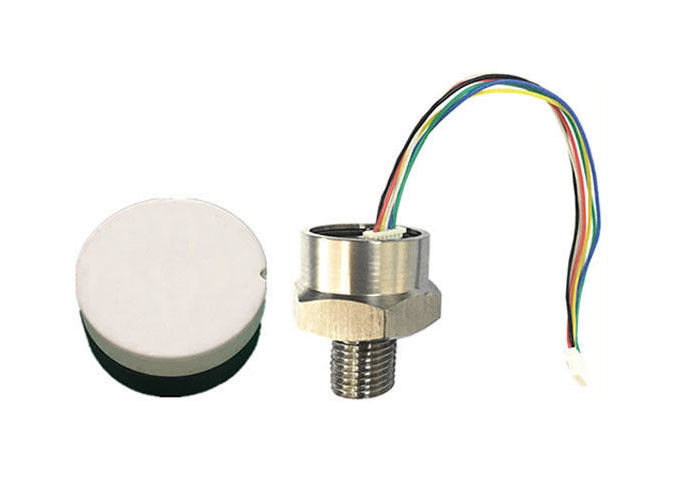

Low Cost 3.3V Power Digital SPI, I2C Output IOT Pressure Sensor
WNK has 13-year experience of research, development, production and sales of sensors. With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.
Our sensor outputs including 4~20mA, SPI, I²C, 0.2~2.9V, 1~5V, 0~5V, 0.5~4.5V, 0~10v and etc. And OEM, ODM & customization service are available for this product.
Features :
1. Temperature range: -40 to 70ºC;
2. Wide operation temperature range -40~125ºC;
3. High performance ceramic capacitive pressure sensor;
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available;
5. Small dimensions, dimension customizble;
6. Optional packard, M12, Small Hirschman connectors;
7. OEM, ODM, customization service available;
Technical Data
| Low Cost 3.3V Power Digital SPI, I2C Output IOT Pressure Sensor | ||||
| Pressure range | 0~60MPa | |||
| Pressure type | Gauge, Absolute, Sealing gauge | |||
| Overpressure | 300%F.S. (≤70kPa) 200%F.S.(≤25MPa) | |||
| Output signals | 0.2-2.9V, SPI, I2C, 0.5-4.5V, 1-5V, 0-5V, 0~10V, 4~20mA | |||
| Accuracy | ±0.5%FS, ±1%FS | |||
| Compensation Temp. | -20~70℃ | |||
| Operation Temp. | -40~125℃ | |||
| Storage Temp. | -40~125℃ | |||
| Zero Temp. Drift | ±1.5%FS Max (-20~85℃) | |||
| Full Scale Temp. Drift | ±1.5%FS Max (-20~85℃) | |||
| Pressure Connection | G1/4, 7/16-SAE, NPT, and other outputs | |||
| Ingress Protection | IP67 IP65 | |||
| Housing | SS316, SS304 | |||
Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to most of the EU countries, North America, South East Aisia and other countries and regions.
