Product Details:
Payment & Shipping Terms:
|
| Pressure Range: | -1bar - 60Mpa | Output: | I2C, SPI, 0.5-4.5V, 4-20ma And Customization |
|---|---|---|---|
| Respond Time: | ≥1ms | Overload Pressure: | 3 Times |
| Material: | 304SS | Sensor Type: | Ioc Pressure Sensor |
| Ambient Temperature: | -40 -70C | Warranty: | 12-18 Months |
| Accuracy: | 0.25%FS, 0.5%FS 1.0%FS | IP Protection: | IP65, IP67 |
| High Light: | water level pressure sensor,i2c pressure sensor |
||
Description

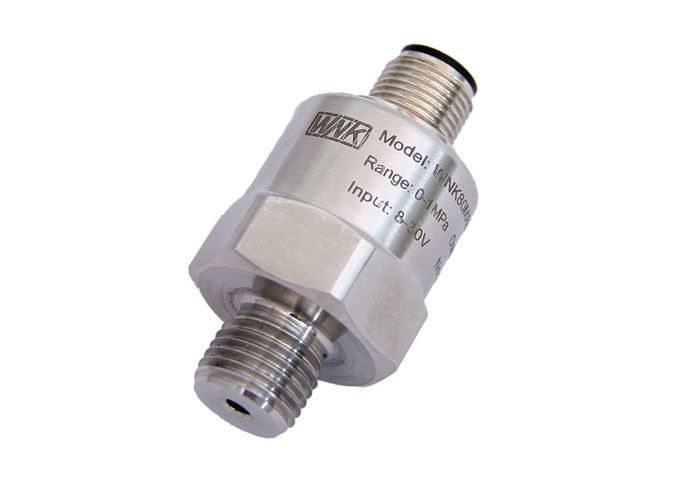

WNK80MA integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably
Our sensor outputs including 4~20mA, SPI, I²C, 0.2~2.9V, 1~5V, 0~5V, 0.5~4.5V, 0~10v and etc. And OEM, ODM & customization service are available for this product.
Applications
|
- Automobile, Compressor and Refrigeration Industry |
|
- Engineering machinery |
|
- Pressure control and monitor |
|
- Water treatment system |
|
- Hydraulic and Pneumatics |
|
- HAVC and BAS Control |
|
- Pump, fitness equipment, household appliances |
|
- Factory Automation |
|
- Fluid Control and Instrumentation Systems |
Features :
1. Temperature range: -20 to 85℃
2. Wide operation temperature range -40~125℃
3. High performance ceramic capacitive pressure sensor
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available
5. Small dimensions, dimension customizble
6. Optional packard, M12, Small Hirschman connectors
7. OEM, ODM, customization service available
8. Process connector: G1/4, M12*1.5, 1/4NPT, 7/16-20UNF female
Technical Data
|
IOT Pressure Sensor |
||||
|
Pressure range |
-100kpa~70MPa |
|||
|
Pressure type |
Gauge, Absolute, Seal, Vacuum |
|||
|
Overpressure |
300%F.S. (≤70kPa) 200%F.S.(≤25MPa) |
|||
|
Output signals |
0.2-2.9V, SPI, I2C, 0.5-4.5V, 1-5V, 0-5V, 0~10V, 4~20mA |
|||
|
Accuracy |
±0.5%FS, ±1%FS |
|||
|
Compensation Temp. |
-20~70℃ |
|||
|
Operation Temp. |
-40~125℃ |
|||
|
Storage Temp. |
-40~125℃ |
|||
|
Zero Temp. Drift |
±1.5%FS Max (-20~85℃) |
|||
|
Full Scale Temp. Drift |
±1.5%FS Max (-20~85℃) |
|||
|
Pressure Connection |
G1/4, 7/16-SAE, NPT, and other outputs |
|||
|
Ingress Protection |
IP67 |
|||
|
Housing |
SS316, SS304 |
|||
Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs supported I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other
6. Our products have been exported to most of the EU countries, North America, South East Aisia and other countries and regions.
Our company
WNK has 13-year experience of research, development, production and sales of sensors. With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.
After two years of research, development and repeatedly testings, our ceramic capacitive sensors have entered big quantity production stage. For different applications and installation methods, we offer OEM, ODM and customization services.
