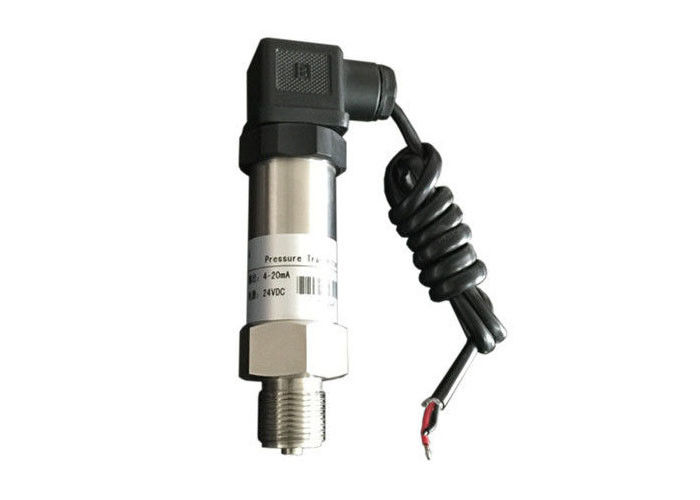

Stainless Steel 4-20mA Gas Pressure Sensor for HVAC Air Compressor

Stainless Steel 4-20mA Gas Pressure Sensor for HVAC Air Compressor

air pressure transmitter

mini pressure sensor

Place of Origin:

ANHUI, CHINA

Brand Name:

WNK

Certification:

ISO,Exia

Model Number:

WNK805

Contact Us
Request A Quote
Product Details
Measure Media:
Liquid, Gas And Steam
Output Signals:
4~20mA, 1-5V
Accuracy:
0.2%, 0.25%, 0.5%,
Pressure Range:
-100KPa~0, 0-10kPa, 100kPa......70MPa
Protection Class:
IP65
Housing Material:
304SST, 316SST
Power Supply:
10.5~30V DC
Application:
Pressure Measurement
Display:
LED (optional)
Diaphragm:
316L
Highlight:

air pressure transmitter

,

mini pressure sensor

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
standard export carton packing
Delivery Time
3~5 working days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
200 set/day
Product Description

Stainless Steel 4-20mA Air Pressure Sensor for HVAC Air Compressor



Wnk805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably



Application
It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media, it can also be used for level measurement


Technical data

Applicable media Liquid, Gas, Steam
Pressure range -100KPa~0, 0-0.2~-100kPa, 0-0.2~1000kpa, -1bar ~70MPa
Pressure measurment Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Accuracy 0.2, 0.5
Stability ±0.25% FS/year
Zero drift 50% of full range span.
Max overload 200% of sensor range
Output signals 4~20mA, 1-5V, 0-5V, 0.5-4.5V  for optional
Display LED (Optional)
Housing material 304 stainless steel
Mechanical connection M20×1.5; 1/2-18NPT, 1/4NPT, Customize, G1/2 Flush diaphragm, Clamp
Power supply Non-explosion: 10.5~45V DC
EEX ia:10.5~30 V DC
Ambient temperature -40~85℃
Process temperature -40~85℃
Compensation temperature -10~70℃





Dimension

Stainless Steel 4-20mA Gas Pressure Sensor for HVAC Air Compressor 0







Stainless Steel 4-20mA Gas Pressure Sensor for HVAC Air Compressor 1
