Product Details:
Payment & Shipping Terms:
|
| Measure Media: | Liquid, Gas And Steam | Output Signals: | 4~20mA, 1-5V |
|---|---|---|---|
| Accuracy: | 0.2%, 0.25%, 0.5%, | Pressure Range: | -100KPa~0, 0-10kPa, 100kPa......70MPa |
| Protection Class: | IP65 | Housing Material: | 304SST, 316SST |
| Power Supply: | 10.5~30V DC | Application: | Pressure Measurement |
| Display: | LED (optional) | Diaphragm: | 316L |
| High Light: | smart type pressure transmitter,digital pressure transmitter |
||

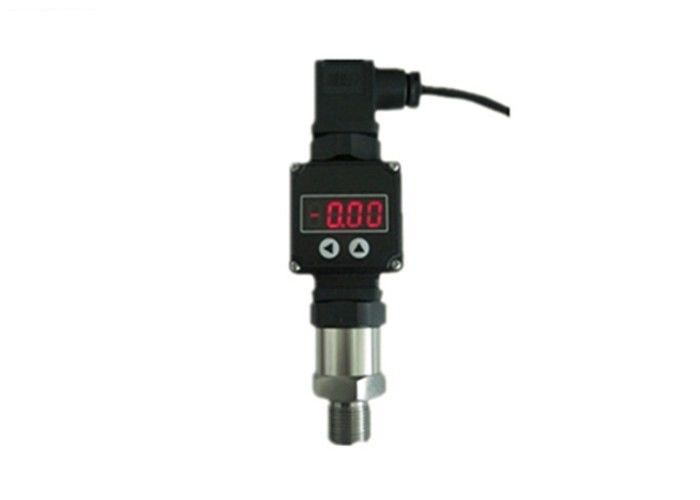

LED Display Smart Pressure Transmitter with 4-20mA 1-5V Output
Wnk805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably, with LED display, so user can also make calibration on site.
Application
It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media, it can also be used for level measurement
Technical data
| Applicable media | Liquid, Gas, Steam |
| Pressure range | -100KPa~0, 0-0.2~-100kPa, 0-0.2~1000kpa, -1bar ~70MPa |
| Pressure measurment | Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure |
| Accuracy | 0.2, 0.5 |
| Stability | ±0.25% FS/year |
| Zero drift | 50% of full range span. |
| Max overload | 200% of sensor range |
| Output signals | 4~20mA, 1-5V |
| Display | LED |
| Housing material | 304 stainless steel |
| Mechanical connection | M20×1.5; 1/2-18NPT, 1/4NPT, Customize, G1/2 Flush diaphragm, Clamp |
| Power supply | Non-explosion: 10.5~45V DC |
| EEX ia:10.5～30 V DC | |
| Ambient temperature | －40～85℃ |
| Process temperature | －40～85℃ |
| Compensation temperature | －10～70℃ |
Dimension
1. Our products are all calibrated before shipment.
2. 100% of all products we do temperature compensation and aging test before shipment.
