Product Details:
Payment & Shipping Terms:
|
| Accuracy: | 0.2%, 0.5% , 1.0% FS | Pressure Range:: | -10Kpa ~ 60MPa |
|---|---|---|---|
| Power Supply:: | 24VDC 12VDC 5VDC 8-30VDC | Material: | 304 SS, 316L |
| Media: | Water, Liquid | Type: | Level |
| IP Rating:: | IP68 | Ex-Proof: | Exia CT4 |
| High Light: | stainless steel level sensor,liquid level sensor,304 SS Material Submersible Level Sensor |
||

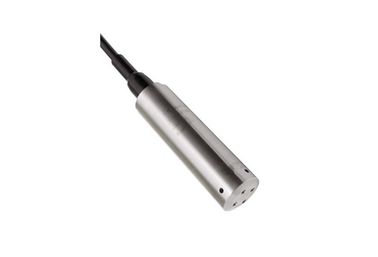

Input Type Hydrostatic Submersible Level Sensor with 4-20mA 1-5V Output
Product Description
Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
Applications
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
Specifications
| Output | 4~20mA, 0-10mA, 0-5V, 1-5V, 0.5-4.5V , customization |
| Level range | 0-0.5~200mH2O |
| Overload | 150% of sensor range |
| Measuring medium | Liquid |
| Accuracy | ±0.2%FS, ±0.5%FS |
| Stability | 0.25%FS/ year |
| Housing material | Stainless steel |
| Cable material | Polyvinyl Fluoride, PTFE |
| Power Supply | 24VDC |
| Ambient temperature | -20~85℃ |
| Process temperature | -20~85℃ |
| Compensation temperature | -20~85℃ |
| Protection class | IP68 |
Ordering Code
